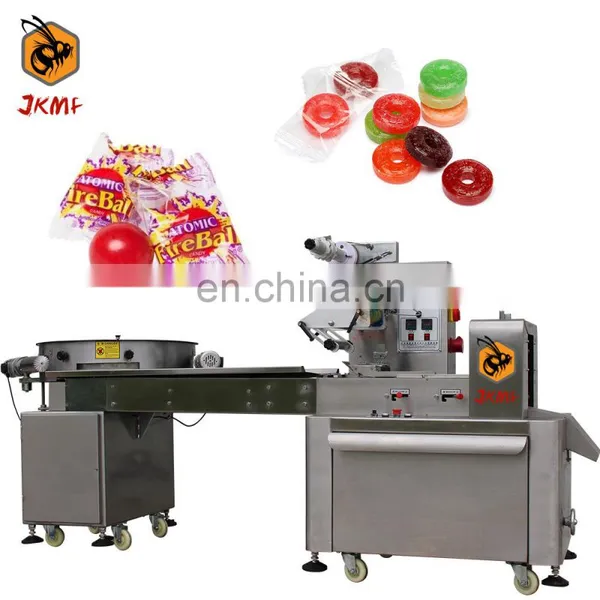

500bags/min JKMF High Speed Candy Pillow Packaging Machine For Hard Candy Toffee Packing Machine Chocolate Ball Packing Machine

Name: 500bags/min JKMF High Speed Candy Pillow Packaging Machine For Hard Candy Toffee Packing Machine Chocolate Ball Packing Machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

500bags/min JKMF High Speed Candy Pillow Packaging Machine For Hard Candy Toffee Packing Machine Chocolate Ball Packing Machine

Machine Introduction

The JKMF flow packing machine features quick, easy changeover and adjustment that minimizes product and film waste and reduces maintenance costs. The machine working starts with a cylindrical roll of film. The flow wrapping machine will transfer the film from the roll and through to the forming collar (sometimes referred to as tube or plow). At the same time, a conveyor has lined up individual products for wrapping. The film is fed through the collar and the product is surrounded with film, sealed and the film is then cut. The finished individual product is then gathered downstream to be bagged or cartoned prior to boxing and palletizing.

This is a flow packing machine specially customized for sweet food & candy.

It is suitable for individual packing and multiple packing of all kinds of candy . Such as hard candy, marshmallows, gummy bears, lollipops, wave candies, pinwheels, chocolate balls, toffee, etc.

Machine Information

JKMF flow packing machine, a customized model for candy packing.

The packaging speed is fast, the efficiency is high, the packaging process is clean and hygienic, and the operation is simple.

Choose the right packaging equipment for your operation and get the highest levels of safety, shelf life, flavor retention, and appearance at every stage of production.

The process of automatic bag making, date coding, labeling, weighing, and packaging is completed at one time.

Model	JK-250B	JK-350B	JK-450B	JK-600B
Film Width	Max.250 mm	Max.350 mm	Max.450 mm	Max.600 mm
Bag Length	65~330 mm	65~330 mm	120~450 mm	130~600 mm
Bag Width	30~110 mm	50~160 mm	60~210 mm	60~280 mm
Product Height	Max. 40/55 mm	Max. 45/80 mm	Max. 110 mm	Max. 110 mm
Packing Speed	40~230 bags/min	40~230 bags/min	30~180 bags/min	20~150 bags/min
Machine Size(mm)	37006701450	37707201450	39909001468	399010001468
Machine Weight	450KG	500KG	550KG	800KG
Machine Voltage	220V, 50/60 Hz
Machine Power	2.4KW	2.8KW	3.2KW	4KW

Main Features

1.Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
2.Interface features easy and quick setting and operation.
3.Self failure diagnosis, clear failure display.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Positioned stop function, without sticking knife or wasting film.
7.Simple driving system, reliable working, convenient maintenance.
8.All control is realized through software, easy for function adjusting and technical upgrade.

Machine Details

Machine Control Center

The packaging parameters setting is set on the HMI screen (human machine interface).

A pulse is generated for machine movement, and this is transferred to the PLC (programmable logic controller).

Including packaging size, packaging speed, etc.

High Speed Turntable Feeding Device

The contact surface is made of food-grade 304 stainless steel, and 3 independent motor-driven brushes assist the automatic feeding of the product.

Film Holder

With Date Printer

When the HFFS packaging machine is operating, the film is usually pulled off the roll by film transport belts, which are positioned to the side of the forming tube which is located at the front of the machine.

A date printer can be installed on the film holder, so that the production date and other information can be printed on the colleague of the packaging.

Replaceable Bag Former

The film enters a forming tube assembly.

As it crests the shoulder (collar) on the forming tube, it is folded around the tube so that the end result is a length of film with the two outer edges of the film overlapping each other.

Middle Bag Heat Sealing Device

The horizontal seal bar, which is hot, moves forward and makes contact with the horizontal overlap on the film, bonding the layers of film together.

Bag Heat Sealing Cutting Device

A set of heated horizontal sealing jaws come together to make the top seal of one bag and the bottom seal of the next bag. While the sealing jaws are closed, the product that is being packaged is dropped down the middle of the hollow forming tube and filled into the bag. This is a complete packaging process, you will get the perfect packaging finished product.

If your product needs to be filled with nitrogen to ensure the freshness of the product, then you need to purchase a set of nitrogen production equipment. In addition, our machines can also be equipped with labeling machines, date coding machines, etc. to meet your production needs.

Why Choose Us

JIKE BEE MACHINERY has a professional team to provide customers with various packaging solutions. Fully understanding the needs of customers,engineers design the most suitable solution. We have our own processing and assembly workshop and quality inspection and debugging process to ensure the quality of the machine.

After acceptance by the customer, they are packed in international standard wooden cases and shipped.

The machine has more than 10 advanced patented technologies, CE certificate, ISO9001 certification, etc.

We will package the machine's instruction manual and a USB flash drive with machine operation videos together with the machine.
Ensure that you can use the machine as soon as you receive it. If you have something you don't understand, our after-sales team will also help you answer in time.

Our customers have covered more than 80 countries around the world.

And give us unanimous praise.

Company Profile

Foshan Jike Bee Automation Equipment Co., Ltd. is a manufacturer of automatic packaging equipment.We are a production-oriented enterprises focused on product innovation, factory direct sales and perfect after-sales service in one.

Mainly applicable to: food, hardware, drugs, daily chemicals, pesticides, fruits and vegetables, cosmetics, other industries.The company has its own patent and product technical certification, which can bring customers high quality equipment and worthy of customer trust.

FAQ

Q1:Do you have manual or operation video for us to know more about the machine? Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.

Q2:How can I trust you for the first time business ? Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.

Q3:Is engineer available to serve oversea? Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q4:How can we make sure about the machine quality after we put the order? Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.

Q5:Will you provides the door to door service? Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
