Home > Products > VFFS Bagging Machine > Foshan Automatic Multilane Liquid Sachet Packing Machine Multilane Powder Stick Packing Machine
Foshan Automatic Multilane Liquid Sachet Packing Machine Multilane Powder Stick Packing Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Automatic Salt and Pepper Packing Machine 2g 3g 5g Sugar Stick Salt Sachet Packing Machine Small Sugar Sachet Packing Machine
-
Factory Price Full Automatic Weighing Rice and Sugar Bag Packing Machine for Sugar Cube Bag 1kg Sugar Packing Machine
-
Full Automatic Weighing Vegetable Salad Packing Machine for Lettuce Packing Machine Cauliflower Packing Machine
-
Factory Sales Vertical Food Vacuum Packing Machine for Food Fish Meat Ball Packing Machine Ground Coffee Packing Machine
-
Full Automatic Food Weight Packing Machine for Chicken Nugget Gusset Bag Packing Machine Wet Noodle French Fries Packing Machine
-
Automatic Grocery Food Weight Packing Machine Groundnut Almond Oat Chocolate Bean Potato Crisps Packing Machine
Product Description

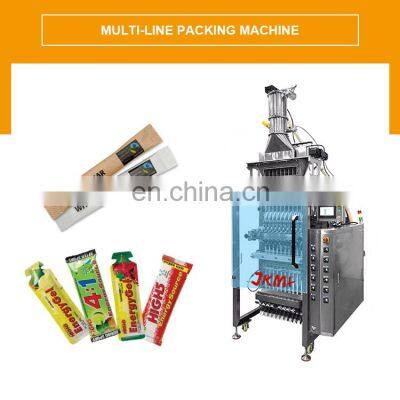

Automatic Multilane Liquid Sachet Packing Machine
Multilane Powder Stick Packing Machine
Products Description
Application
>What can this machine pack?
Suitable for packing different kinds of product.
Granule: sugar, salt, pepper, spice, snack,etc.
Bag Type
Machine Information
Model | JK280BK | JK560BK | JK840BK | ||
Lane number | 4~6 lines | 8~12 lines | 8~12 lines | ||
Filling Method | Volumetric cup | ||||
Packing speed | Max. 35 pcs/line/min | ||||
Bag size | L: 50~180 mm, W: 17~30 mm | ||||
Film width&Thickness | Max.280mm, 0.07-0.10mm | Max.560mm, 0.07-0.10mm | Max.840mm, 0.07-0.10mm | ||
Sealing type | Back sealing/Stick bag | ||||

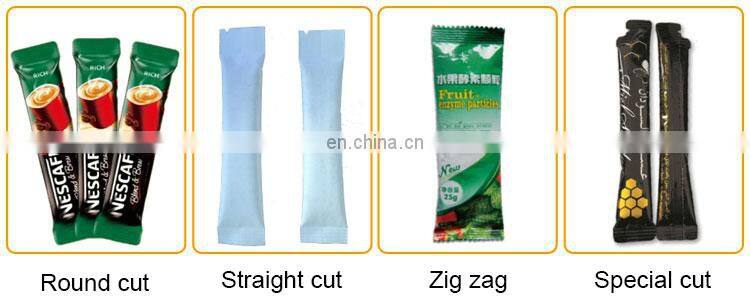

Cutting type | Straight cutting, Zig zag cutting, Round cutting, Special cutting | ||||
Air&Power | 0.8Mpa 0.8m3/min; 3.5kw | 0.8Mpa 0.8m3/min; 5.5kw | 0.8Mpa 0.8m3/min; 6.5kw | ||
Dimension&weight | 1385*918*3200mm; 350kg | 1685*1300*3500mm; 550kg | 1700*1600*3500mm; 650kg | ||
Main Features
1. Multi lanes machine can produce multi lanes bags at same time.

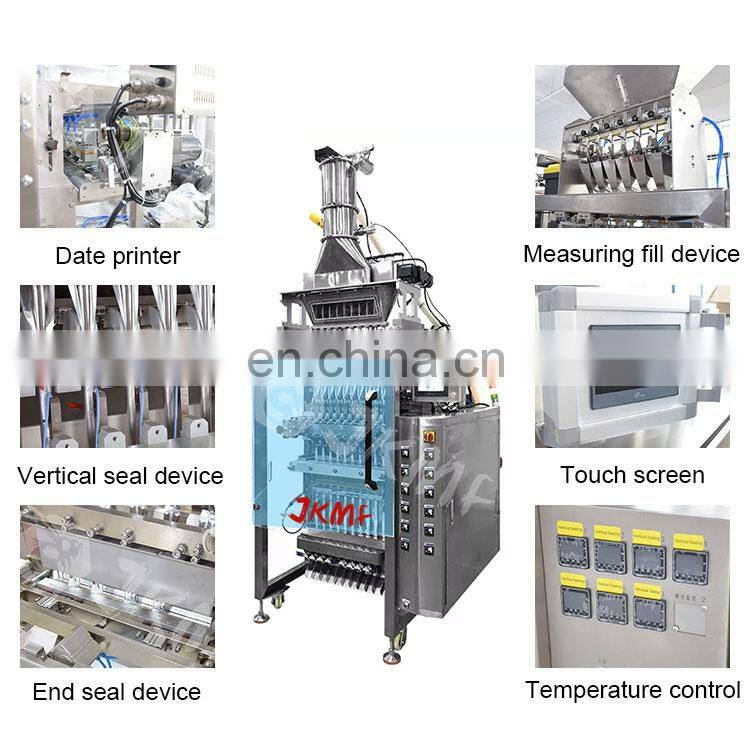

2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
6. PLC controller, high function and control the whole machine’s work steps.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
6. PLC controller, high function and control the whole machine’s work steps.
Why Choose Us
JIKE BEE MACHINERY has a professional team to provide customers with various packaging solutions. Fully understanding the needs of customers,engineers design the most suitable solution. We have our own processing and assembly workshop and quality inspection and debugging process to ensure the quality of the machine.
After acceptance by the customer, they are packed in international standard wooden cases and shipped.
Company Profile
Foshan Jike Bee Automation Equipment Co., Ltd. is a manufacturer of automatic packaging equipment.We are a production-oriented enterprises focused on product innovation, factory direct sales and perfect after-sales service in one.The automatic packaging equipment for granule, powder, liquid and sauce produced by the Jason company is at the advanced level of the industry,it can be customized production automatic material packaging line for all kinds of products .Mainly applicable to: food, hardware, drugs, daily chemicals, pesticides, fruits and vegetables, cosmetics, other industries.The company has its own patent and product technical certification, which can bring customers high quality equipment and worthy of customer trust.
Customer Photos
Our customers have covered more than 80 countries around the world.And give us unanimous praise.
Certifications
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
