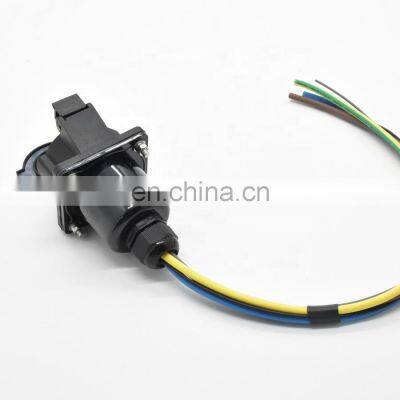

China Factory 16A 32A SAE J1772 Type 1 Vehicle Inlets 120V/240V AC EV Charger Socket With 0.5m Cable

China Factory 16A 32A SAE J1772 Type 1 Vehicle Inlets 120V/240V AC EV Charger Socket With 0.5m Cable thumbnail-1
China Factory 16A 32A SAE J1772 Type 1 Vehicle Inlets 120V/240V AC EV Charger Socket With 0.5m Cable thumbnail-2
China Factory 16A 32A SAE J1772 Type 1 Vehicle Inlets 120V/240V AC EV Charger Socket With 0.5m Cable thumbnail-3
China Factory 16A 32A SAE J1772 Type 1 Vehicle Inlets 120V/240V AC EV Charger Socket With 0.5m Cable thumbnail-4
China Factory 16A 32A SAE J1772 Type 1 Vehicle Inlets 120V/240V AC EV Charger Socket With 0.5m Cable thumbnail-5
China Factory 16A 32A SAE J1772 Type 1 Vehicle Inlets 120V/240V AC EV Charger Socket With 0.5m Cable photo-1
China Factory 16A 32A SAE J1772 Type 1 Vehicle Inlets 120V/240V AC EV Charger Socket With 0.5m Cable photo-2
China Factory 16A 32A SAE J1772 Type 1 Vehicle Inlets 120V/240V AC EV Charger Socket With 0.5m Cable photo-3
China Factory 16A 32A SAE J1772 Type 1 Vehicle Inlets 120V/240V AC EV Charger Socket With 0.5m Cable photo-4
China Factory 16A 32A SAE J1772 Type 1 Vehicle Inlets 120V/240V AC EV Charger Socket With 0.5m Cable photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1992
Annual Export Value:
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
Guangzhou Hansshow Technology Co.,Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
China Factory 16A 32A SAE J1772 Type 1 Vehicle Inlets 120V/240V AC EV Charger Socket With 0.5m Cable
Product Name
16A 32A SAE J1772 Type 1 Vehicle Inlets
Brand
Hansshow
Rated current
16A/32A
Cable specigication
3*2.5mm²+2*0.5mm² /3*6mm²+2*0.5mm²
Operation voltage
120V/240V
Insulation resistance
＞1000MΩ（DC500V）
Terminal temperature rise
＜50K
Withstand Voltage
2000V
Contact Resistance
0.5mΩ Max
Case Material
Thermoplastic,flame retardant grade UL94 V-0
Pin
Copper alloy,silver plating
Operating temperature
-30°C~+50°C
Mechanical life
no-load plug in/pull out＞10000 times
Coupled insertion force
>45N<80N


Features
1. Meet SAE J1772-2010 standard
2. Nice appearance，left flip protection,support front installation
3. Reliability of materials, antiflaming,pressure -resistant,abrasion resistance
4. Excellent protection performance,protection grade IP44(working condition)
Company Profile
Hansshow, established in 2018, is an innovative enterprise focus on research, production, sale and service of Electric tailgate, yoke steering wheel,Auto Soft door close, Real dry carbon fiber parts, Auto led taillight, Electric sliding door, Active sound system, Carplay display screen and etc.Our factory area up to 5000 square meters, stuff more than 60 people and we also have obtained C E and ROSH certificates. the company own considerable development and get proud sales results, clients come from 130 countries and nations.Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as USA, Europe, south America East-middle, Asia and other regions.
Packing & Delivery
Delivery Way:
Express shipping: DHL/Fedex/UPS/TNT;
Cargo shipping:Air Flight/Sea shipping;
Delivery Time:Delivery within 7 days after payment;

Our Services:
1.24 hours online service, please feel free to contact us.
2.Support wholesale, OEM group purchasing，Factory direct sales with good prices.
3.Over 500 installation points in 26 different countries. Send enquiry to us now. vide product installation video,Product installation engineer online technical guidance.
