10-12t/h complete coke breeze briquette production line

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Details

10-12t/h complete coke breeze briquette production line designed and supplied by sinolion company

Material: coke breeze powder

Material moisture:13%

Briquette shape and size: Oblate shape. Briquette dia:60mm

Cpacity:10-12TPH coke breeze briquette production line

Product Introduction

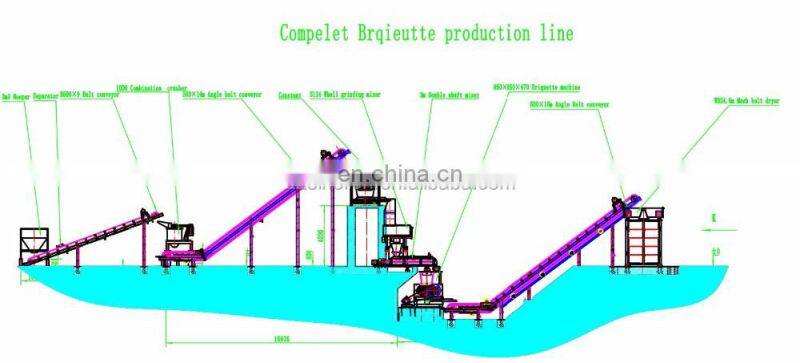

The complete coke breeze briquette production line introduce:

Complete briquettion line include machine: Material-Constant feeder- Wheel grinding mixer-Double shaft mixer-Coke breeze briquette machine- coke breeze briquette dryer (mesh belt dryer).

Product Parameters

Machine name	Specification	Quantity	Usage

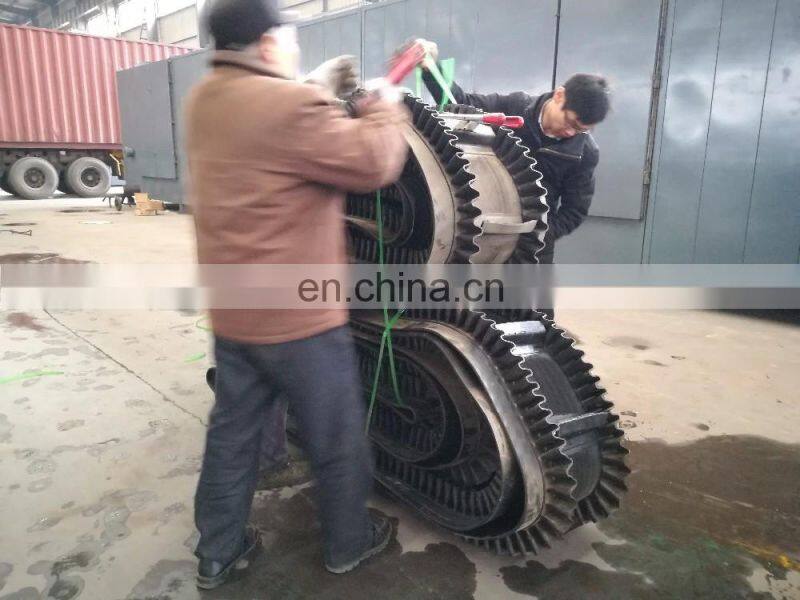

Angle belt conveyor	0.5*11m	1	Transport coke breeze powder to constant feeder
Constant feeder	PLD 800(2 Case)	1	Dosing 2 different coke breeze to one briquetting line
Distributor	-----	1	Divide material into two wheel grinding mixer machine
Wheel grinding mixer	S114	2	Mix coke breeze enough with binder
Binder mixer	Φ1.0*1.2	2	Stirring several kinds binder material to get binder for line
Double shaft mixer	3500mm	1	Mix material and binder again to confirm get good briquette
Briquette machine	XM650	1	Press coke breeze powder to briquette use press rollers
Angle belt conveyor	1.5*15m	1	Transport wet material to briquette machine
Mesh belt dryer	24.5*5 layer	1	Dry wet coke breeze briquettes to use demand
Belt conveyor	0.5*7m	1	Transport dry briquette to storage area

Main machines pictures for complete coke breeze briquette production line as below

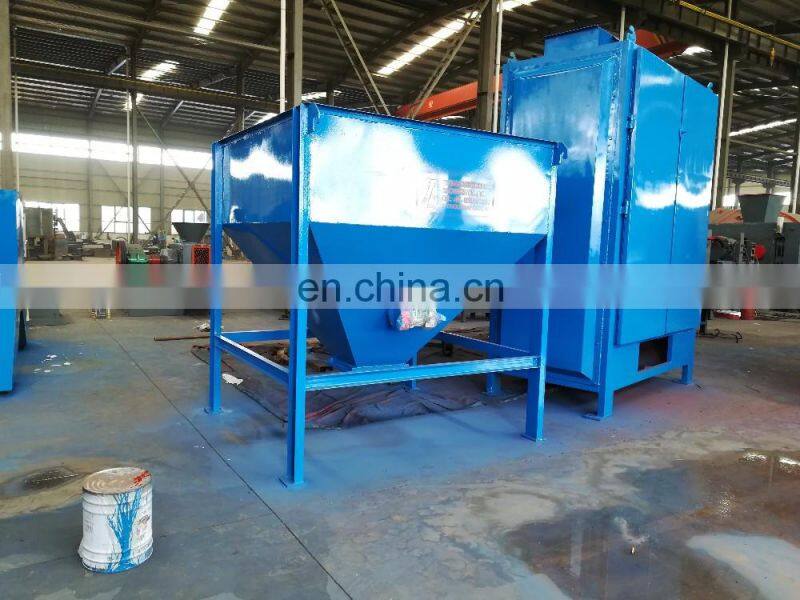

Hopper and crusher

1. Hopper

Model:3m³

Steel plate thickness:5mm/3mm

Vibration motor power:3 kw

Overall size：1900*1900*2090mm

Discharge hole:400*400mm

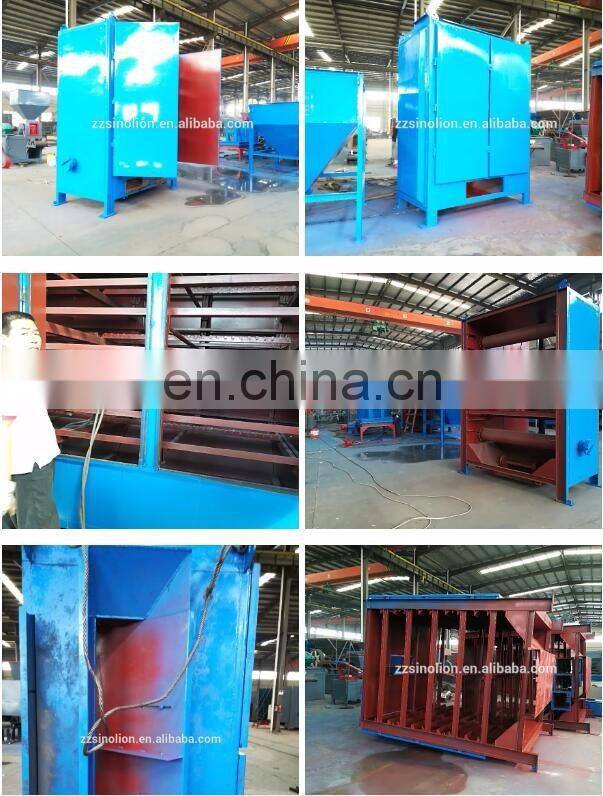

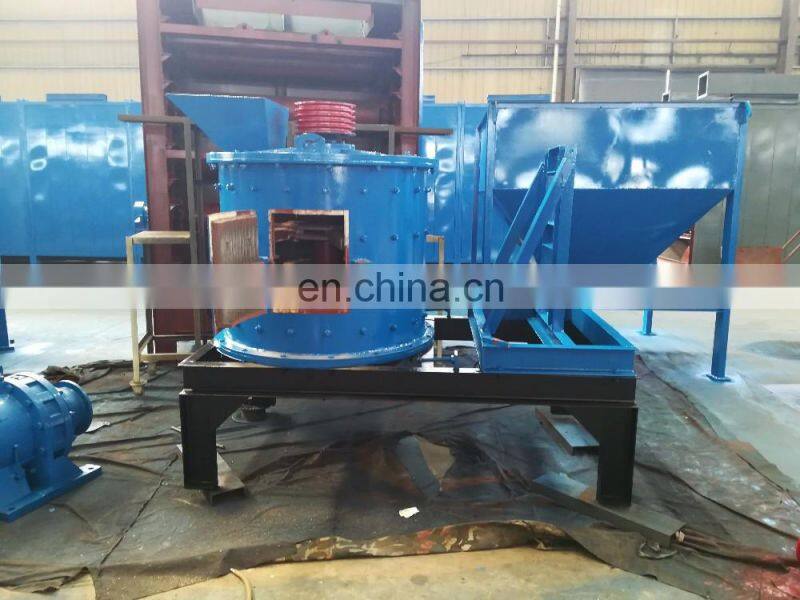

2. Combination crusher

Model: PFL-1000

Input size :≤150mm

Output size :≤5mm

Hammer material: Mn13 alloy hammer

Hammer Quantity:24 pieces

Motor power:55kw

Main shaft speed :769r/min

Overall size:2600*1400*1900mm

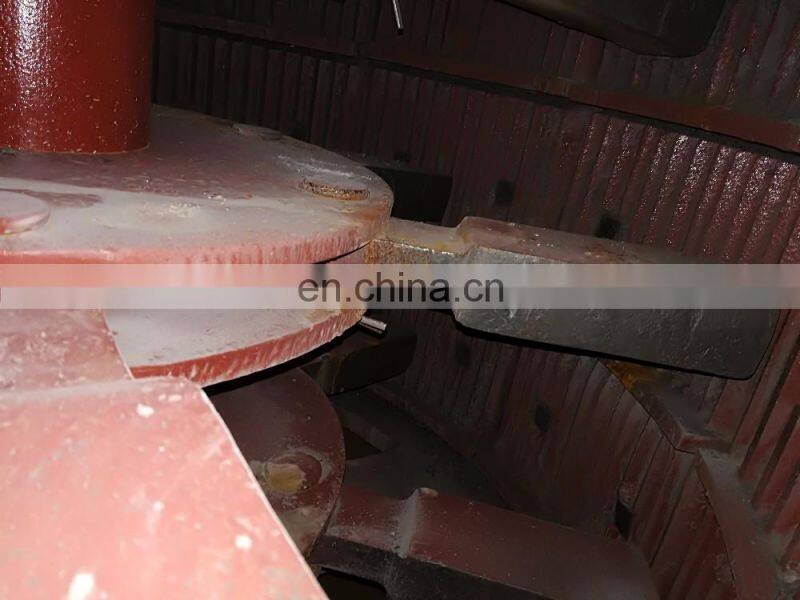

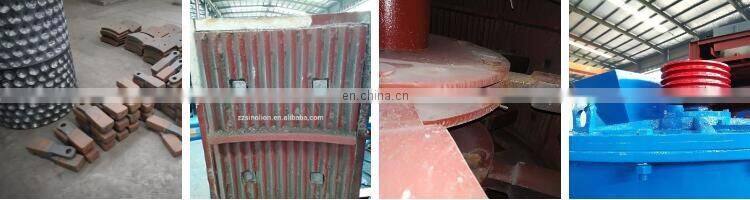

Combination crusher inside show:

Include hammers, Liners and rotor.

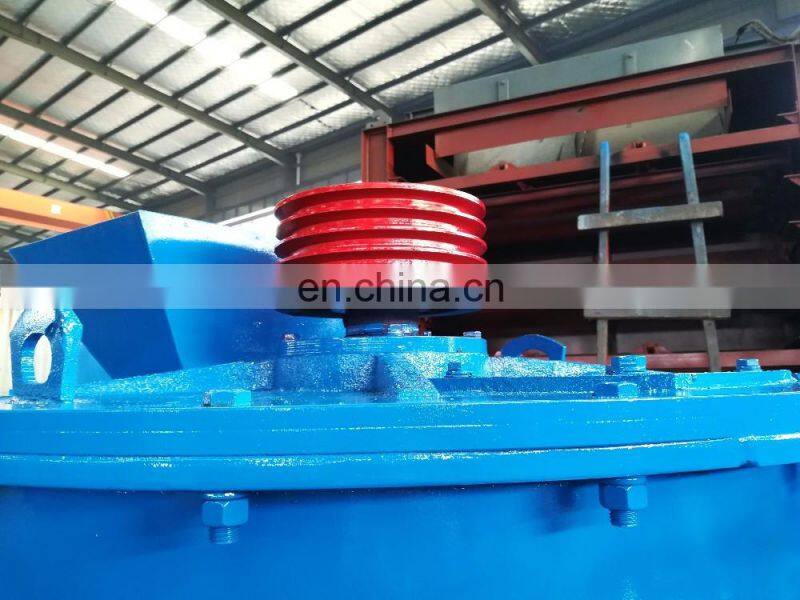

Combination crusher Pulley

It use V-belt connect motor.

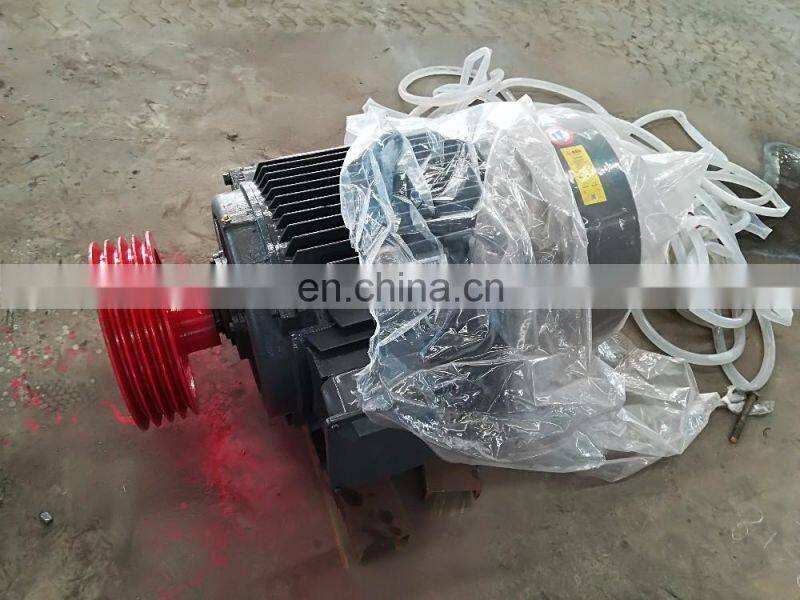

Combination crusher Motor:

Power:55kw, supply enough power.

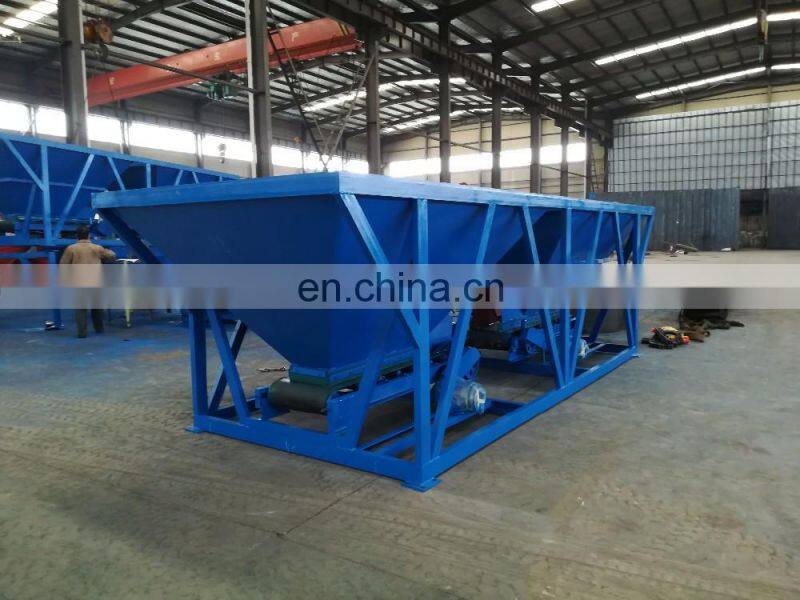

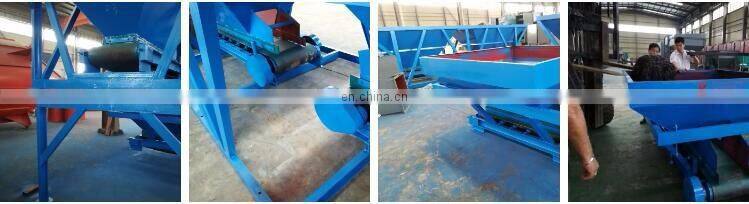

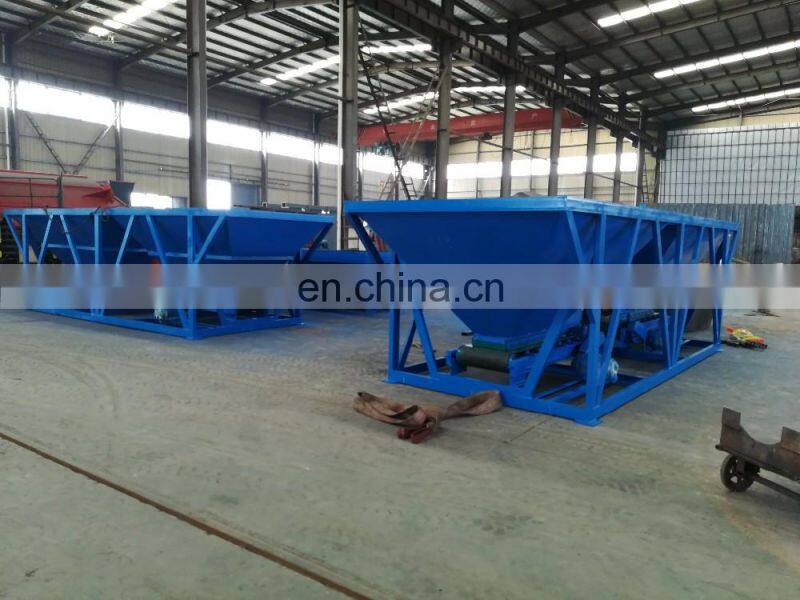

Constant feeder

3 Constant feeder

Model:PLD 800(2 Case)
Power:3-4kw

Motor quantity:3 sets
Power 3*4 Kw

Weighing bin:1set

Automatic weighing control display:1 set

Quantity 1 set

Mixer machine

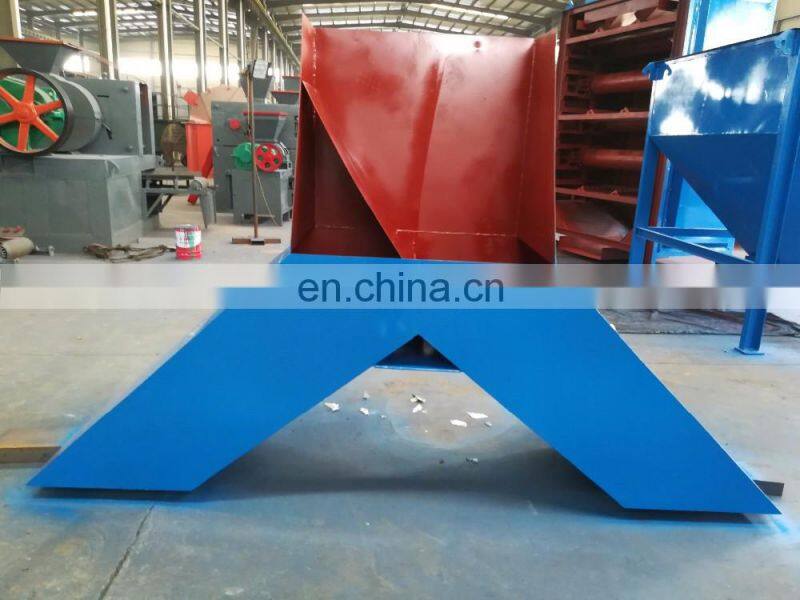

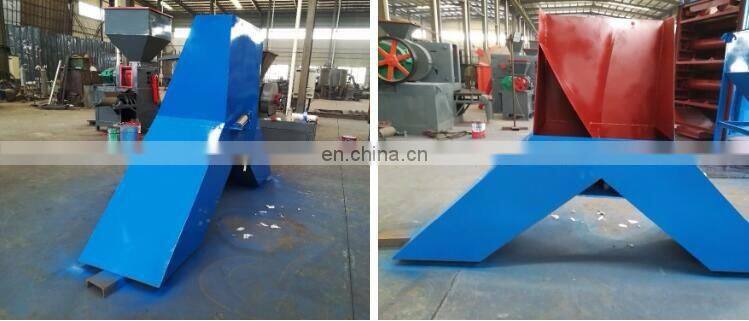

4 Distributor

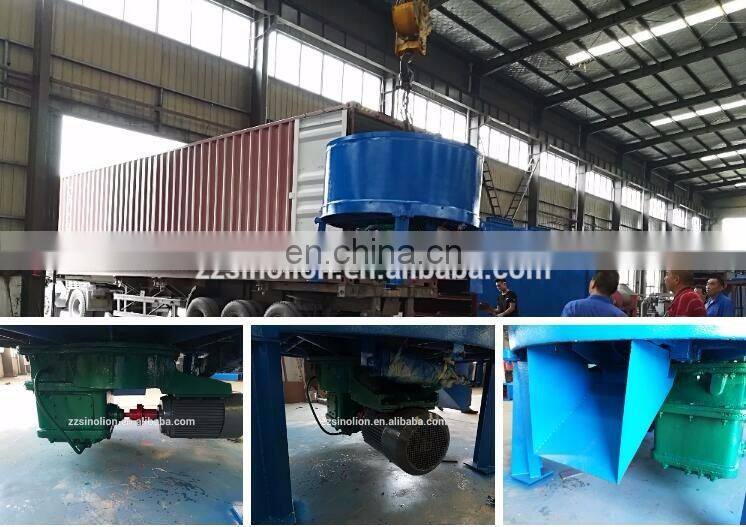

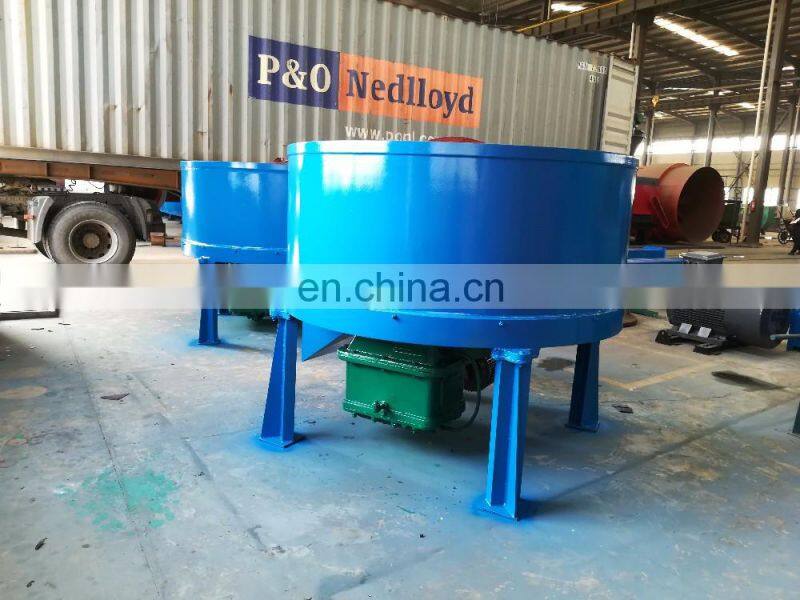

5. Wheel grinding mixer

Model :S114 Stir time 3-5min

Plate diameter 1820mm
Runner wheel diameter 750mm
Runner wheel width 240mm
Spindle speed 34r/min
Power 15KW
Overall size 2080*1882*1755 mm
Weight 3.5T Quantity 2 set

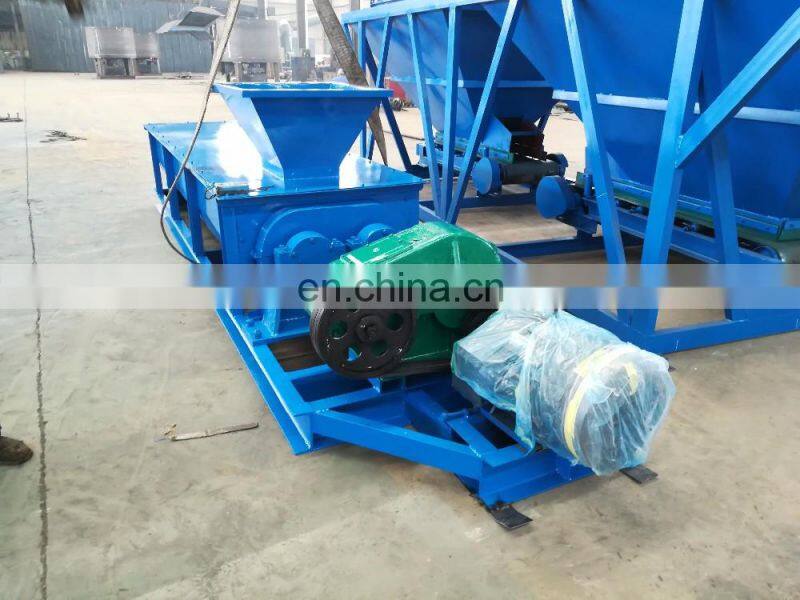

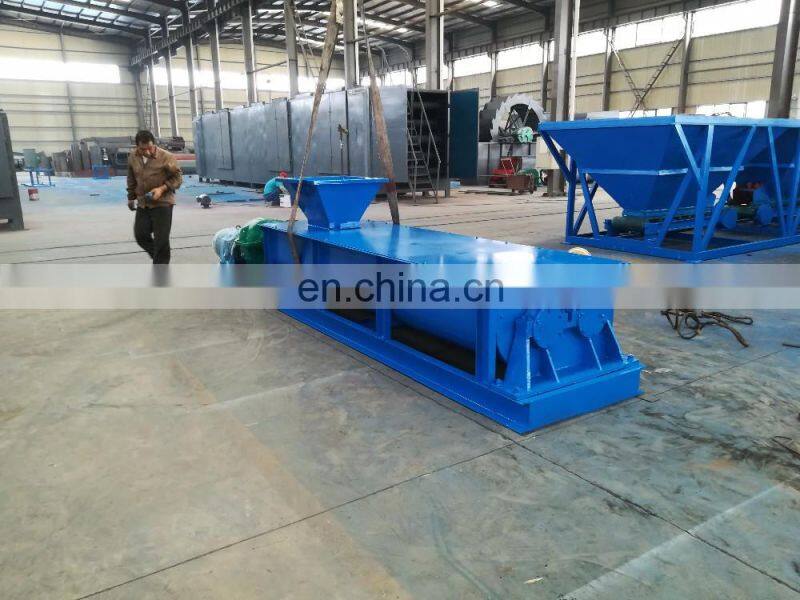

6 Double shaft mixer

Model 3m
Power 22 kw
Speed of main shaft 60r/min
Reducer ZQ400
Overall size 3680*1300*960mm
Quantity 1 set

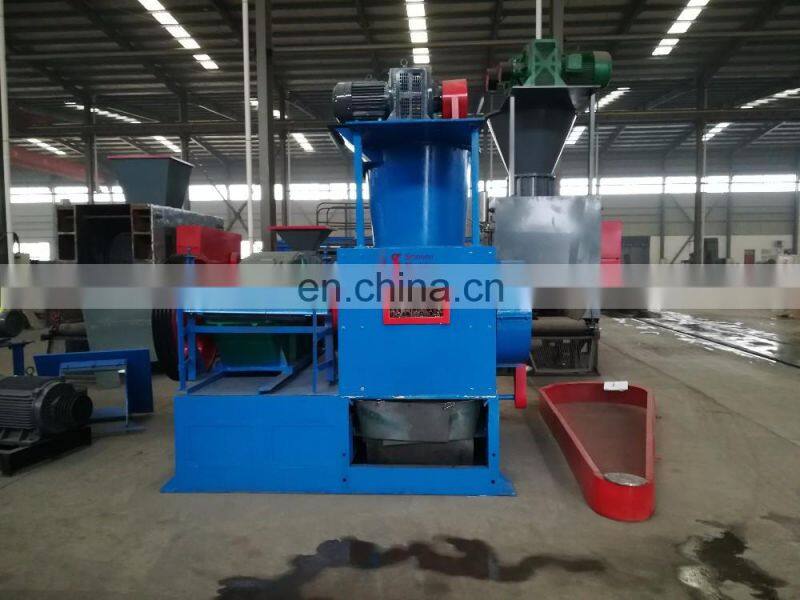

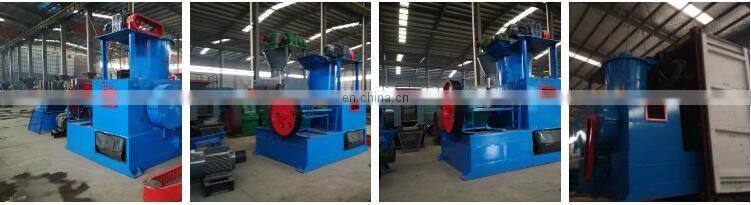

Briquette machine

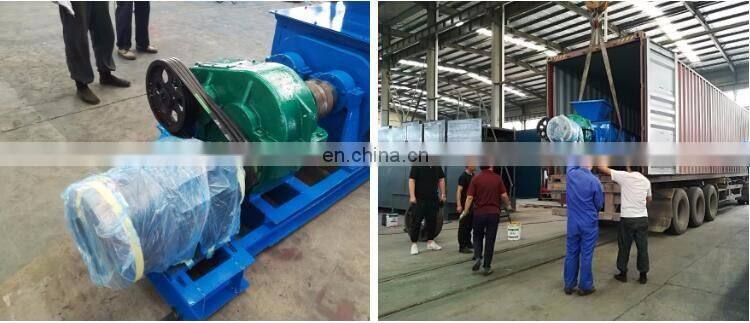

7. Briquette machine

Model 850-650-470
Motor Model :Y280S-6, power: 45 kw
Reducer Reducer type :ZQ850, Reducer ratio:37.5
Roller Φ650*470mm, Material: High chrome alloy( ZGCr15SiMn Quenching)
Main shaft speed 10-11r/min
Pro-loading system Motor: YCT200-4A, 5.5 KW(Speed adjustable ) Motor speed:1250-125r/min. Spiral type

Quantity 1 set

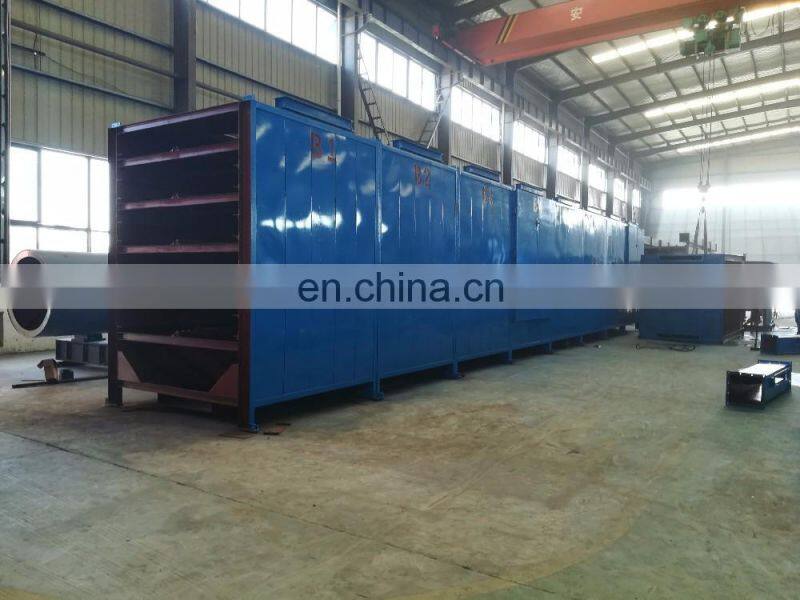

Briquette dryer

8 Coke briquette dryer

Model 24.5m*2.44m*5layer
Conveyor chain wheels 24 A; pitch 38.1,

Reducer chain wheels:50.8 pitches
Reducer Reducer type : BWED74, Reducer ratio:1:253
Motor Model: YCT200-4B, Power:7.5 kw (2 sets) Range of speed adjust:1250-125r/min
Spring length100mm; inner holeΦ82mm; thicknessΦ16
Mesh wire’s thickness Thickness:Φ3mm Wire

Quantity: 1 set
