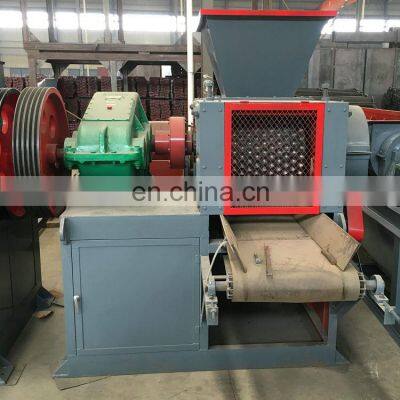

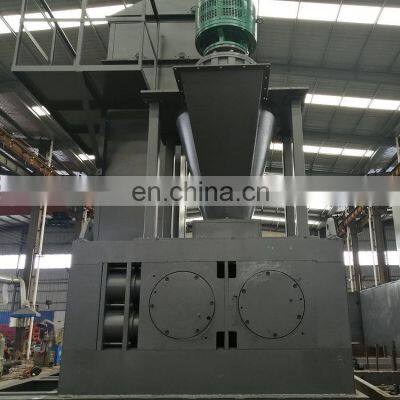

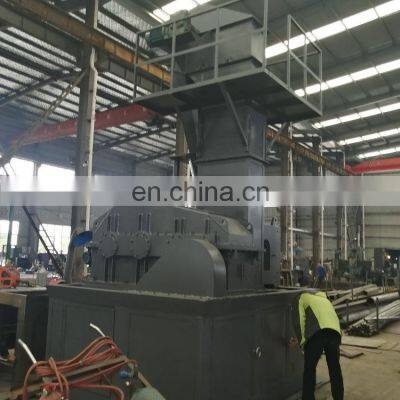

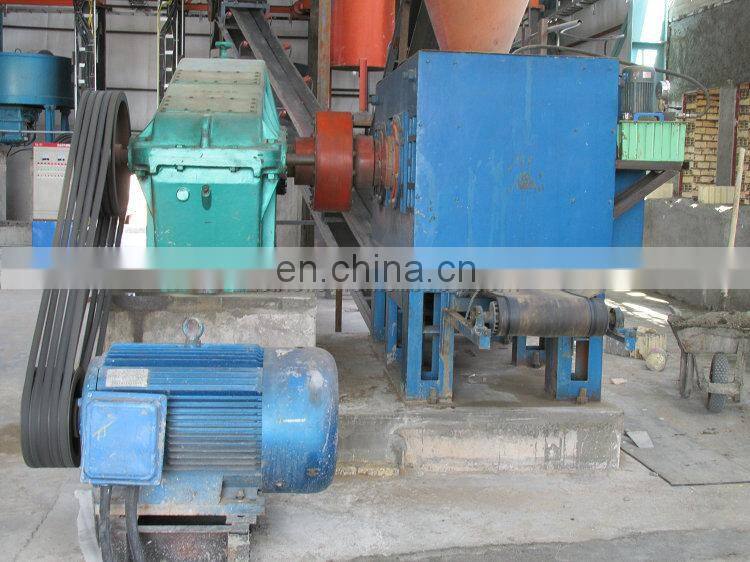

Sponge Iron Powder Briquette Machine /sponge Iron Fines Ball Press Machine / Sponge Iron Briquetting Machine

Sponge iron Briquette machine working principle

This series sponge iron briquetting machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the briquette roll mode,with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contac tpoint, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished briquette from powder.

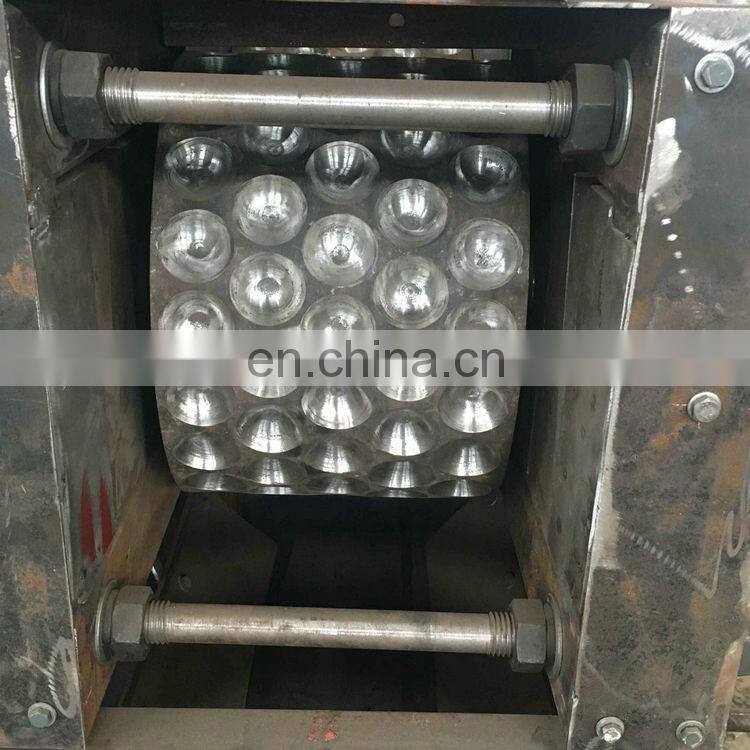

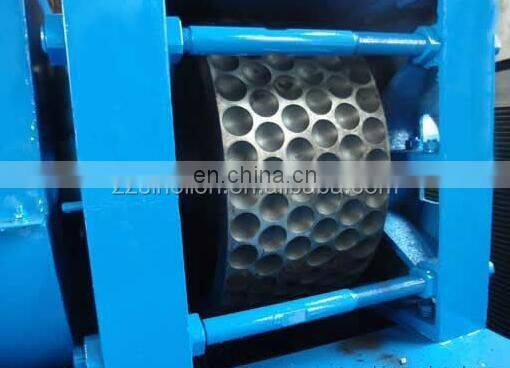

Sponge iron Briquette machine roller

Roller forming methods divided into two types whole forging and casting, when casting, the roller has low-density and structure is rough but economical, Forging is shaping depending on air beating gravity, thus very substantially increased roller density, due to high density, it has effectively improved the wear resistance and extended service life. This types roller suitable for  verious material and run reliable, is particularly suitable for materials processing briquetting.

Sponge iron Briquette Machine roller making

The diameter of roller based on sponge iron  briquette machine model, our engineer will design and choose suitable sponge iron briuqette machine according to customer's actual demands.

The sponge iron briquette shape can be oval, oblate and pillow shape etc.

The size of final sponge iron briquette between 20-75mm

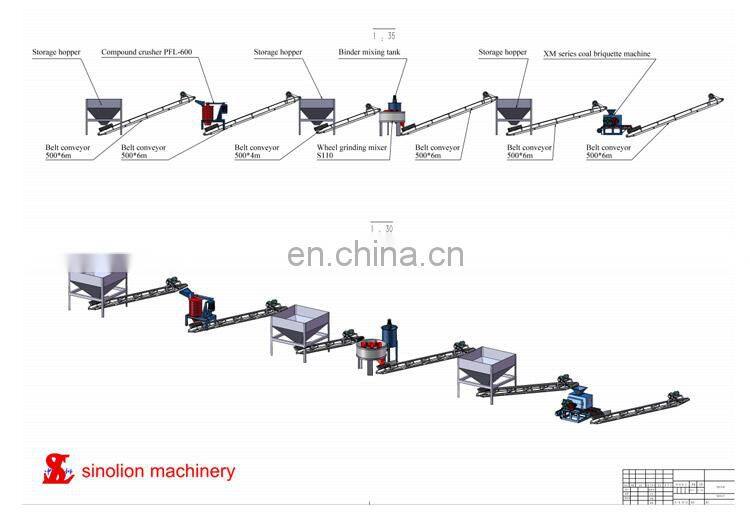

Sponge iron Briquette machine production line

Before briquetting, the raw materials should be in 0-5mm, the water content of raw materials should be 8-15%, aslo some raw materials maybe need binder in process,so in general the complete briquettes production line include Drying --- Hopper --- Crusher--- Mixer--- Briquette Machine--- Briquette--- Dryers.

Our engineer will choose which machine need in the briuqette production line together with client.

Sponge iron briquette machine application materials:

The material wich can use sponge iron briquette machine to press briquette including many industries.

Raw material size: 0-5mm

Raw material moisture:8-13%

1.Coal 2.Charcoal 3.Desulfurization Gypsum 4 charcoal
5.carbon black  6.manganese 7.light burning magnesium
8.clay pper powder 10.iron powder (fines) 11.iron oxide skin 12.mill scale 13.lime powder 14.sludge 15.silicon carbide
16.gypsum ke coal etc.
