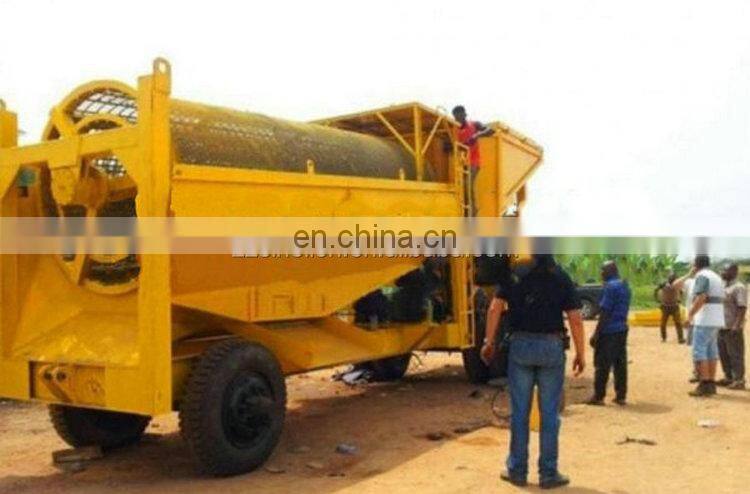

Mobile Rotary Scrubber Trommel Screen for Gravel Sand Gold Ore 10-200tph

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

The gold machine movement is very convenient and can be applied to a variety of terrain, terrain is soft sandy or hard rock, stone or more can be applied, and must also very convenient, can satisfy the development of mining while walking. This method has a good effect on a large range of sand gold mining areas, which can save more production costs and increase mining efficiency.

Outstanding Advantages::
1.Barrel of trommel screen includes infeed diverter rings for minimizing the material loss.
2.Modular replaceable screen segments according to customer requirements. Customer choose woven wire and plate per their demands.
3.Trommel screens allow access to screens for maintenance and inspection.
4.Alternative discharge belt conveyor, can supply diverse belt conveyor for discharging material of after screened.
5.The main frame of heavy steel structure is designed with components for minimizing material accumulation.
6.Heavy duty structure includes integrated leveling system, it is easy to install.
7.Nylon bristle, cleaning device can be changeable quickly and individually for minimizing downtime of equipment, and that improving efficiency.
8.Trunnion components mounted to heavy duty roller bearings to prolong service life.
9.Low stress welded, structural tubing lifter assemblies
10.Alternative feed and discharge chutes.

technical parameters

Model	Capacity (t/h)	Power (kw)	Diameter (mm)	Length (mm)	Discharge (mm)	Input (mm)	Dimension (mm)
YGTS0520	5-10	3	500	2000	0-100	≤300	3390×1100×1640
YGTS1020	20-30	4.0	1000	2000	0-100	≤300	3390×1400×2140
YGTS1225	30-50	5.5	1200	2500	0-100	≤300	4146×1600×2680
YGTS1545	50-120	11	1500	4500	0-100	≤400	8160×2300×2500
YGTS1548	80-150	15	1500	4800	0-100	≤400	8460×2300×2500
YGTS1848	100-200	15	1800	4800	0-100	≤400	8460×2300×2700
YGTS2060	200-350	30	2000	6000	0-100	≤400	9680×2300x3420

	The gold washing machine can be used for gold washing and screening. The gold washing machine offer an expanded processing capacity that rivals all competitor mobile gold wash plant trommel equipment. The gold washing machine has an average of 100-300 m³/h OR 170-510 tons per hour based upon 1.7 tons of material weight per cubic meter conversion.

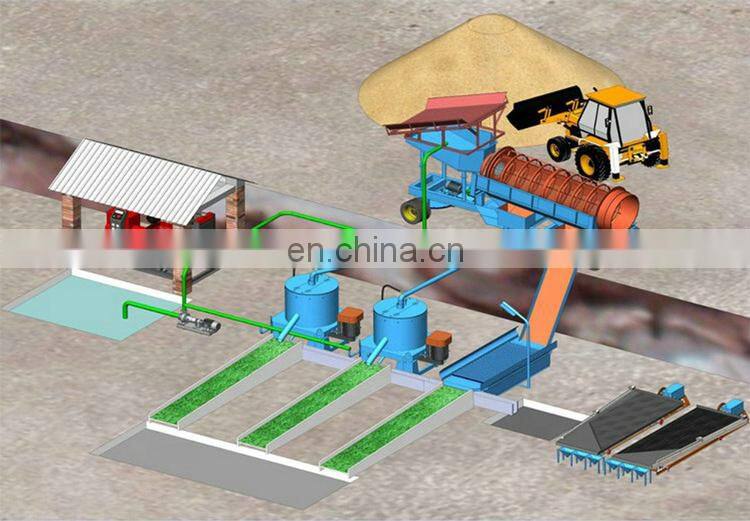

Input of raw materials Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper. Selection and cleaning of raw materials Raw materials of the gold washing machine will be cleaned and selected by the rotation of gold washing machine and by watering of the shower inside, run into the gold dust separate panel.
	Motor Brand of driving device can choose on your request. International brands like SEW, ABB, SUMITOMO, SIEMENS.China brand like Yutong,Tailong,Guomao,Taixing,Nangaochi. Powerful enclosed and compact efficient motor drive Shaft mounted and underslung gearbox reducer. Optimization YOX & YOT constant filling hydrodynamic coupling. Good balance and strong braking force Brake.
Screen mesh The mesh hole is not easy to block. Screen mesh with special material wire mesh High screening efficiency, Bold material, heavy bearing, long use time It is easy to replace the screen with a bead According to the characteristics of the screening material, a fully enclosed structure or an open structure can be selected.
	Gold washing mat Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.

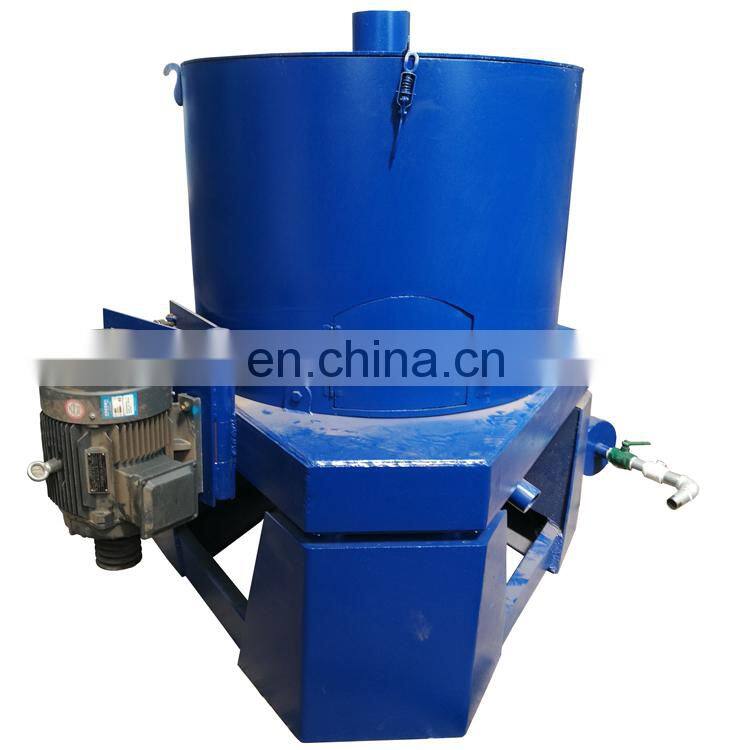

Fine Size Gold Recovery System Name: Knelson type gold centrifugal concentrator Processing capacity: 15tph-60tph dry solids Quantity: 2- 4 pcs Remark: Fully continuous type Function: for fine size dust gold recovery (-6mm) Recovery Rate: 99%
	Gold shaking table is a gravity dressing machine,which has high separation efficiency.It is designed to wet gravity-based separation of minerals and other granular materials. Gold shakint table does not need reagent compared with the traditional process as well as it can make the materials concentrated at one time. Gold shaking table is mainly composed of bed head, electromotor, adjusting gradient device, bed surface, ore chute, water chute, rifle bar and lubricating system
Powering system Name: Cummins diesel engine generator set Power: 50Kw-350Kw Brand: Cummins, Weichai, or as required Function: supplying power to all the systems
	Mercury Amalgamator Type: drum type Working mode: amalgamator + distiller retort Function: With the help of Mercury, to extract allthe gold out from the concentrates that recoveredby the sluice and concentrators Recovery rate: 100%
Gold Smelting Furnace Capacity: 10-15kg per batch Moulds: 100g; 200g; 500g; 1000g Function: to smelting thegold sand and make into final product of gold bars

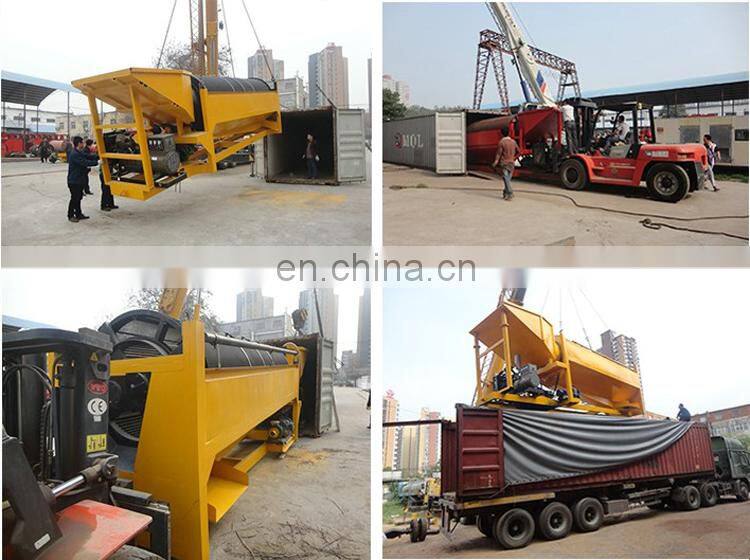

Packaging & Shipping

if you need more photos and video , please click here to contact me :

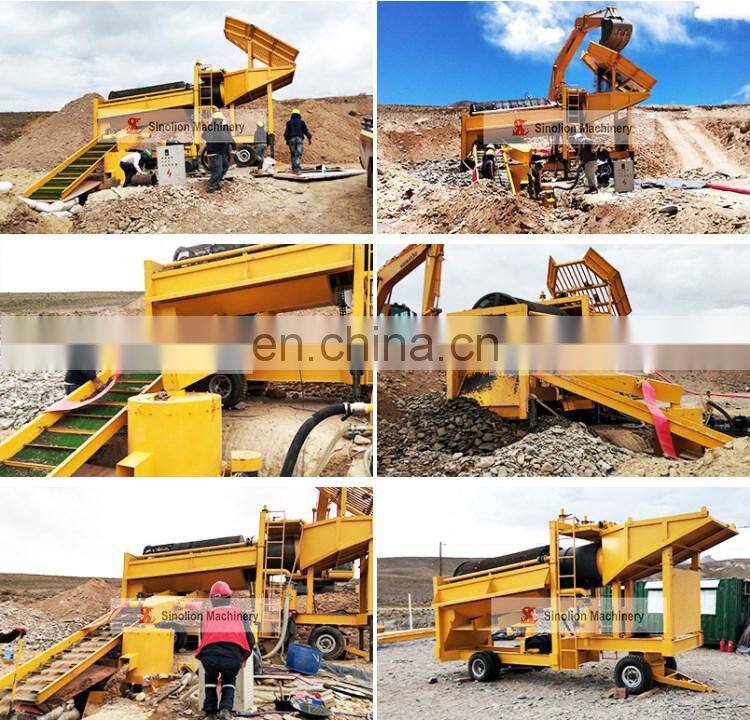

Case

if you need more photos and video , please click here to contact me :
