Home > Products > Self Fusing Tape > Waterproof Self Fusing Silicone Rubber Tape Electrical Tape

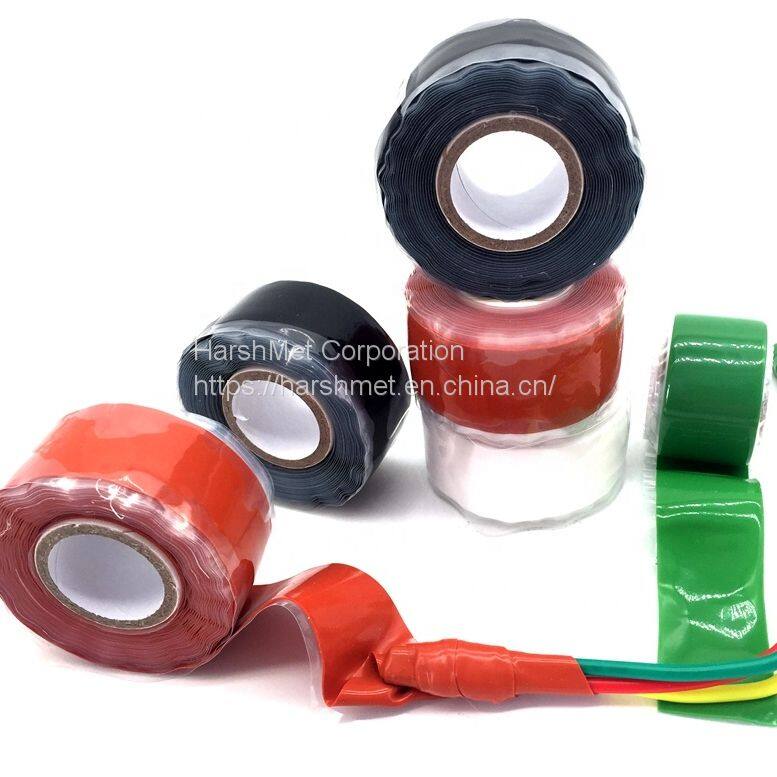

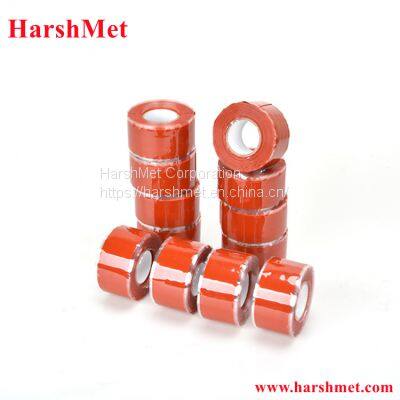

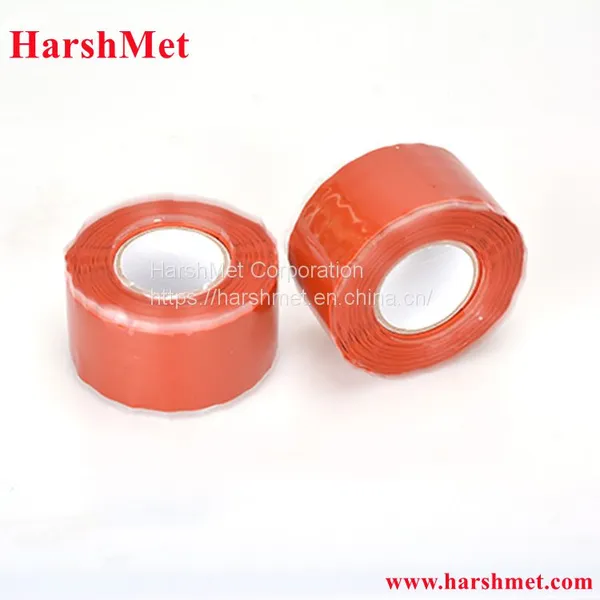

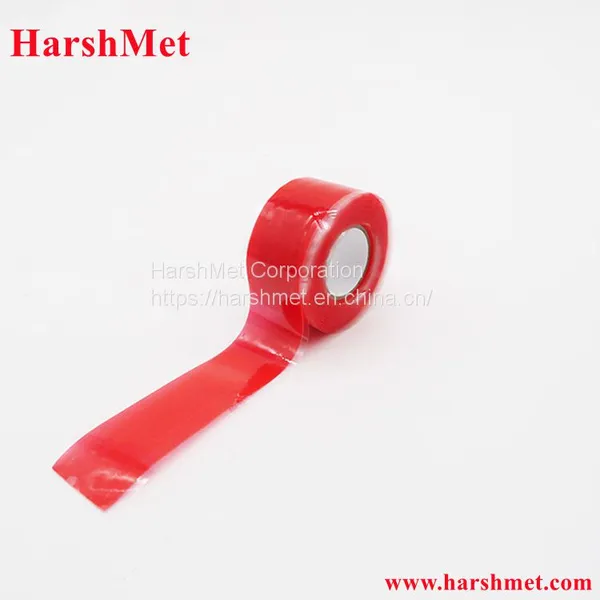

Waterproof Self Fusing Silicone Rubber Tape Electrical Tape
US$ 0.1 - 0.5
/ Roll
10 Rolls(Min. Order)
- Xiamen, Shenzhen, Shanghai
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
-
High Quality Self Fusing Rubber Silicone Tape
-
High Performance Self Fusing Silicone Waterproof Rubber Tape
-
Plumbing Repair Silicone Rubber self fusing silicone tape
-
Transparent Clear Silicone Rubber Waterproof Self Fusing Repair Tape
-
Heat Resistant Silicone Rubber Waterproof Electrical Triangular Section Self Fusing Sealing Repair Self Adhesive Insulation Tape
-
Working Under High Temperature 200 Deg.C Heat Resistant Insulation Self Fusing Silicone Rubber Tape
Product Details
| Brand Name | HarshMet | Place of Origin | China | |
| Model Number | SFT-40 | Material | Other, Silicone Rubber | |
| Type | Insulation Tape | Application | High Voltage | |
| Rated Voltage | 35KV | Tensile Strength | 21N/10mm |
Product Description
Product Description
SFT-40C Transaprent Silicone Rubber Self Fusing Tape
Descriptions
HarshMet SFT-40 transparent silicone rubber self fusing tape is a high temperature and arc-and-track resistant tape composed of self fusing, inorganic silicone rubber and easy-tear and easy-strip liner. SFT-40 has wide
temperature tolerance of -50 to 250 . It can be
applied through 15kV for insulation and sealing for cable and reenter connections.
Sizes
Features
Standard colors, black, red, yellow, green, gray, blue, orange, etc
Excellent track and arc resistance
Excellent ozone resistance
High Dielectric strength
Workable in extremely low temperatures
Excellent conformability, excellent fusion
Excellent weathering characteristics
Applications
As an ove-wrap for protection of terminating high voltage cables against arcing and tracking. Suitable for submarine cables, large motors, sensors, motors, electrical connections in aircraft engines and insulation wrap electrical equipment.
Technical Data
Descriptions
HarshMet SFT-40 transparent silicone rubber self fusing tape is a high temperature and arc-and-track resistant tape composed of self fusing, inorganic silicone rubber and easy-tear and easy-strip liner. SFT-40 has wide
temperature tolerance of -50 to 250 . It can be
applied through 15kV for insulation and sealing for cable and reenter connections.
Sizes
| Thickness* Width(mm) | Length |
| 0.25*25, 0.25*30, 0.3*25, 0.3*30, 0.4*25, 0.4*30, 0.5*25 , 0.5*38.1, 0.5*30 , 0.5*45 , 0.5*50, 0.75*25, 0.75*30, 0.75*38.1, 0.75*45, 0.75*50, 0.8*50, 0.5*100, 0.7*100 | Standard 3m, or any custom length |
Features
Standard colors, black, red, yellow, green, gray, blue, orange, etc
Excellent track and arc resistance
Excellent ozone resistance
High Dielectric strength
Workable in extremely low temperatures
Excellent conformability, excellent fusion
Excellent weathering characteristics
Applications
As an ove-wrap for protection of terminating high voltage cables against arcing and tracking. Suitable for submarine cables, large motors, sensors, motors, electrical connections in aircraft engines and insulation wrap electrical equipment.
Technical Data
| Performance | Typical data | Test Method |
| Thickness | 0.51mm | ASTM D1000-76 |
| Tensile Strength | 23N/10mm | ASTM D-1000 |
| Elongation | 640% | ASTMD -1000 |
| Dielectric Strength | 35KV/mm, air | ASTM D 1000 |
| 39KV/mm, oil | ||
| 33 KV/mm, oil at 180ºC ±5ºC | GB-T1695-2005 | |
| Fusion | Pass | |
| UV Resistance | Pass | ASTM D 4388 |
| Ozone Resistance | Pass | ASTM D 4388 |
| Xenon-arc exposure@1008h | Pass | ASTM D 4388 |
