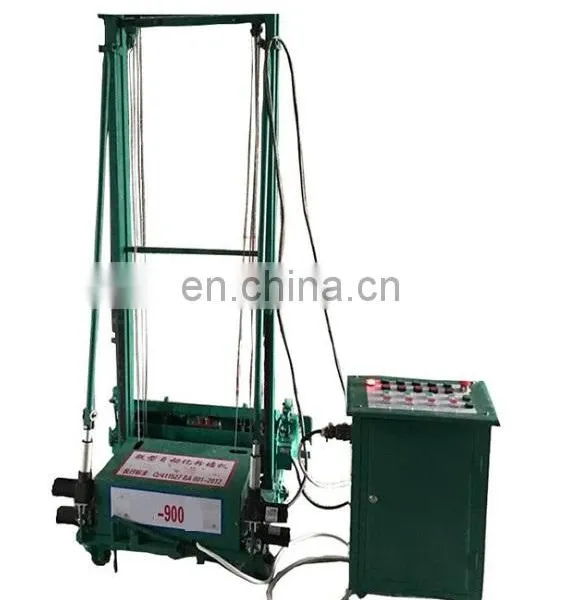

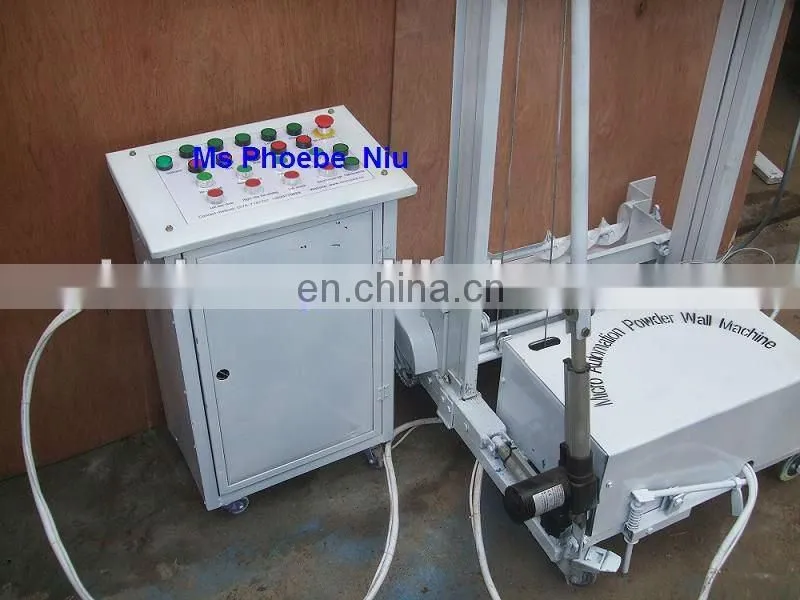

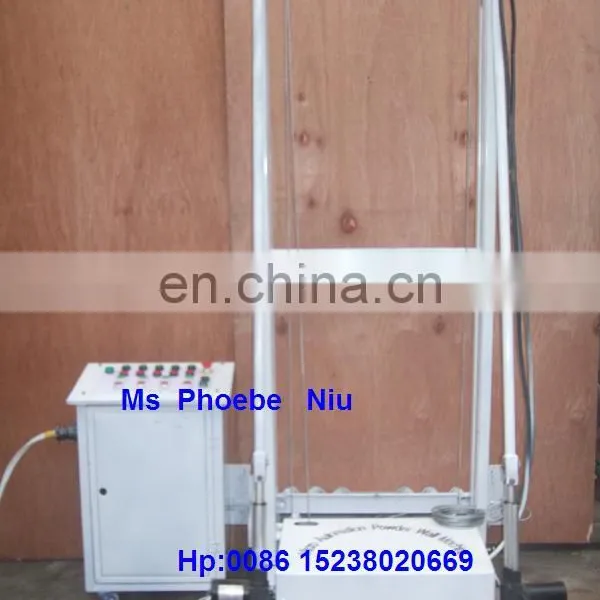

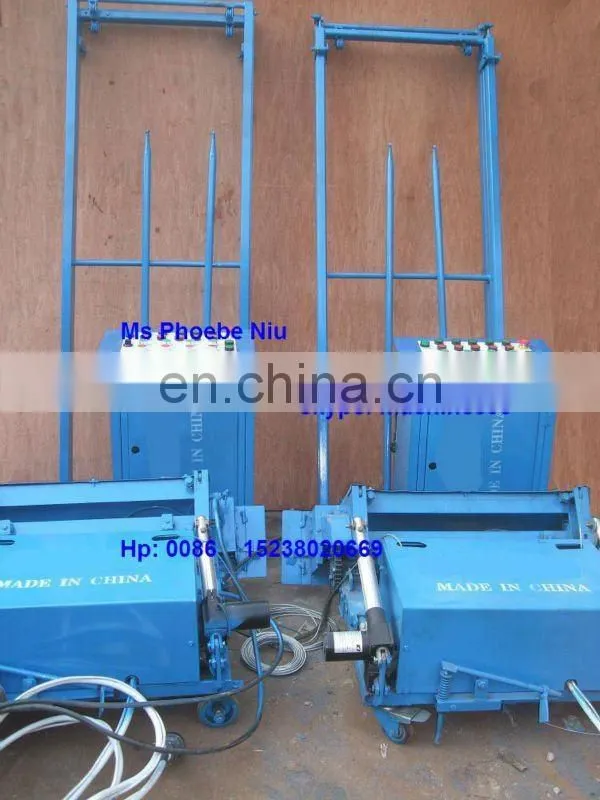

Automatic PLC control wall plastering machine /Automatic wall rendering machine/ Automatic rending machine for wall
Advantages:
1, The volume is small, the weight is light , easy to move (automatic walking, automatic positioning, automatic adjustment of the plaster thickness , automatically adjust the plaster joints ) , easy to operate .
2,The unique design of the dual- rail automatic lift , automatic positioning , the main rail design height of 1.96m , host design : wide 78cm x long 80cm . Breakthrough of the biggest challenges of the whitewashed wall machine manufacturers of domestic and market can not solve so far for different floors of a high degree of automatic movements , and an effective solution across the room the construction of fills .
3,The machine is designed to squeeze plaster , plaster thickness up to 0.2 - 3cm not fall off , further strengthened the bond strength of the mortar and the wall , dense degree more than the manual more than five times , an effective solution to the artificial plaster in mortar off and hollowing phenomenon .
4,Positioning mode , our company developed a complete positioning system , combined with laser positioning ; the positioning is simple , fast , high precision . Really reached the whitewashed wall of the precedent of automation at home and abroad , to effectively guarantee the accuracy of wall roughness and verticality.
5,The professional design of automatic retractable motor adjustment control verticality and the second rail positioning to achieve the plaster , the whereabouts of the mobile location at the same time , significant savings in time and solve this problem up outside the host .
Description:
1. Simple structure, light weight, small cubage, easy to operate.
2.It can be used for different hight of room and rising automaticly. It has two rails for rising automaticly and the hight of main rail is 1.96m—2.05m,
3. It designed to platering vibrately,and there is no spare part inside of hopper, and no waste plaster. After the testing, when vibrating for plastering, and the water is out, it can reach to 3-5cm thickness but can’t drop off, then compactness is about 5times than manual.
4. Location mode adpots the special equipment we have made and use the laser location together to make automatic operate the wall platering
5.Easy to move, and the weight is about 4kgs and there is whell can easy to move and operate.
Specification:
|
Model No. |
JXYD-800A |
|
Rendering Speed--m2/hour |
30~70 m2/hour |
|
Power supply--kw |
2.2kw,380v |
|
Rendering thickness--mm |
2~100mm |
|
Rendering width--cm |
80cm |
|
Rail Rising height--m |
1.96~2.05 meter |
|
Rising speed--m/s |
3.5 meter/s |
|
Positioning time--second |
5 s |
|
Plastering way |
Vibrating or squeezing |
|
Walking way |
Automatic Walking |
|
Dimension of main machine--cm |
80x80x40cm |
|
Weight of main machine--kg |
80kg |
|
Dimension of controller cabinet--cm |
30x50x80 cm |
|
Weight of controller--kg |
4 kgs |
