Low Cost Mobile Concrete Batching Plant

Low Cost Mobile Concrete Batching Plant photo-1

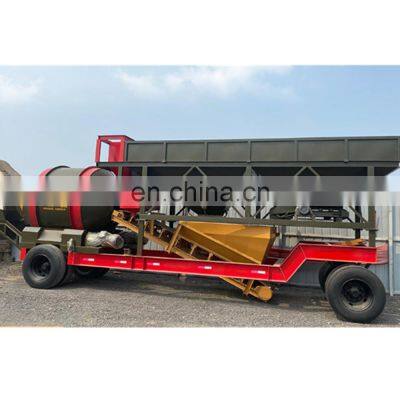

Low Cost Mobile Concrete Batching Plant photo-2

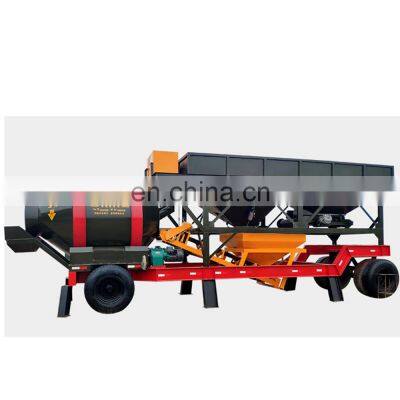

Low Cost Mobile Concrete Batching Plant photo-3

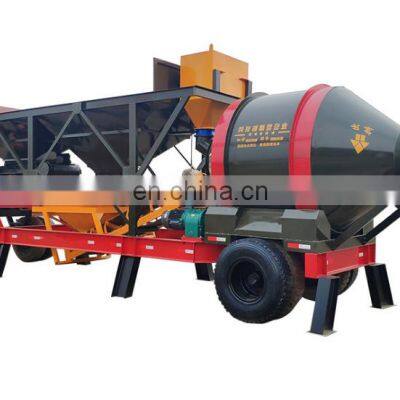

Low Cost Mobile Concrete Batching Plant photo-4
Low Cost Mobile Concrete Batching Plant photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2014
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

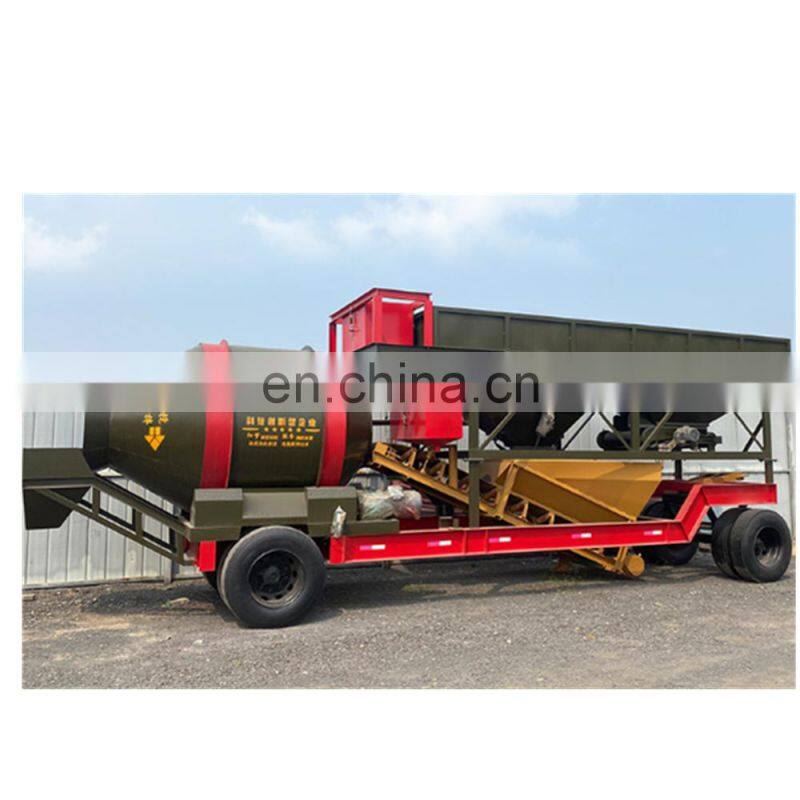

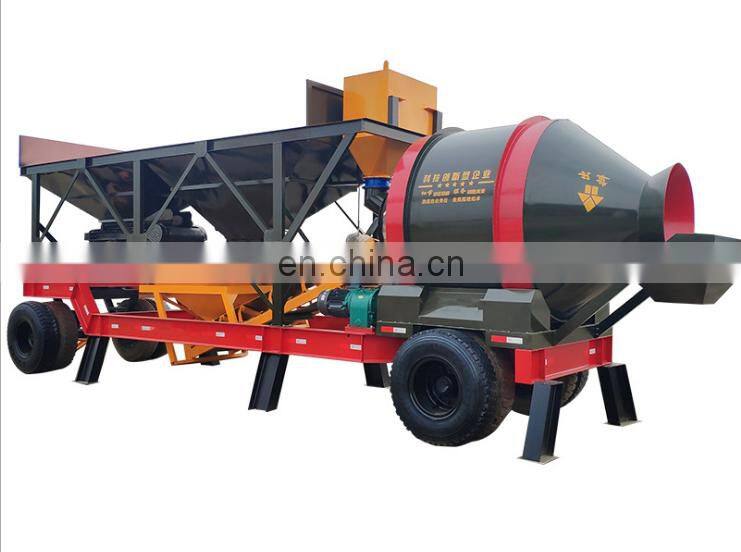

Introduction of mobile mixing plant It is a concrete production equipment that integrates the material storage, weighing, conveying, mixing, unloading and fully automatic control system of the concrete mixing plant into a trailer unit; it and all the action processes and operation methods of the fixed automatic mixing plant , Repairs and maintenance are exactly the same; at the same time, it has the unique characteristics of flexible movement, quick and easy disassembly and assembly, and simple storage management; it is an excellent model for mobile construction of highways, bridges, ports, hydropower and other projects. The roller mobile concrete mixing plant is a compulsory, high-efficiency equipment. It has high production efficiency and is widely used in large and medium-sized building construction, urban and rural investment small commercial concrete mixing plant, road and bridge engineering and production of concrete products. In the precast plant, it is an efficient equipment for the production of commercial concrete.

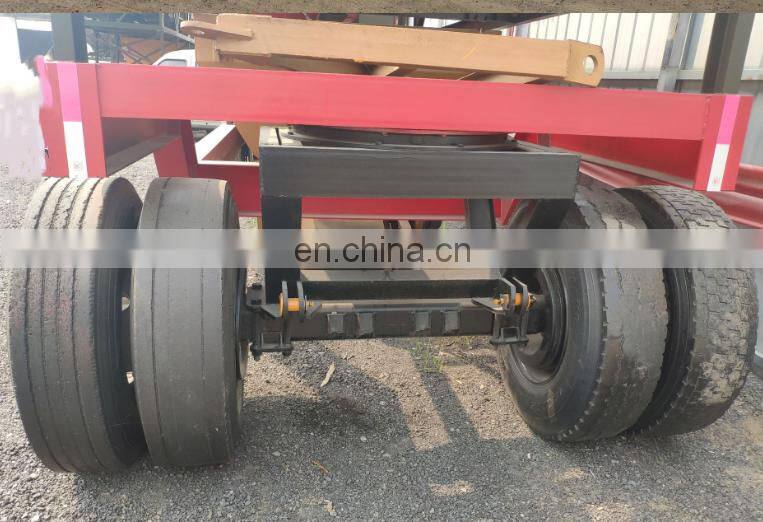

product structure: 1. Main engine chassis: the cantilever-shaped mixing main engine chassis, which contains tow truck traction pins and parking legs; scales for mixers, cement and water admixtures are placed on the chassis; inspection walkways, railings, etc. are attached to the surroundings. 2. Control room: The control room is at the bottom of the main chassis, and it is equipped with a fully automatic control system for the mixing plant. The control system is the same as the fixed mixing plant. The control room is used as the front support point of the whole station when it is working. Stored in the stent; all control circuits do not need to be disassembled. 3. Aggregate batching meter: This system is located at the back end of the whole station. The upper part is an aggregate (sand, stone) storage hopper. The storage hopper can be divided into 2 or 4 grids, and a heightening plate is set to increase the storage. Open the door one by one, the aggregate is counted as a multi-material accumulation method. The bottom is equipped with a walking rear axle and frame legs for working. 4. Belt conveyor frame: This frame is a truss structure connecting the mainframe chassis and the aggregate batching frame. It is equipped with a belt frame; the main frame, belt frame and batching frame are combined to form the main structure of the entire mobile mixing plant 5. Peripheral parts: the cement silo and screw conveyor. The peripheral parts are integral parts regardless of work or transportation, and can be transported and disassembled as a whole without disassembly. The advantages of the mobile mixing plant are its small investment, low risk, and it has the advantages of less floor space and easy operation. Its production efficiency and mixing quality are sufficient to meet various small and medium-sized concrete component factories, as well as industrial and civilian use. Required for construction projects. During the actual ordering process, some configuration parameters can be adjusted according to different customer requirements.

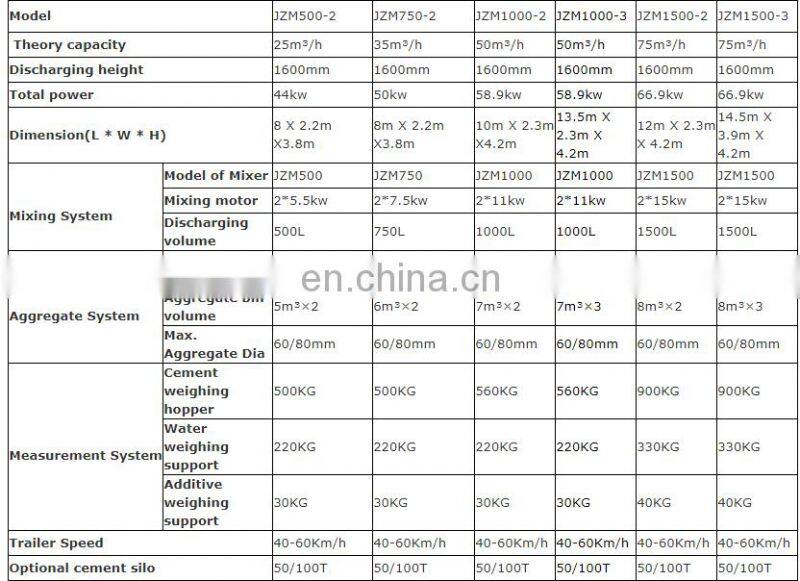

Specification
item
value
Applicable Industries
Building Material Shops, Construction works
After Warranty Service
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location
Egypt, Canada, Italy, France, Peru, Saudi Arabia, Russia, Spain, Morocco, Kenya, Colombia, Kazakhstan
Showroom Location
Egypt, Canada, Italy, France, Peru, Saudi Arabia, Russia, Chile, Bangladesh, Uzbekistan
Condition
New
Place of Origin
China
Henan
Motor Power
44kw
Mixing Power
9kw-22kw
Charging Capacity
800L--4800L
Discharge Way
Automatic
Outline Dimension
8380x2500x3740mm
Warranty
1 Year
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
UNIQUE SELLING POINT
Energy saving
Productivity
48M/H--280cbm/h
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Weight:
5000kg
Power:
44kw
Product name:
Mobile Concrete Batching Plant
Capacity:
25m3/h
Control system:
PLC
WHEEL BASE:
3800+1250mm
Dimension(L*W*H):
5100*2200*2200
Tires:
16/70R22.5
Mixer:
JZM series
Packing & Delivery
wood case
