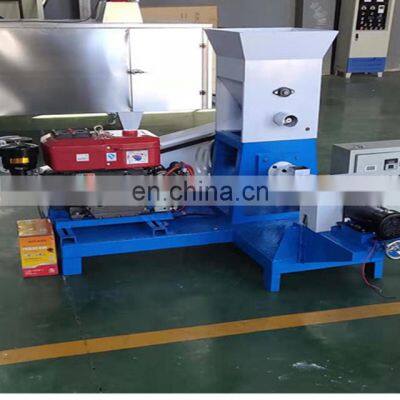

Direct Factory Food Processing Line Floating Catfish Feed Pellet Making Machine/Small Fish Farm Cheap Floating Feed Extruder
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2014
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2018 Hot Promotion High Quality Floating Catfish Feed Pellet Making Machine/Small Fish Farm Cheap Floating Feed ExtruderNegotiableMOQ: 1 -
Diesel Engineer Driven Floating Fish Food Making MachineNegotiableMOQ: 1
-
Hot Sale 2019 New Model Floating Fish Pellet Making MachineNegotiableMOQ: 1
-
Animal Feed Crushing and Mixing MachineNegotiableMOQ: 1
-
Double Screw Floating Fish Pellet Extruder Making MachineNegotiableMOQ: 1
Product Description
The machine is a pellet feed expansion equipment. Can be customized according to the requirements of the mold. Novel design, high output, stable operation, main components are made of special alloy , wear-resistant, long service life
Multi-purpose pet, fish, shrimp puffing feed machine |
||
Suitable for professional farmers, small and feed mills |
||
The cost of feed is lower than the market price of 60% |
||
Forming smooth and uniform |
||
Floating water for 5-10 hours or more does not sink |
||
No pollution to water sources, reducing fish disease |
||
Direction for use
使用说明
1.Add wheat husk, corn flour, bean cypress, fish meal, etc., to the compound premix.
2.Add 10-17 kilograms of water per 100 kilograms according to the formula, and mix well in a blender for about 3-5 minutes.

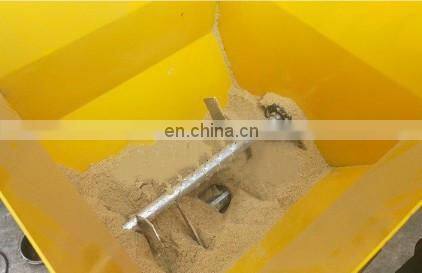

3.Start the mixing machine to stir the dragon, pump the material into the storage bin, and pump the dragon into the puffing machine mouth.
NOTICE :Pay attention to controlling the closing of the storage tank from small to large.
Pellet structure
The dicing part: the size of the dicing is determined by the discharge hole, the expansion is generally 4.5 cm, and the opening is 4-5. If you want high output, you can open 10-15 holes without expansion. The small motor can be adjusted before and after. The knife should be smooth. It is best to use 3 to 5 kg of feed and more water to lubricate the machine.

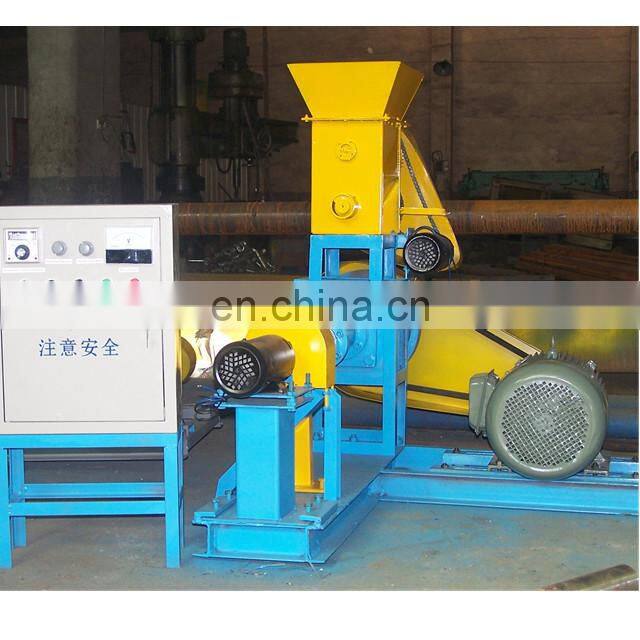

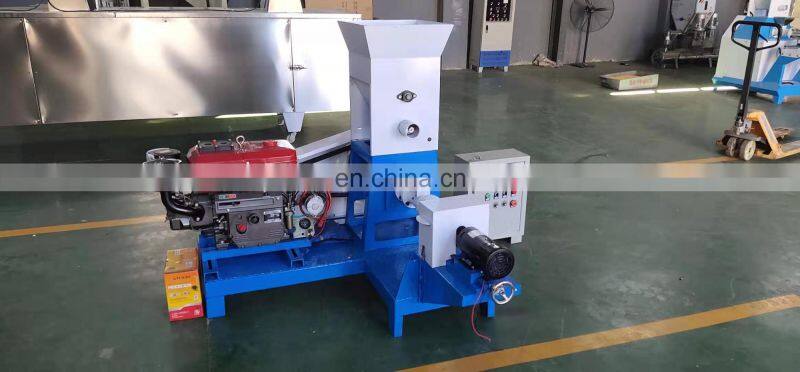

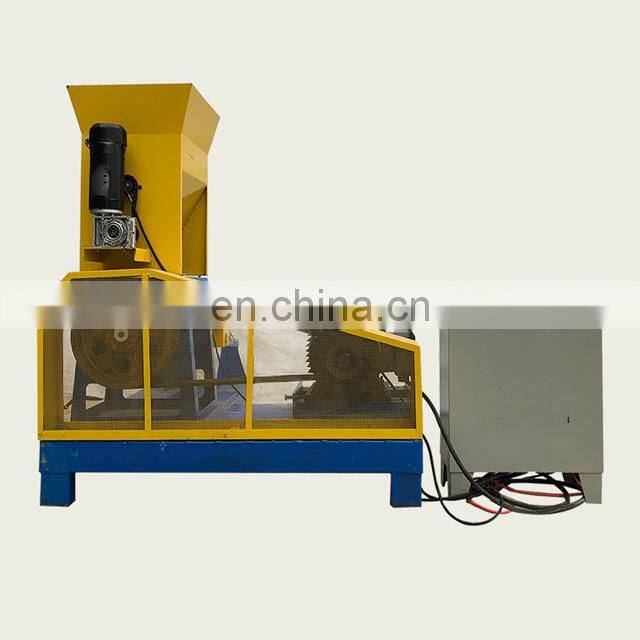

Detailed Images

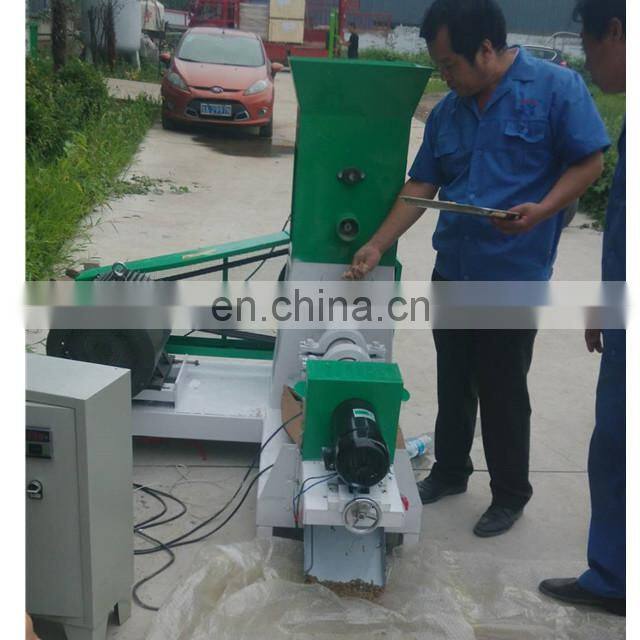

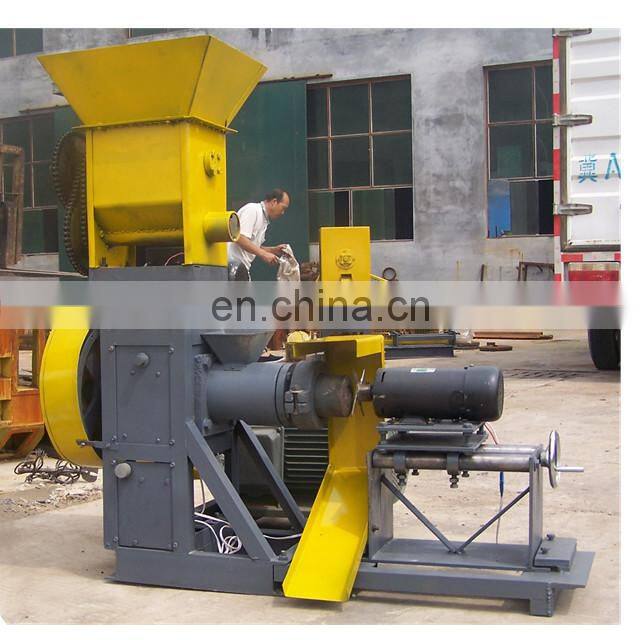

★The design is novel, unique, simple in structure, easy to install and easy to disassemble, easy to operate.
★The screw and screw adopt special alloy, which is firstly tempered and then heat treated. It has the advantages of wear resistance and long service life.
★There is a unique supercharged die device to ensure feed yield and quality; electric heating device increases feed expansion rate.
★The use of brand- name bearings in the spindle bearing combination ensures the safety and reliability of the extruder.
★The main motor adopts high-quality Y series three-phase motor to ensure strong power; the reducer cooperates with the main motor to ensure sufficient power.
Size Information
Device parameters
Model |
Productivity t/h |
Host power kw |
Feeding power kw |
Diameter mm |
Cutting power kw |
Unit price under FOB Qingdao port(USD$) |
JX-1 |
0.12--0.15 |
15 |
0.4 |
Φ60 |
0.4 |
|
JX-2 |
0.18--0.25 |
18.5 |
0.4 |
Φ70 |
0.75 |
|
JX-3 |
0.3-0.35 |
22/27 |
0.4 |
φ80 |
1.5 |
|
JX-4 |
0.40--0.45 |
30/37 |
0.4 |
Φ90 |
1.5 |
|
JX-5 |
0.5--0.7 |
55 |
0.4 |
Φ120 |
2.2 |
|
JX-6 |
0.8--1.0 |
75 |
0.4 |
Φ130 |
2.2 |
|
JX-7 |
1.2--1.5 |
90 |
0.4 |
Φ155 |
2.2 |
|
JX-8 |
1.8--2.0 |
132 |
0.4 |
Φ195 |
3 |
After Sales Service
The machine is backed by a one-year warranty. During the warranty period, the machine will receive free accessories in addition to natural damage, human negligence or other non-human factors that are caused by the vulnerability or quality of the parts. If there are quality problems in design, equipment installation, etc. during the warranty period, our company will respond within 24 hours, and timely send technical personnel to provide video support services.Provide lifelong paid services to the equipment, provide spare parts and spare parts to solve your worries.
Remarks: The above warranty period starts from the time the goods leave the factory.
FAQ
1. Are you manufacturer?
Yes, we are. Welcome to visit our factory.
2. Can you change the machine voltage as our request?
Yes, we can.
3. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.
4. Warranty time of your machine?
1 year except for consumable spare parts.
5. How about delivery time of your machine?
Generally it needs 5-7 days for big machines or producing line,and it will be much longer but within our negotiated delivery time.
Yes, we are. Welcome to visit our factory.
2. Can you change the machine voltage as our request?
Yes, we can.
3. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.
4. Warranty time of your machine?
1 year except for consumable spare parts.
5. How about delivery time of your machine?
Generally it needs 5-7 days for big machines or producing line,and it will be much longer but within our negotiated delivery time.
Our Company

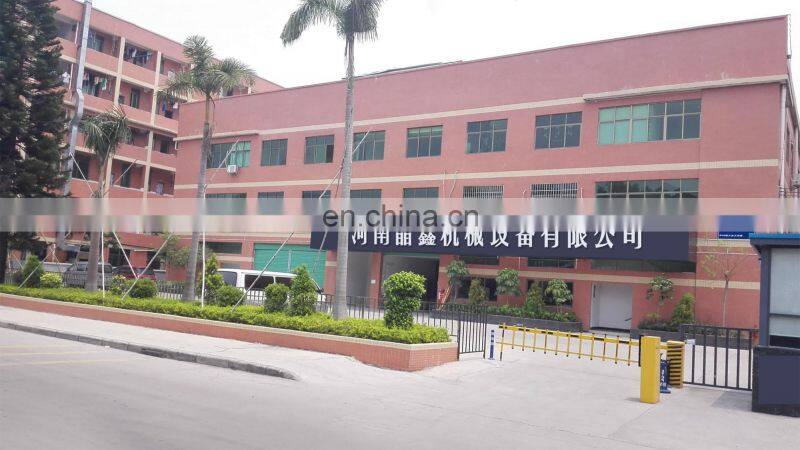

JINGXIN company（HONGXIN Factory） is a professional manufacturer of agricultural and food process machinery.We are located in Zhengzhou city.We manufacture and sell machines to our clients over 10 years.We are gold supplier on for more than 7 year,every clients will get full protection for orders with our free Trade Assurance.Our factory will welcome you to visit us if you have interest of our machines.
Exhibition
Our company has participated in many exhibitions in Africa, Middle East and South America.
Our boss Mr. Song was invited to attend Zimbabwe-China Business Forum 2018.
President Mr. Emmerson Dambudzo Mnangagwa delivered a speech at the forum.
