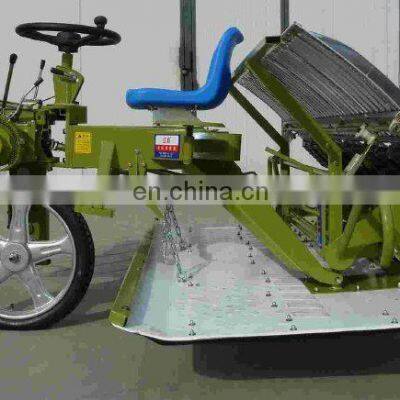

Manual Portable Rice Planting Machine/paddy Planter/high Speed Rice Planter

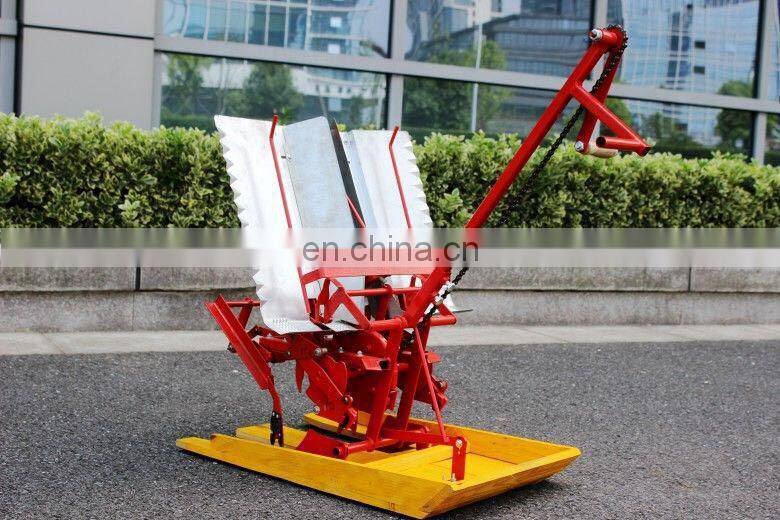

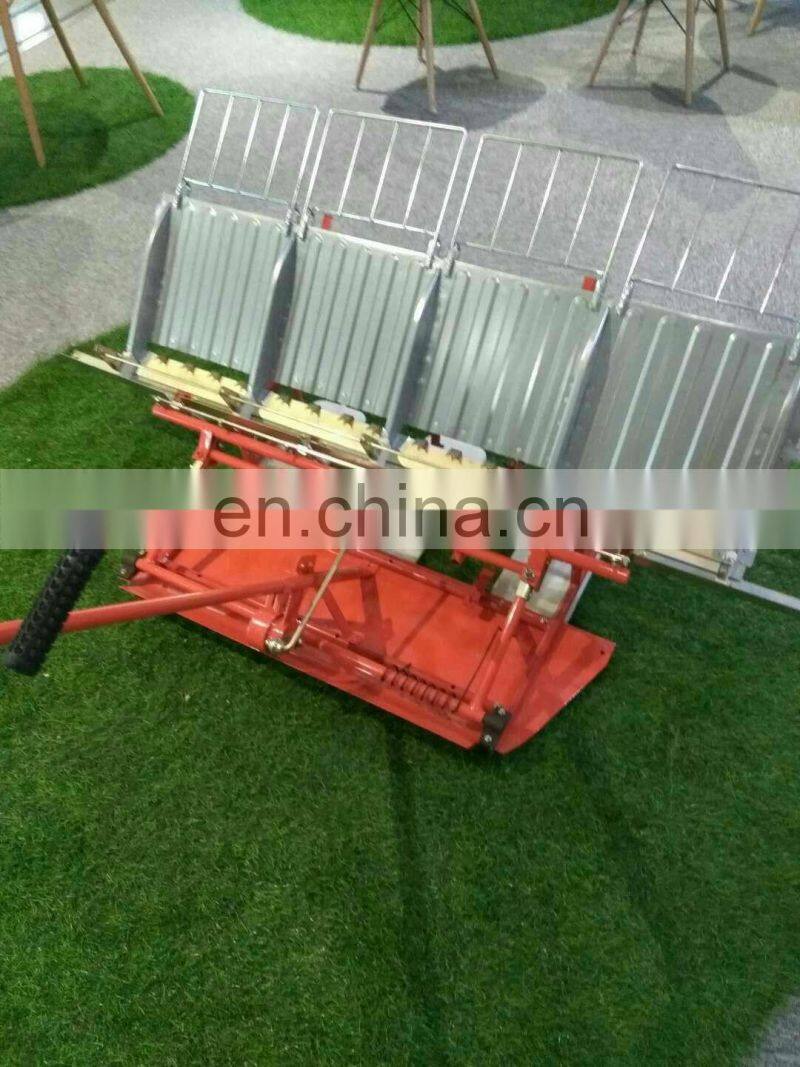

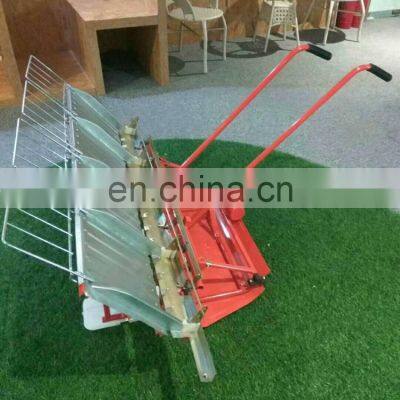

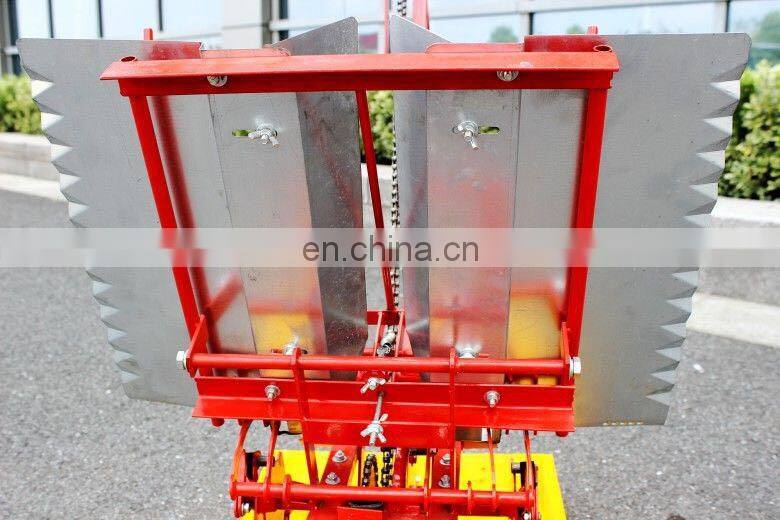

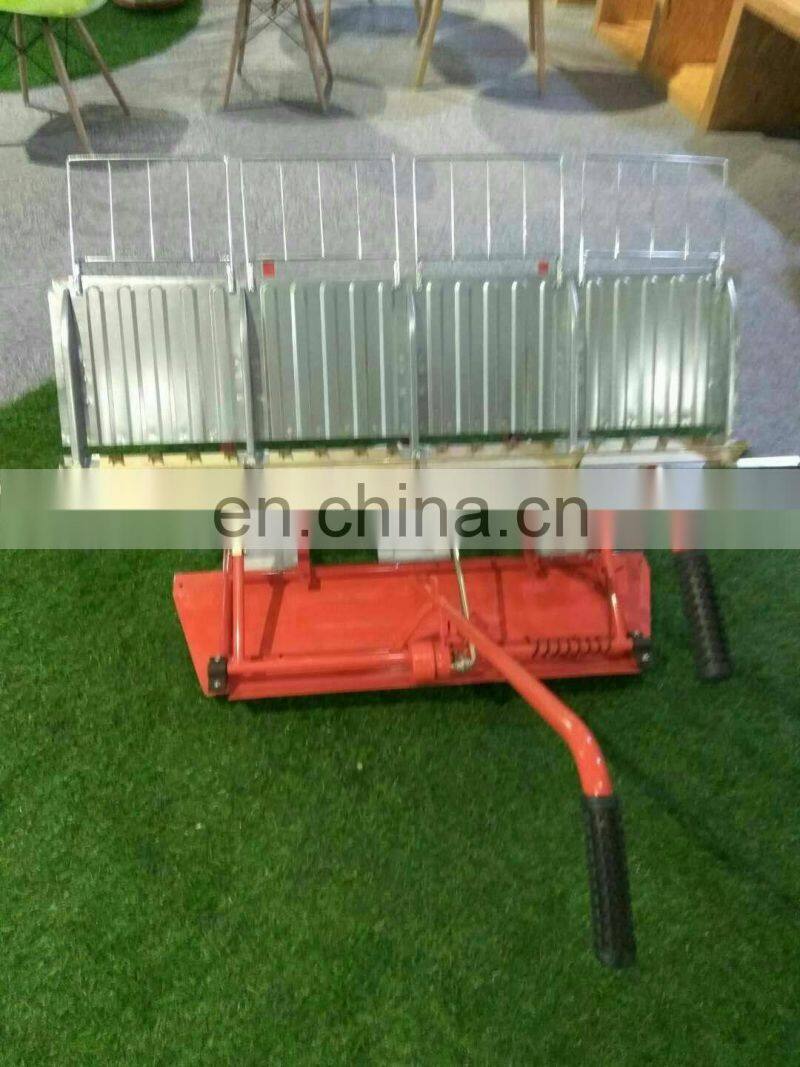

Small Manual Rice Planting Machine
1.rice planter/rice transplanter
2.suitable for various region
3.rice planting machine

Specification

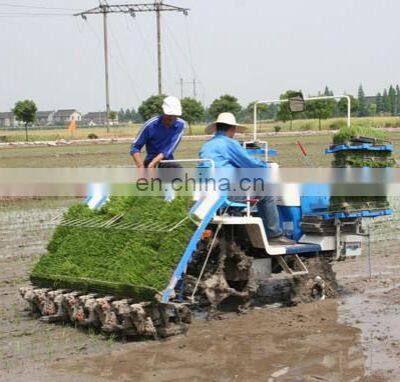

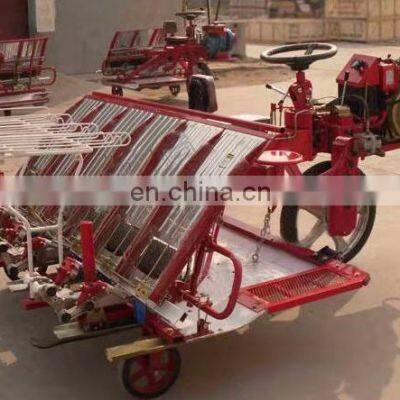

High speed eight rows rice planting machine

1.The number of rows:8
2.Planting space:238mm
3.Seeding planting distance:120mm;140mm
4.Capacity:2-3mu/h
5.Diesel engine speed:2600r/min
6.Diesel power(KW/HP):3.68/4.98
7.Diesel engine model:175
8.Machine size:2410×2132×1300mm
9.Machine Weight;280kg
10.package size:1800*1600*600mm
11.weight:310kg

charactors:
1.Walking part: four-wheel drive, with throttle continuous variable speed mechanism, the world's advanced HMT stepless variable speed mechanism;
2.Transplanting method: adopt mechanical copying rotary transplanting system;
3.Balancing device: electronic hydraulic or mechanical;

Application and advantage:
Rice transplanter is a kind of planting machine which plants rice seedlings in paddy field.The function is to improve the working efficiency and planting quality of transplanting seedlings, and realize reasonable close planting, which is beneficial to the mechanization of follow-up work.The working process of rice transplanter varies with different structure, but the basic flow is basically the same.The "group of successive points take plants directly ZaiCha" principle as follows: the seedlings in groups form neatly into the seedling box, with the seedling box make lateral movement, make seedling device of successive points, take a certain number of seedlings, under the effect of planting trajectory control mechanism, in accordance with the requirements of agronomy insert the seedlings into the soil, the seedling lifter again in a certain track back to the seedling box plants.

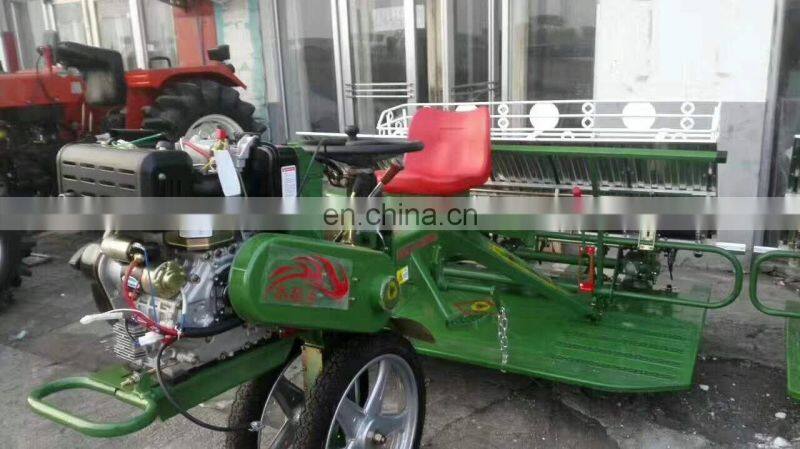

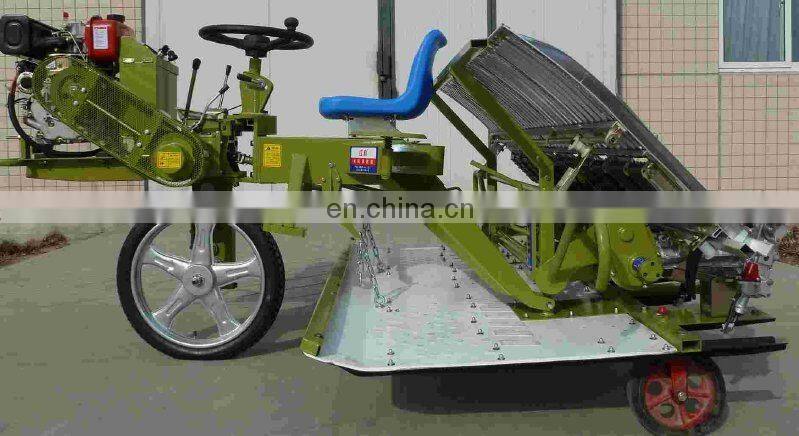

Manual four rows rice planting machine

1.The number of rows:4
2.Planting space:238mm
3.Seeding planting
4.Drive type: two-wheel drive
5.Size:2480*1480*850mm
6.Engine model E170 (gasoline engine)
7.Type air cooled 4 stroke 1 cylinder OHV gasoline engine
8.Total exhaust 0.171L
9.speed:3600r/min
10.Fuel grade: gasoline
11.Tank capacity:4L
12.Starting type: reverse impact starter
13.Wheel type: rubber wheel claw driving wheel
14.Operating productivity:1-2mu/h
15 Unit fuel consumption rate<=6.0kg/hectare
16 package size:1800*1200*730
17:weight 170kg
