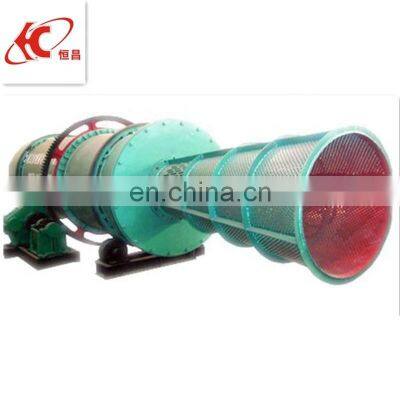

GTX1030 Series Gold Trommel Wash Plant
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Submerged Double Spiral Classifier Silica Sand Washing Plant Spiral Classifier Machine
-
Factory Price Placer Mining Machine 50/100/200 Tph Gold Trommel Washing Plants / Screen
-
Best Quality Wheel Bucket Type Sand Washing Machine for Sand Production Line
-
Rock Gold Refinery Machine
-
Gold Wash Machinery Mineral Gold Sand Submerged Spiral Separator Classifier Machine
-
Gold Wash Machinery Mineral Gold Sand Submerged Spiral Separator Classifier Machine
Product Description

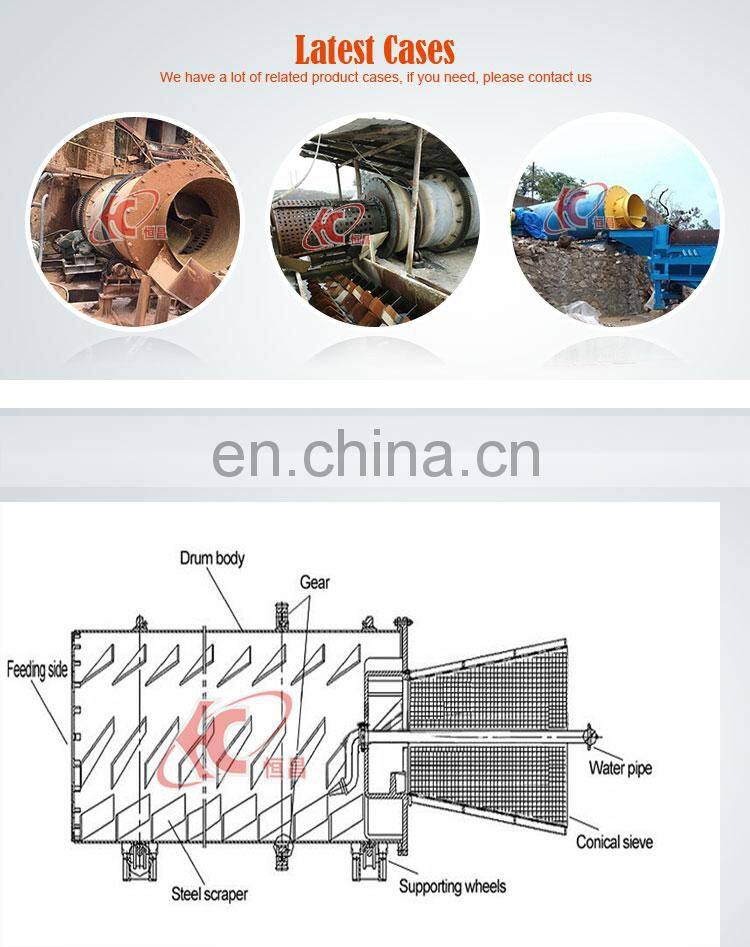

The slurry material feeds into the drum where it is vigorously scrubbed, the soil matrix is broken up and the
taaarget mineral is released.
The material is then screened through the rotating screen and waste is ejected.
The screened material is then passed on to the concentrating modules for upgrading.
|
Model |
Drum Dimension (mm) |
Screen Size (mm) |
Rotate Speed (r/min) |
Feeding Size (mm) |
Water Consumption(m3/h) |
Capacity(t/h) |
Power (KW) |
Weight (t) |
|
GTX1030 |
Φ1000×3000 |
≤20 |
27.9 |
≤80 |
1 |
40 |
15 |
3.8 |
|
GTX1230 |
Φ1200×3000 |
≤25 |
27.6 |
≤100 |
1.3 |
70 |
22 |
4.7 |
|
GTX1430 |
Φ1400×3000 |
≤25 |
27.6 |
≤100 |
1.5 |
80 |
22 |
4.9 |
|
GTX1545 |
Φ1500×4500 |
≤25 |
21 |
≤160 |
1.7 |
120 |
30 |
6.9 |
|
GTX2265 |
Φ2200×6500 |
≤50 |
19 |
≤230 |
1.8 |
180 |
37 |
15.9 |
