High Performance Stone Grinding Machine Hammer Mill Crusher Glass Crushing Plants
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Sand Stone Crushing Line With Crusher and Screener Machine
-
Customize Mini Stone Coal Crusher Plant Impact Crusher Machine With Good Price
-
Diesel Engine Primary Crushing Equipment PE 250x400 Gold Ore pe 400X600 Jaw Crusher Machine Mobile Stone Crusher Plant
-
Mica /perlite/ Zeolite /asbestos /bentonite Stone Hydraulic Cone Crusher
-
Feldspar/ Brucite/ Pyrophyllite/ Barite Stone Jaw Crusher
-
Hard Stone Jaw Crushers Gold Ore Crusher Machine for Glass Crushing Plants
Product Description
Products Description

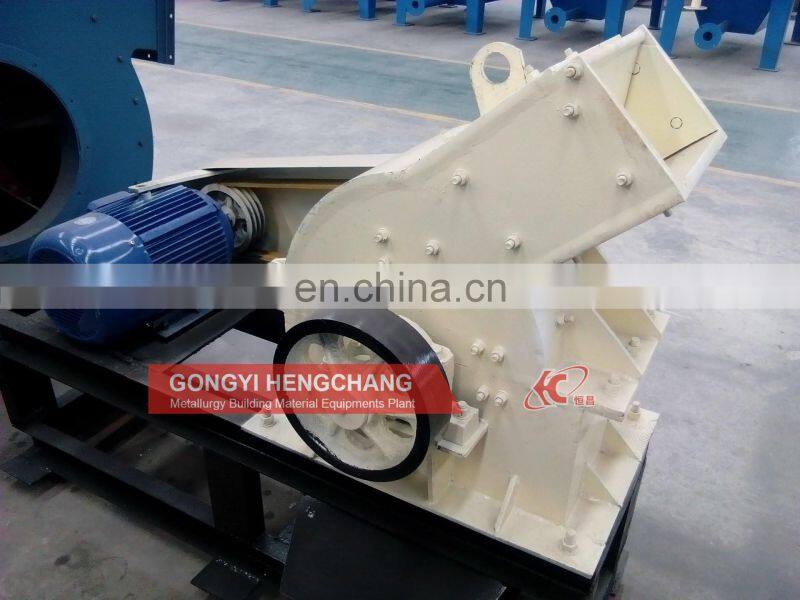

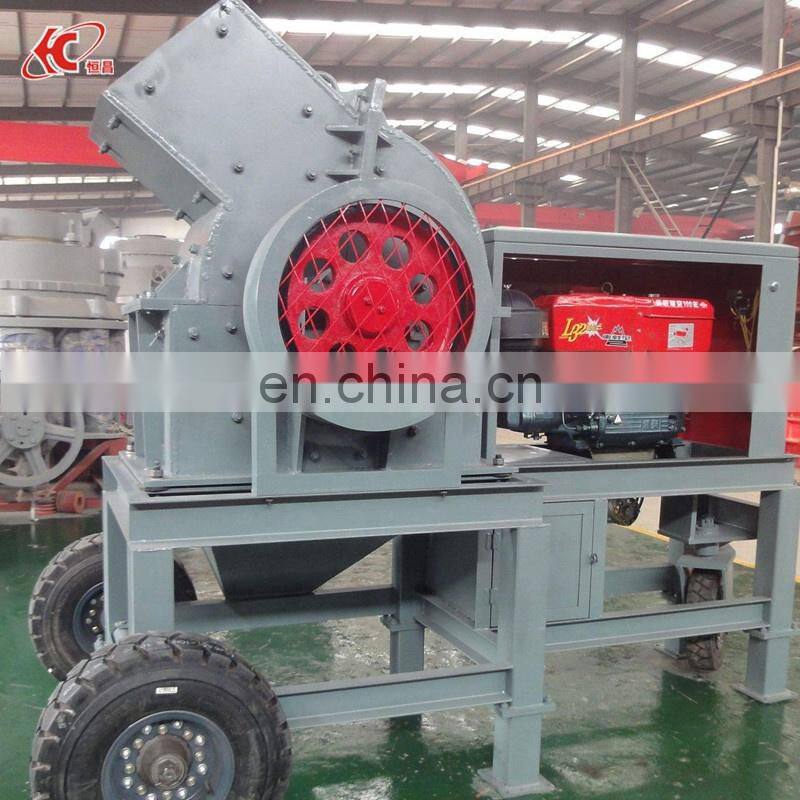

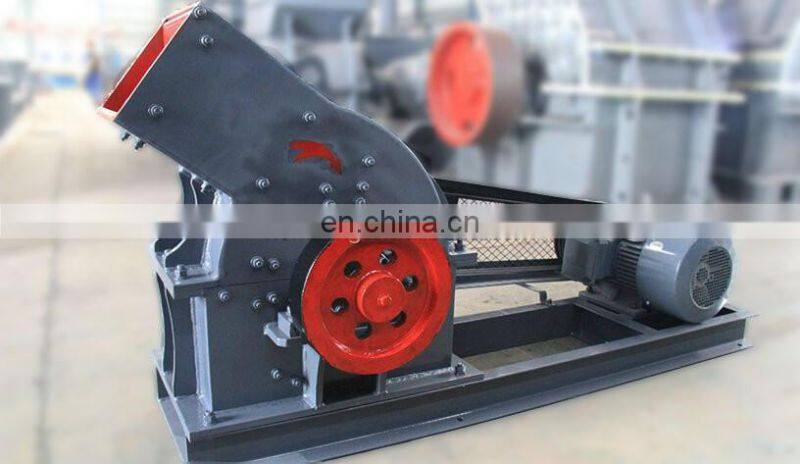

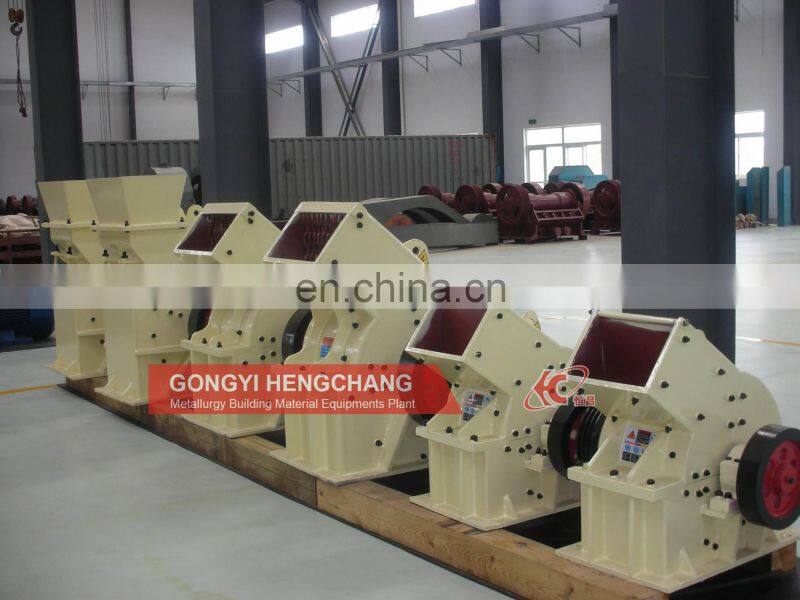

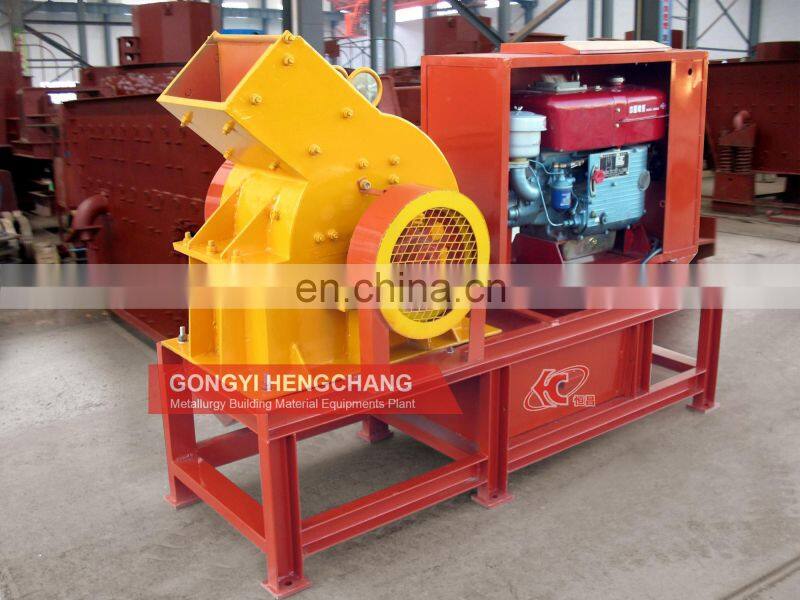

PC400x300 Rock hammer mill crusher
PC400X300 Rock hammer mill crusher is a kind of equipment for crushing materials in the form of impact. It is a single-rotor crusher, which can directly crush materials with the maximum particle size of 100 mm to a crusher of 10 mm or less.Hammer crusher is suitable for crushing medium hardness materials such as limestone, slag, coke, coal, etc.
Details Images

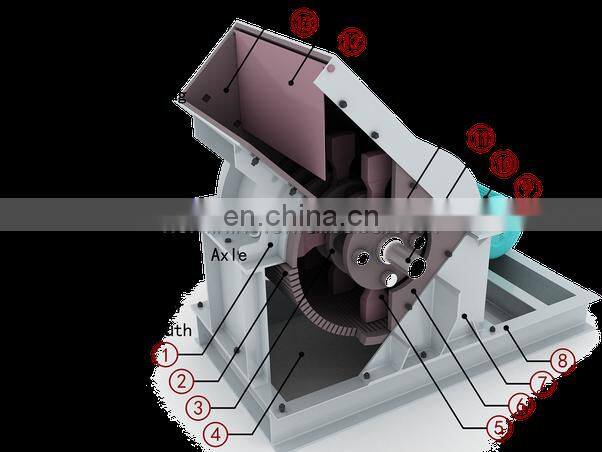

Working principle
When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size. When the bulk material into the machine, hit by the hammerhead and stopped by material bracket. That's not only increase the contact area between material and hammerhead but also avoid sudden infarction of the rotor. After the impact, bulk materials hit themselves on the crushing cavity. Then the stones overflow from the straight screen or falling and been hammered again forming the stones. At last discharged from outlet of the hammer crusher.
Our Advantages

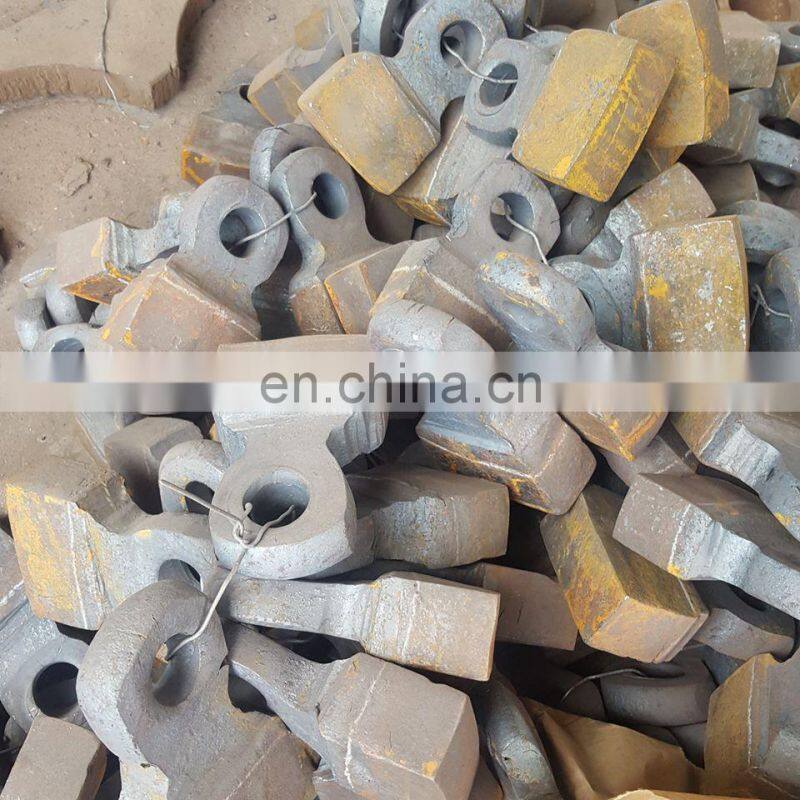

Hammer head
The weight of the hammer head can be customized according to thecustomer's requirements. The hammer head is made of new high-quality multi-element high chromium manganese steel composite casting, and its service life is several times that of the general hammer head.

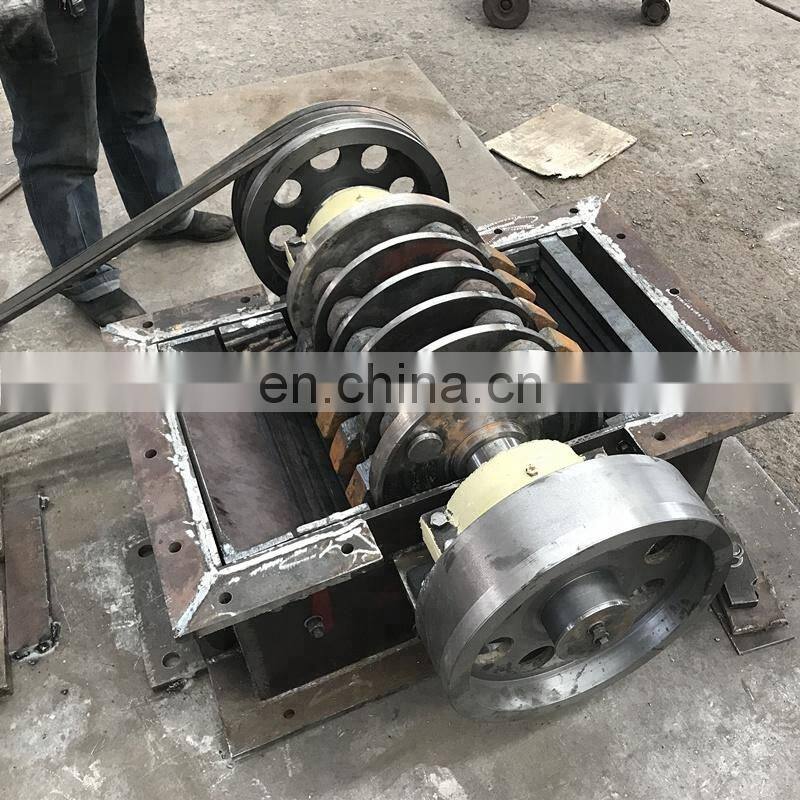

Spindle
The material of the spindle is made of high quality alloy steel, which is processed by ultrasonic inspection for quenching and tempering.High strength steel carburizing heat treatment was used to improve the wear resistance of hammer disc and hammer hole.
Lining plate and strike plate
In order to prevent the abrasion of the frame, the inner wall of the frame is made of manganese steel. The striking plate is made of high-strength steel and quenched and strengthened. The superior abrasion resistance and impact resistance of the lining and striking plate are guaranteed.
Certifications
Hammer crusher CE Certification
ISO Quality System Identification
Motor CE certification
Product Paramenters
Model | Rotor Size (Diameter×length ) (mm) | Rotor Speed (r/min) | Feeding Size (mm) | Output Size(mm) | Motor power (KW) | Capacity(t/h) | Weight (kg) |
PC400×300 | Φ400×300 | 1440 | ≤100 | ≤10 | 7.5 | 5-10 | 900 |
PC600×400 | Φ600×400 | 960 | ≤100 | ≤15 | 18.5 | 10-20 | 1500 |
PC800×600 | Φ800×600 | 970 | ≤120 | ≤15 | 45 | 18-24 | 2680 |
PC1000×800 | Φ1000×800 | 990 | ≤200 | ≤15 | 110 | 30-50 | 5600 |
PC1000×1000 | Φ1000×1000 | 990 | ≤200 | ≤15 | 132 | 30-60 | 8000 |
PC1200×1200 | Φ1200×1200 | 750 | ≤250 | ≤20 | 180 | 90-110 | 19000 |
