uganda wood charcoal making machine ball shape briquette price
Introduction of wood charcoal making machine:
wood charcoal making machine adopts two pressure roller ,it uses preloading spiral and forced pressure molding material into the middle of the roll, due to constant speed reverse rotation compression molding material, the unit pressure from small to large until the roller center "0-0", forming unit reach maximum pressure,then rollers go on rolling, as the roller forming pressure lowering, formed ball will separate from roller.
We have three kinds of wood charcoal making machine:
common wood charcoal making machine, powerful wood charcoal making machine , and hydraulic(high pressure)wood charcoal making machine
1.common wood charcoal making machine: mainly uesd for coal and charcoal powder.
We have 290, 360, 430, 520, 670, 800, 1000 models.
2.powerful wood charcoal making machine:for iron, aluminum powder and other minerals
We have 450, 520, 670, 800, 1000 models

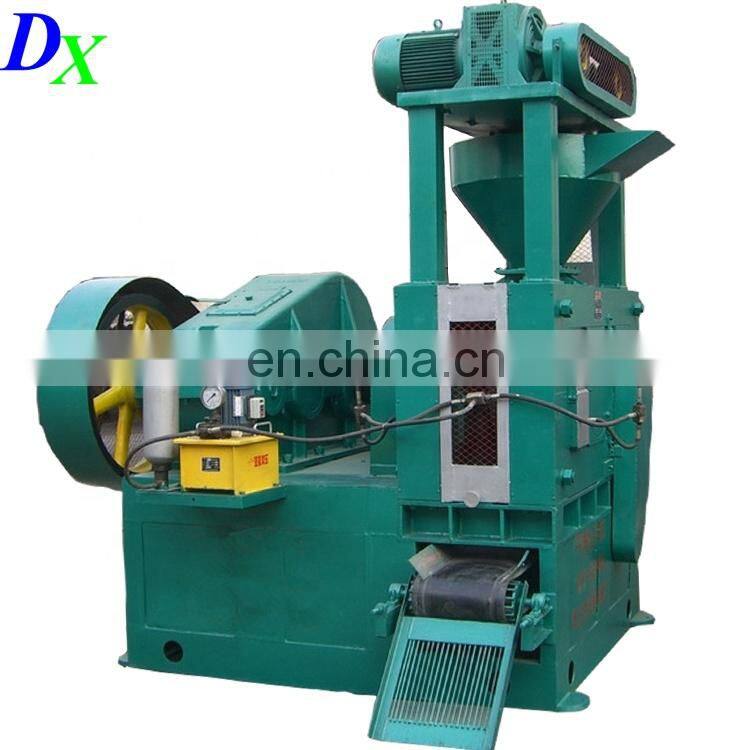

3.high pressure(hydraulic)wood charcoal making machine: also called dry powder ball press machine,which is used for Mineral powder, metal powder, coal powder, coke powder and other materials
We have 380, 520, 650, 750, 850, 1000 models
Structure of wood charcoal making machine:
1, the feeding part, is used to feed material so that the material can feed to roller evenly ,it is drived by Spiral comprises electromagnetic motor.
2. The transmission part, main transmission system is: Motor - triangle belt - reducer - Open Gear - roll.
3. Forming part, mainly refers to the part of the host machine, its core part is roller.
Raw material requirements of wood charcoal making machine:
coal powder, charcoal powder, metallic powder (FeSi powder), iron scale, iron sludge, precipitator dust, iron concentrate, raw material powder, manganese ore fines, slime peat, fireproof material, desulfurized gypsum
>>1.Materials size should be less than 3mm.If the size is larger than 3mm,crush them first;
>>2.Moisture requirement a. for powerful type, 10%-15%; b. for hydraulic type, <6%
Data of wood charcoal making machine:
Different rollers of wood charcoal making machine:
The material of roller is: 65Mn or 9Cr2Mo.
a. common briquette machine uganda:the roller material is 65Mn.
b. hydraulic briquette machine uganda: the roller material is 9Cr2Mo. Both is wear resisting material.
It can service 10-12months(depends on your used raw materials)

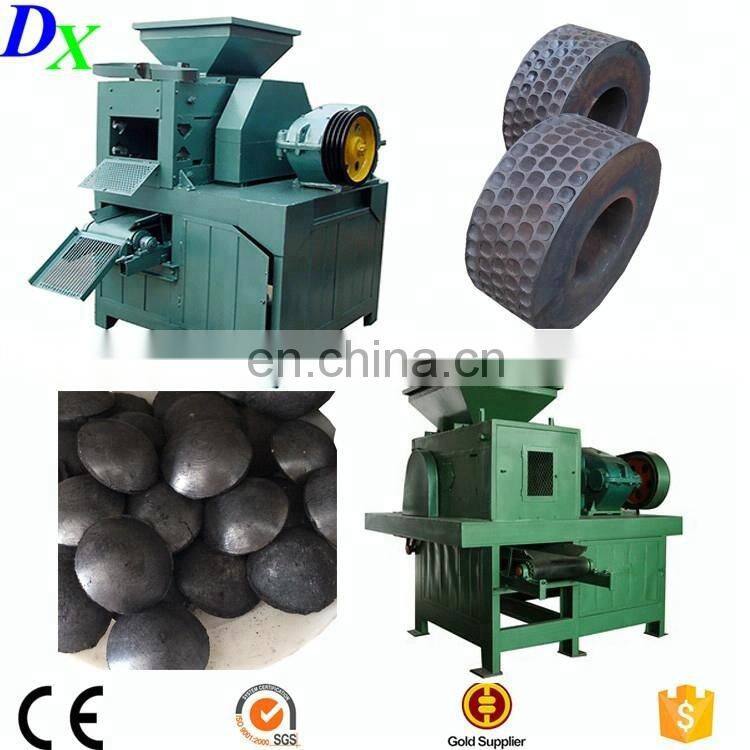

65Mn roller and 9Cr2Mo roller of wood charcoal making machine:
Prodcution line of wood charcoal making machine:
Final products of briquette machine uganda:
Package and delivery of briquette machine uganda:
Normally, we package briquette machine uganda by plastic film at the first step to avoid rust, then using fulmigation free wooden case to package.
In this way, the machine will not rust or damage during shipping.
Our service of briquette machine uganda:
Pre - sales service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After - sales service:
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ:
-- What materials can i use?
Charcoal powder / charcoal dust: raw material powder, silicomanganese alloy, etc.
Coal: Coal powder, middle coal, slime peat, coke powder, lignite etc.
Other material: fireproof material, desulfurization gypsum, dolomite etc.
--- Which shape does your machine produce?
The final shape can be customized by your request.But it is ball or pillow shape.
--- Do i need to mix binder to press?
Yes, you can mix binder or combustion improver. But the binder depends on your material.
The most common binder is starch. It will not influence briquette quality.
