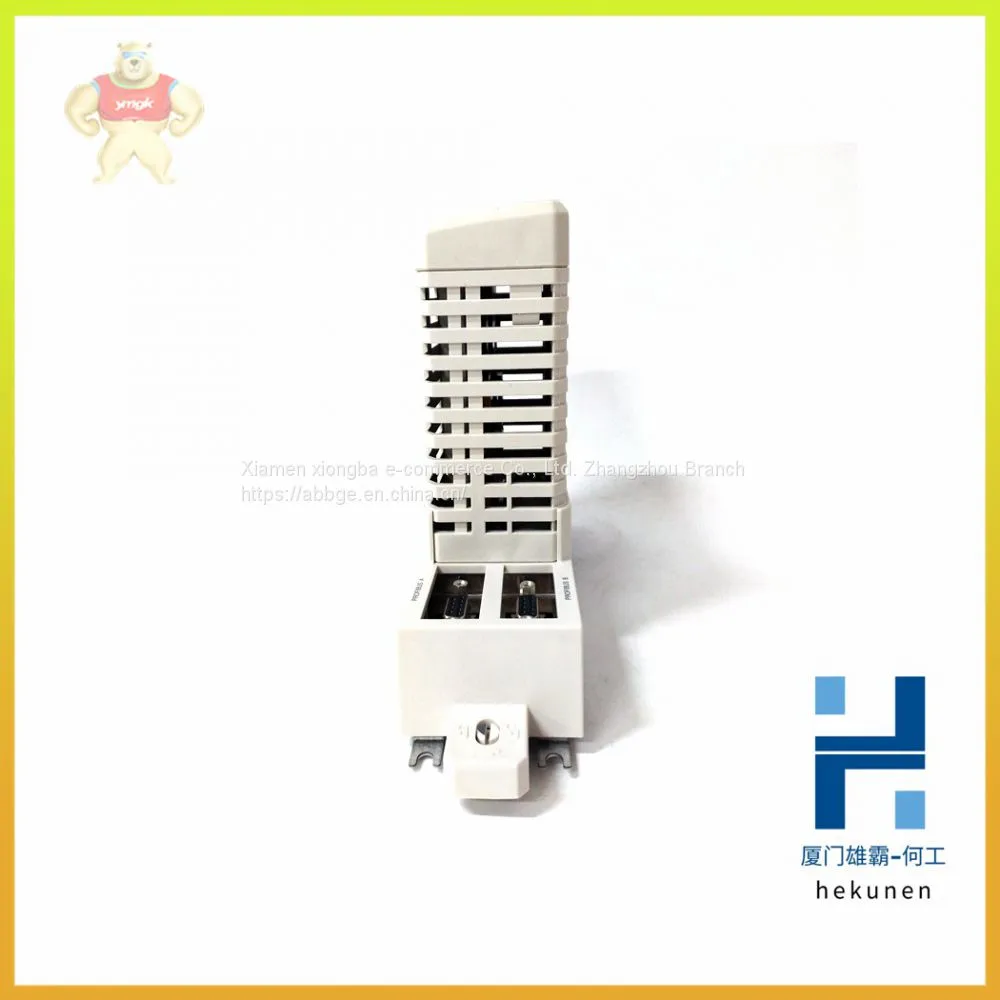

ABB new DCS module ci868k01-ea control system module 3bse048845r2 bargaining
ABB new DCS module ci868k01-ea control system module 3bse048845r2 bargaining
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
The NGC is designed for connection to a 12VDC or 24 VDC power source. The 12
volt power source must provide a minimum of 10.5VDC to a maximum of 16VDC
at 4 amps minimum, and the 24 volt must provide a minimum of 21VDC to a
maximum of 28VDC at 2.2 amps. The configurations with the auxiliary feedthrough heater increase the requirements.
Adequate wire size is a function of the distance between the NGC and the DC
power supply. When running wiring from the power source to the NGC,
consideration must be given to the voltage dropped between the power source
and the NGC. Smaller wire gauges have greater resistance and, therefore, a
greater voltage drop across the wiring. The following tables (see Table 1–4 and
Table 1–5) document multiple cable sizes and corresponding maximum cable
lengths for DC and AC installations with and without the auxiliary feed-through
assembly heater.
Additional devices connected to the NGC and requiring power (XMVs, radios, etc.)
must be factored into this calculation. Refer to their technical specifications for the
requirements of each, or call Totalflow for help computing cable requirements for
additional loads.
