Cbk low price china auto cleaning equipment car washing machine with Chassis wash function with magic triple foam

FOB Price

US$ 30200 - 30200 / Piece

1 Piece(Min. Order)

Port dalian
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CBK	Place of Origin	China
Model Number	308	Material	Hot-dip galvanized frame
Size	L7.0MW3.8MH3.1M

Product Description

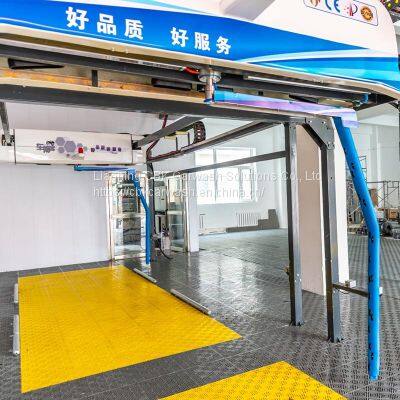

Model No. : CBK308

CBK308 is a smart car washer. It Intelligently detects the three-dimensional size of the car, Intelligently detect the three-dimensional size of the vehicle and clean it according to the size of the vehicle.

Product Superiority:

1.Separation of water and foam.

2.Separation of water and electricity.

3.High Pressure water pump.

4.Adjust the distance between the mechanical arm and the car.

5.Flexible Wash Programming.

6.Uniform speed, uniform pressure, uniform distance.

Min.Order Quantity:1 Set
Supply Ability:300 Sets/Month

Product Features:

1.Spray the car wash foam at 360 degrees.

2.Up to 12MPa high-pressure water can easily remove the dirt.

3.Complete 360° rotating within 60 seconds.

4.Ultrasonic precise positioning.

5.Automatic computer control operation.

6.Unique embedded fast air drying system.

Main Function Introduction:

main function	Instruction
Operation mode, four 90° turns	The robotic arm walks 360° around the body, and the angle of the four corners is 90°, which is closer to the vehicle and shortens the cleaning distance.
Flush chassis and hubs system	Equipped with the function of cleaning the chassis and wheel hub, the nozzle pressure can reach 8-9 MPa.
Interated chemical mixing system	Automatically adjust the ratio of a variety of liquids, including: ordinary car washing liquid, water flooding coating wax, and no-scrub car washing liquid.
High pressure flushing (standard/strong)	The water pressure of the water pump nozzle can reach 10 MPa, and the robot arms of all equipment wash the body at a constant speed and pressure. Two modes (standard/power) can be selected.
Water wax coating	A macromolecular chloride is generated in the car body, which plays a role in preventing acid rain, pollution, and ultraviolet rays.
Built-in compressed air drying system (all-plastic fan)	The built-in air-drying system is equipped with four 5.5 kW fans, which can effectively air-dry the whole body of the vehicle, and there is no dead angle in 360 degrees.
Intelligent 3D detection system	Equipped with advanced ultrasonic sensors, smart photoelectric sensors and closed-loop controllers, it uses an accurate closed-loop detection system to detect the length of the vehicle to ensure stability, safety, and energy saving.
Intelligent electronic collision avoidance system	Carry out vehicle cleaning under the premise of ensuring safety, and carry out safety protection for various emergencies.
Parking guidance system	Guide the vehicle to park by reminding lights to avoid danger.
Security alarm system	When the equipment fails, the light and sound will prompt at the same time, and the equipment will stop running at the same time.
Remote control	Through the Internet of Things technology, complete remote startup, shutdown, reset, diagnosis, upgrade, operation, remote liquid level monitoring and other operations.
Standby mode	If the device is not used for a long time, it will automatically enter the standby state, which can reduce the energy consumption of the device in the idle state by 85%.
Fault self-check	When the equipment is abnormal, start the self-check and alarm procedures, identify the cause of the fault and record the fault code, which is convenient for query and maintenance.
leakage protection	It is used to protect the staff who may get an electric shock in the event of a leakage fault. At the same time, it has overload and short-circuit protection functions, which can be used to protect the circuit and the motor from overload and short-circuit.
A free upgrade	The program version is free to upgrade for life, so that your car washing machine will never be outdated.
Strengthen the front and rear washing	The German PINFL high-pressure industrial water pump is used to ensure that the nozzle water pressure reaches 10 MPa, which can truly achieve high-pressure washing and sweep stubborn stains.
Water and electricity separation water foam separation	No electrical appliances are exposed to the outside of our mainframe rack, and put the control box and wires in the storage room. This ensures safety and reduces failures.
Separation of water and foam	We set up two pipelines to spray water and foam separately, the single foam tube we designed is more than 2/3 less wasteful than the ordinary car washing machine.
Direct drive system	The use of new direct drive technology has greatly improved the energy saving, safety and stability of the equipment.
Bubble waterfall(Add this feature for another $550)	Color foam spraying to form a waterfall, achieving high cleaning effect.
Hot dip galvanized frame double anticorrosive	The overall hot-dip galvanized frame is anti-corrosive and wear-resistant for up to 30 years, and can be simply adjusted according to the installation height.
L arm can move left and right, automatic measurement of vehicle width	Through intelligent measurement, the cross arm is moved to a distance of 35cm from the vehicle body to realize the close-to-cleaning of the vehicle body.
Clean the rearview mirror	The spray head sprays liquid at a 45° angle, easily flushing the rearview mirror and other angular positions.
Frequency conversion energy saving system	Advanced frequency conversion technology realizes the stage adjustment of chassis flushing water pressure, body flushing water pressure, and body drying air pressure. Various pressures can be adjusted according to the adjustment of climate and temperature to achieve the maximum optimization of energy saving and cleaning effects.
Oil free (reducer , bearing)	Equipped with NSK bearings originating in Japan as standard, which is oil-free and fully sealed, and is maintenance-free for life.

Introduction of Product Operation Steps:

Step 1 Chassis wash

Adopt Germany PinFL advanced industrial water pump, international quality, real water knife high pressure washing

Step 2 360 spray shampoo

CBK308 intelligent touchfree robot car wash machine can automatically mix the car wash liquid according to the customer’s requirement,and spray the shampoo sequentially

Step 3 High pressure washing

High quality stainless steel 25 degree sector spray, water saving and powerful cleaning is not contradictory

Step 4 Colorful Foam

Rich bubble is evenly sprayed in every place of the body, for better visual effect, so that the car wash effect is better and the car paint maintenance

Step 5 Wax rain

Water wax can form a layer of high molecular polymer on the surface of the car paint. If there is a layer of protective cover for the car paint, it can effectively prevent acid rain and pollution

Step 6 Air dry

The built-in all plastic fan works with 4 pcs 5. 5KW. Enlarged vortex shell design, air pressure is greater, air drying effect is better

Product Features:

Main Configuration:

The Installation:

Installation Diagram:

Company Profile:

CBK Workshop:

Enterprise Certification:

Ten Core Technologies:

Technical Strength:

Policy Support:

Application:

National Patents:

Anti-shake, easy to install, non-contact new car washing machine

Soft protection car arm for solving scratched car

Automatic car washing machine

Winter antifreeze system of car washing machine

Anti-overflow and anti-collision automatic car washing arm

Anti-scratch and anti-collision system during operation of car washing machine

FAQ:

1. What's the layout dimensions required for CBKWash installation ? ( Length×width×height )

CBK108:6800mm*3650mm*3000mm

CBK208: 6800mm*3800mm*3100mm

CBK308:8000mm*3800mm*3300mm

2. What is your biggest car wash size?

Our biggest car wash size is:5600mm*2600mm*2000mm

3. How long does your car washing machine take to clean a car?

Depending on the steps set in the car wash process, it takes 3-5 minutes to wash a car
