Product Description

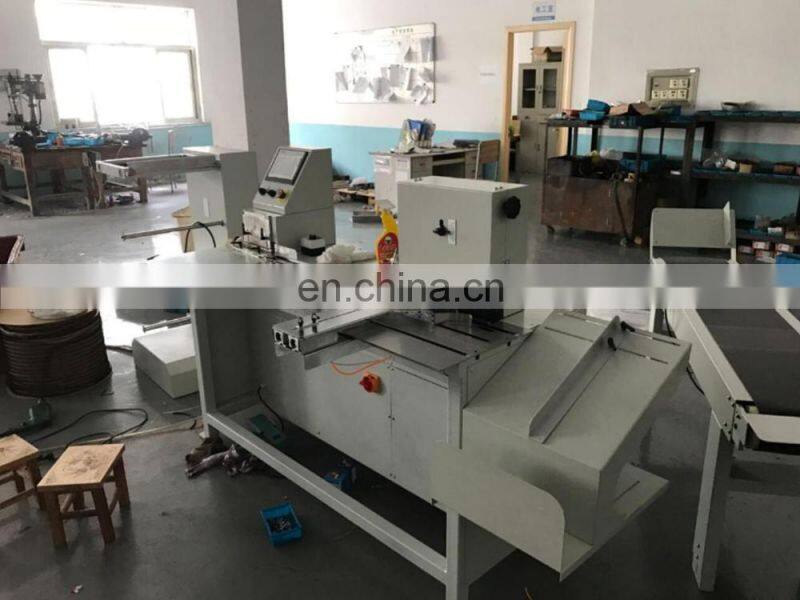

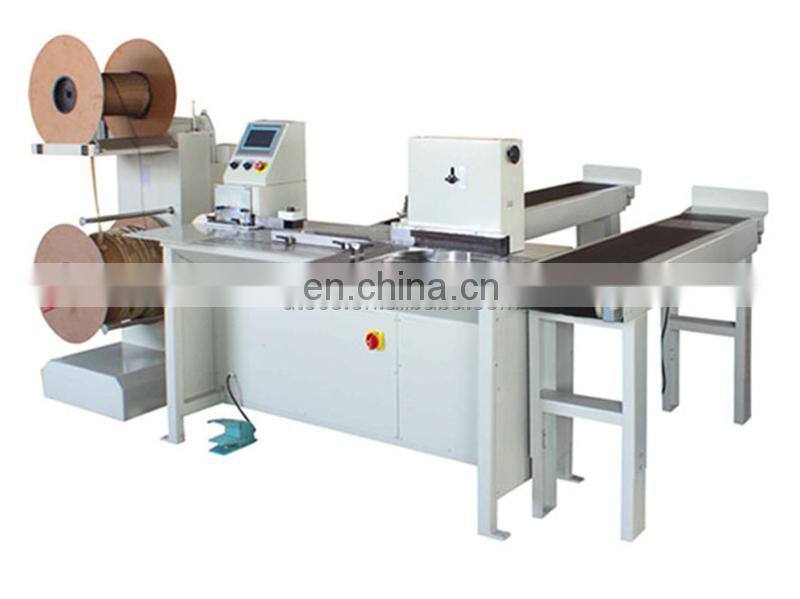

UT360 Automatic Double o Wire Binding Machine No Mold Required for notebook calendar book album
Video demonstration only for reference
Video 01: /watch?v=8k_bWwKDJNk
Video 02: /watch?v=j_L8P51hTSU
Features:

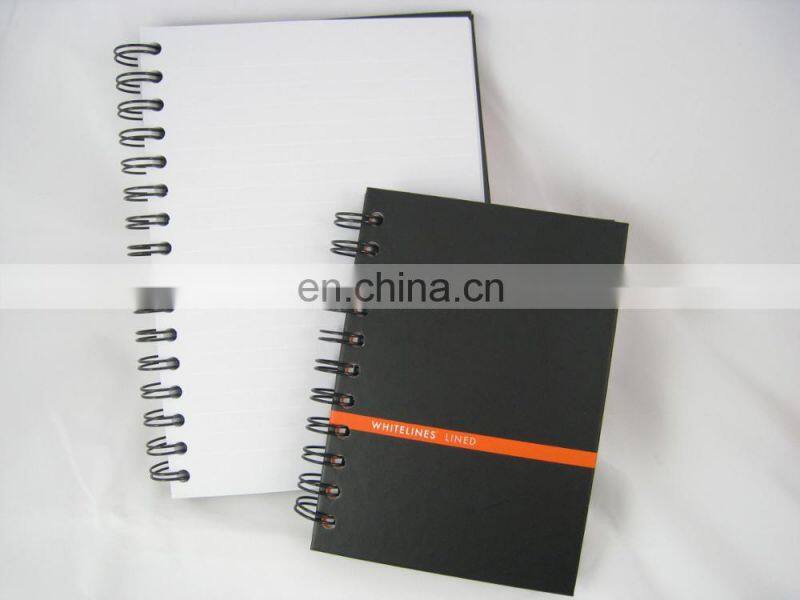

The machine is used for binding double wire books, notebooks, wall calendars, etc. It can bind 1/4" -1 1/4" without changing binding tools. With the integration of automatically unwinding the spool, loops cutting, conveying and closing, it increased the production efficiency and lowered the cost remarkably.
Advantages:
1, PLC control system equipped for easy operation and adjustment
2, There are no tools to change as the closing press is adjustable for all the diameters.
3, Especially suitable for binding the notebooks which the cover is bigger than inner sheet
Parameters:
Speed:Up to 1000 Volume/Hour
Air Pressure:5-8Kgf
Wire Diameter:1/4'' -1 1/4''
The max width of binding:360mm(14.2'')
Electric power:1PH 220V 50/60HZ (other voltage on request)
Main machine:2020*950*1250mm
Feeding reel:780*560*1200mmx
Conveyor:2160*370*700mm
Net weight:300Kg
Wire Specification:
Size | Pitch | Back Ground(mm) | Wire Diameter(mm) | Binding Thickness(mm) | Binding Page(Page) |
1/4 | 3:1 | 4.0*4.0 | 6.4 | 4.9 | 45 |
5/16 | 3:1 | 4.0*4.0 | 7.9 | 6.3 | 60 |
3/8 | 3:1 | 4.0*4.0 | 9.5 | 7.9 | 75 |
7/16 | 3:1 | 4.5*4.5 | 11.1 | 9.5 | 85 |
1/2 | 3:1 | 4.5*4.5 | 12.7 | 10.9 | 100 |
9/16 | 3:1 | 4.5*4.5 | 14.3 | 12.2 | 120 |
5/8 | 2:1 | 5.0*5.0 | 15.9 | 13.4 | 130 |
3/4 | 2:1 | 5.0*5.0 | 19.1 | 16.6 | 160 |
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1. What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min
B: Paper thickness in GSM
C: Some photos of your finished products
2. Are you a manufacturer
Yes we have been manufacturing such machines over 10 years and also we are a professional exporter.
3. What about the payment term?
Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents.
4. What is the warranty?
Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5. What is your aftersale service?
Any questions will be responded within 24 hours by email, skype, phone call or whatsapp. In addtion, we have professional engineer available for overseas service.
6. What is the delivery time?
Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
