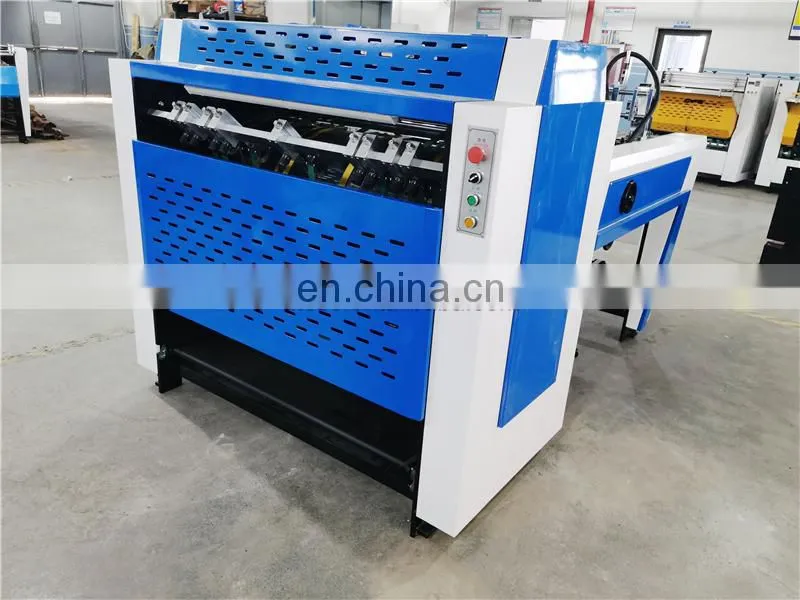

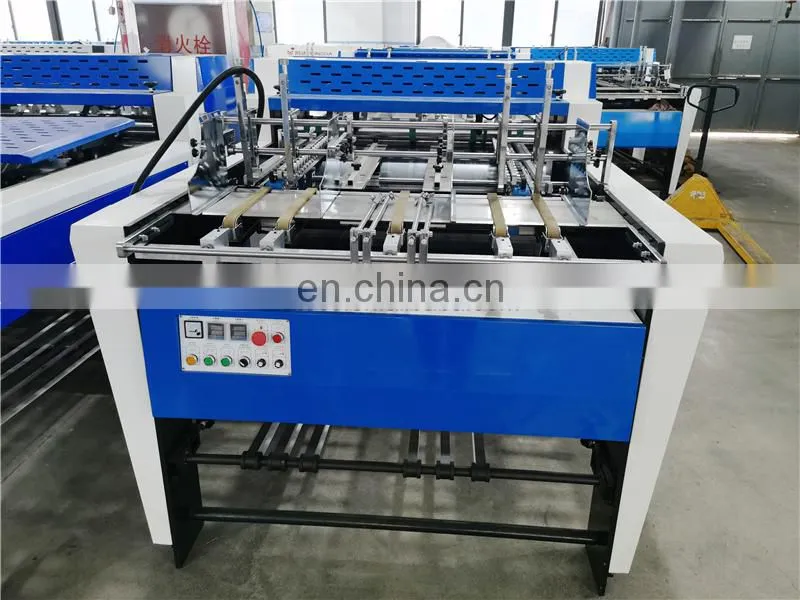

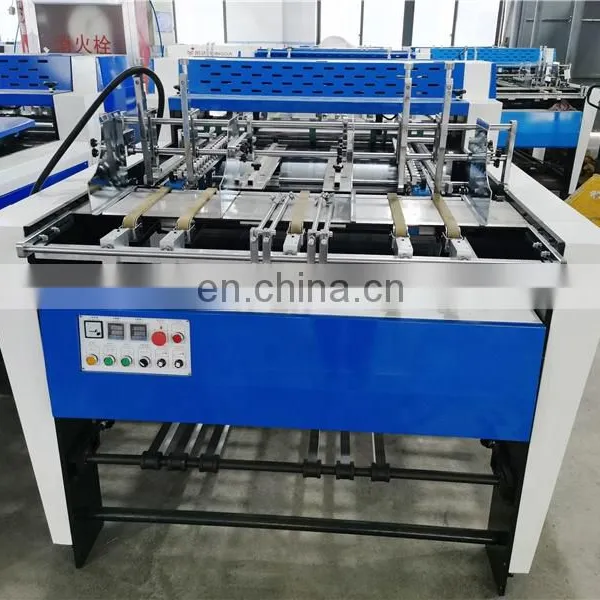

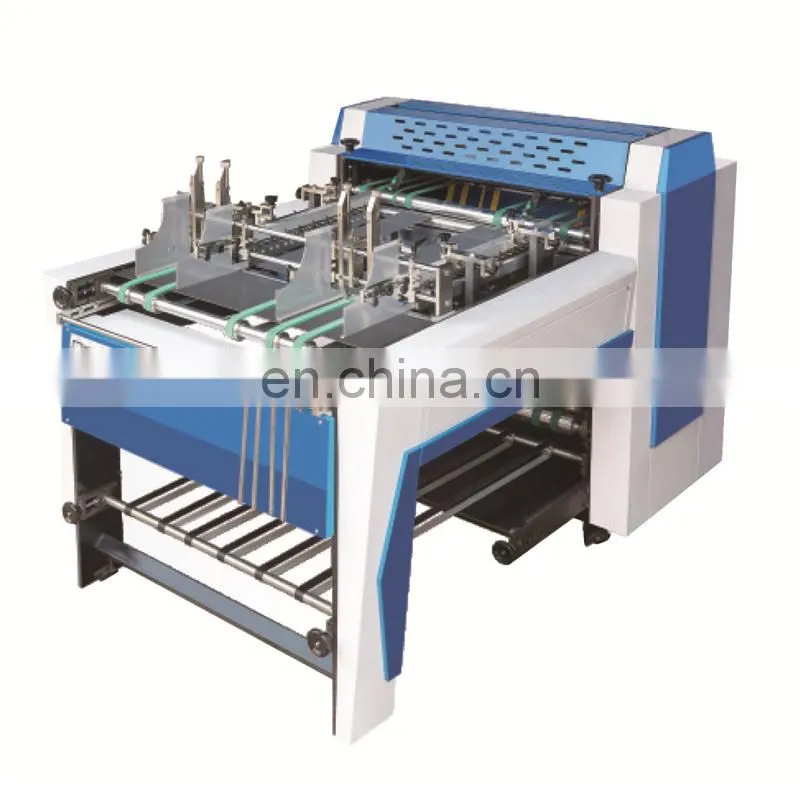

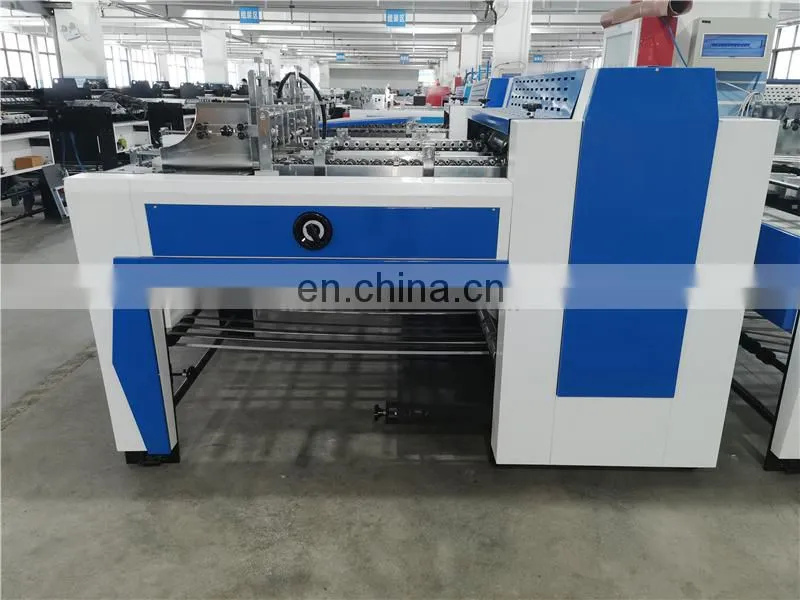

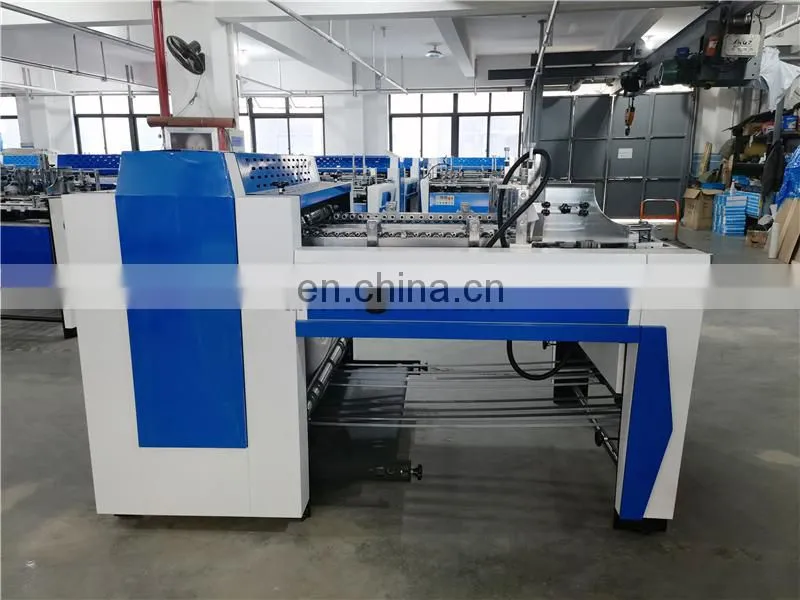

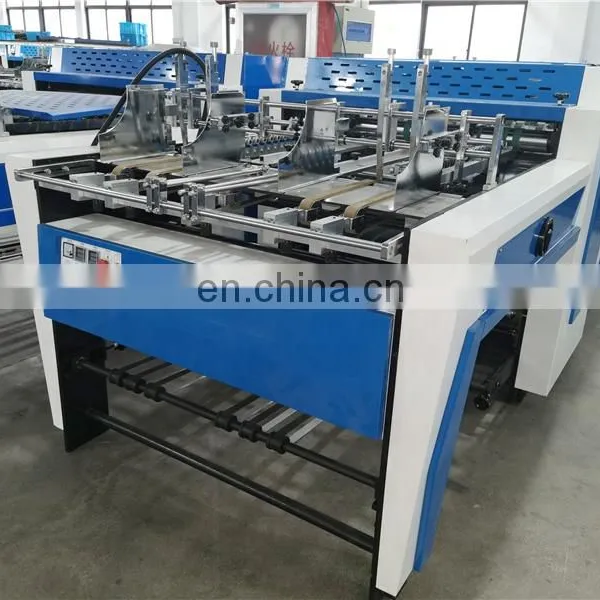

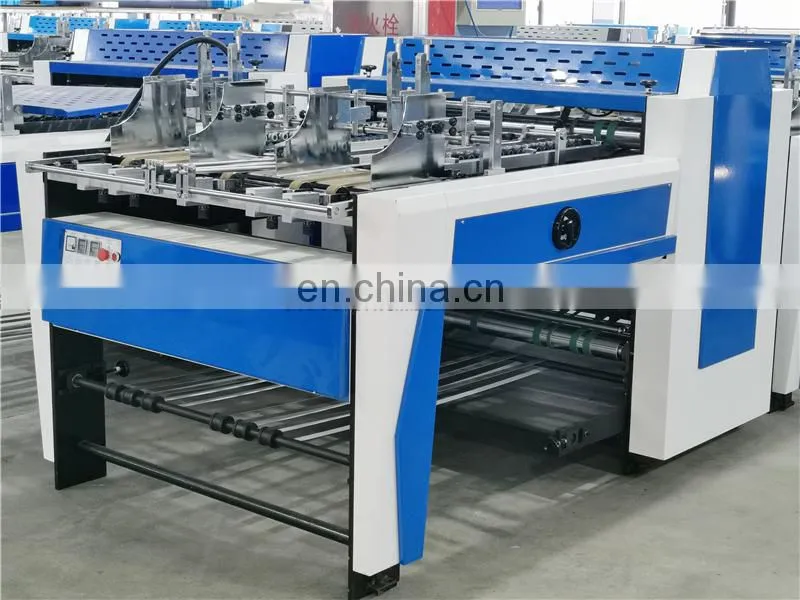

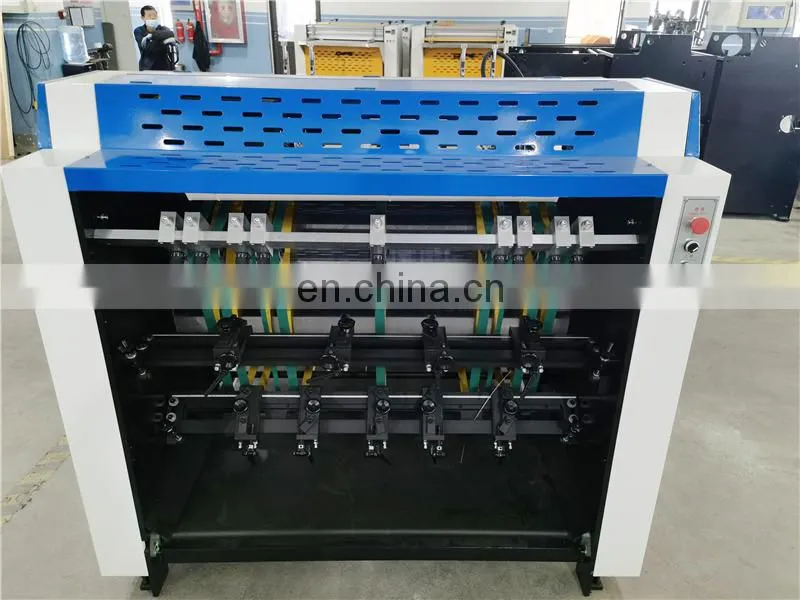

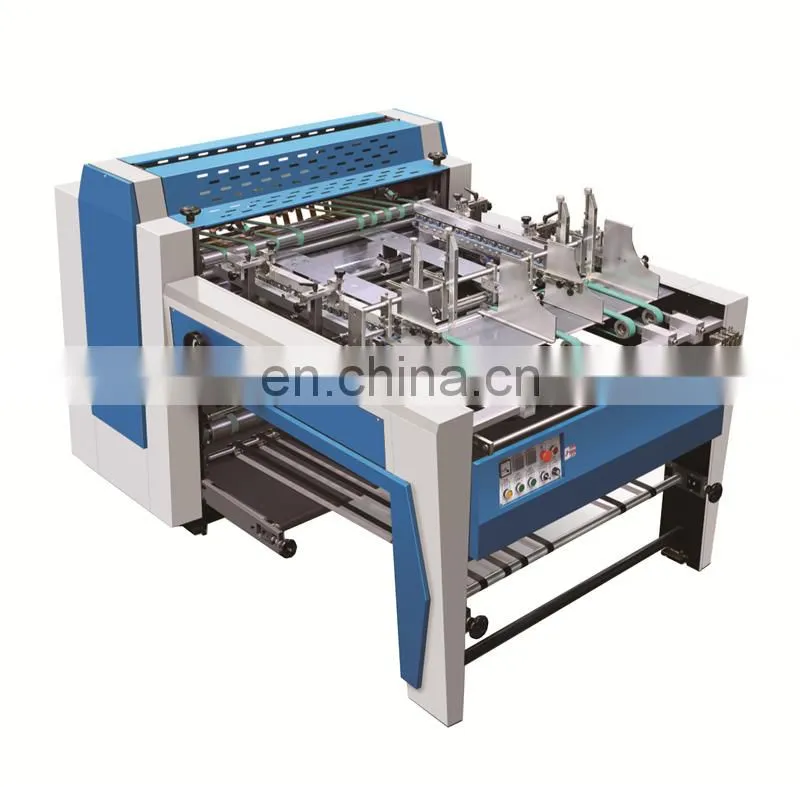

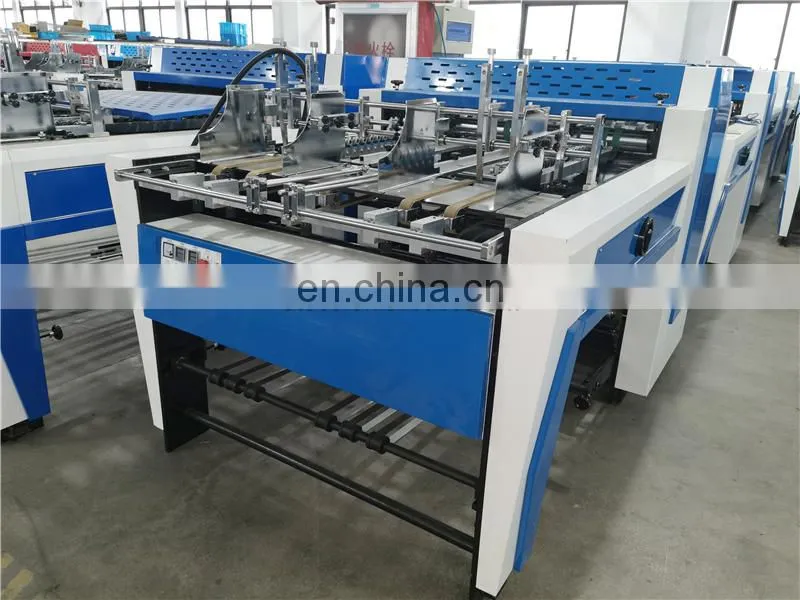

BG1000A Automatic MDF Grey Board cardboard Rigid Box V slot Grooving notching Machine
Description

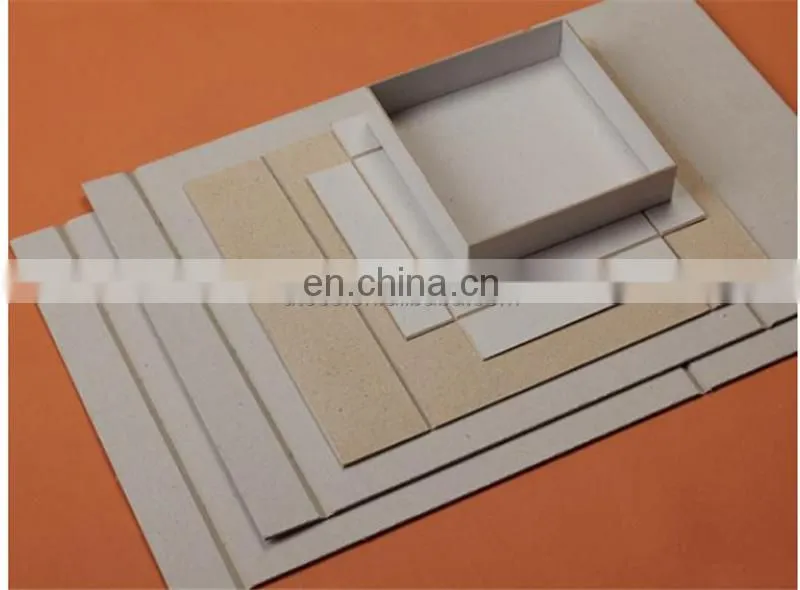

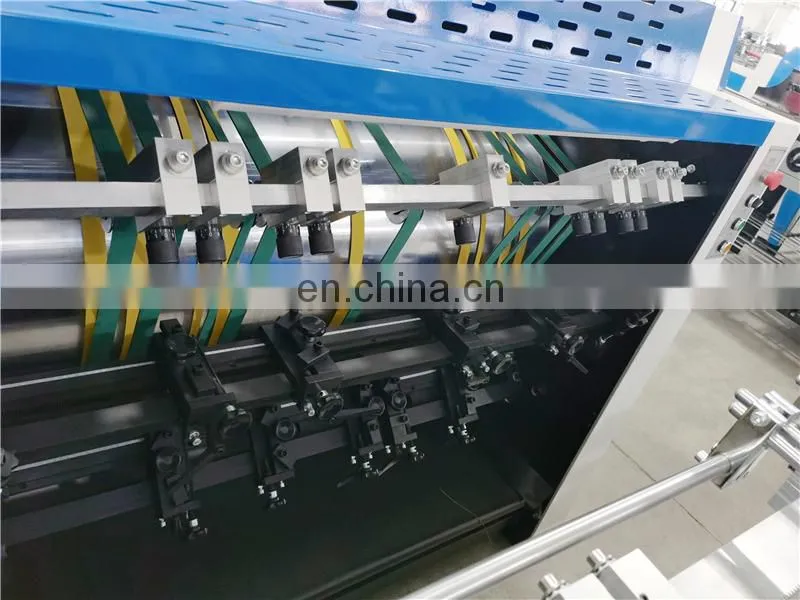

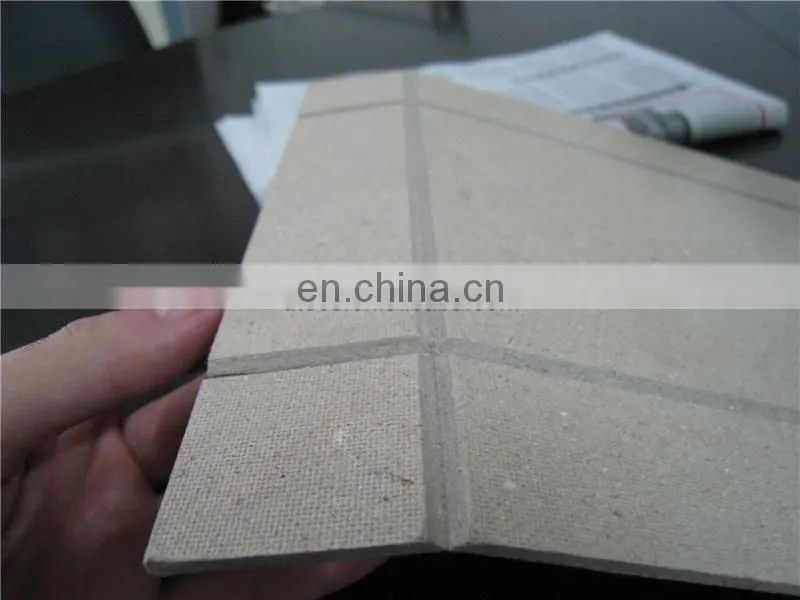

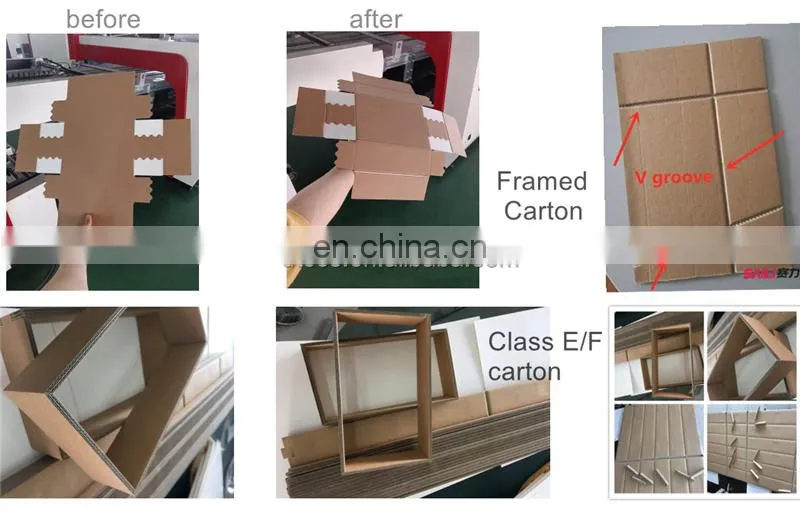

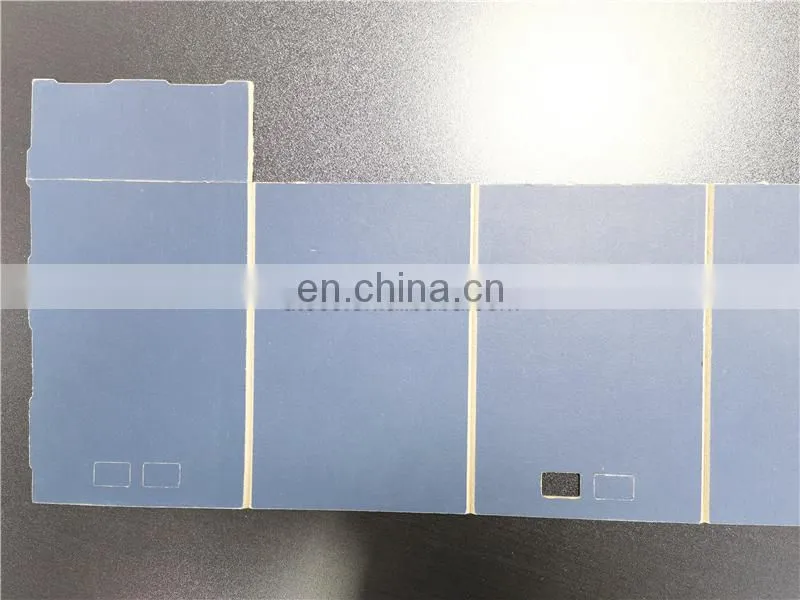

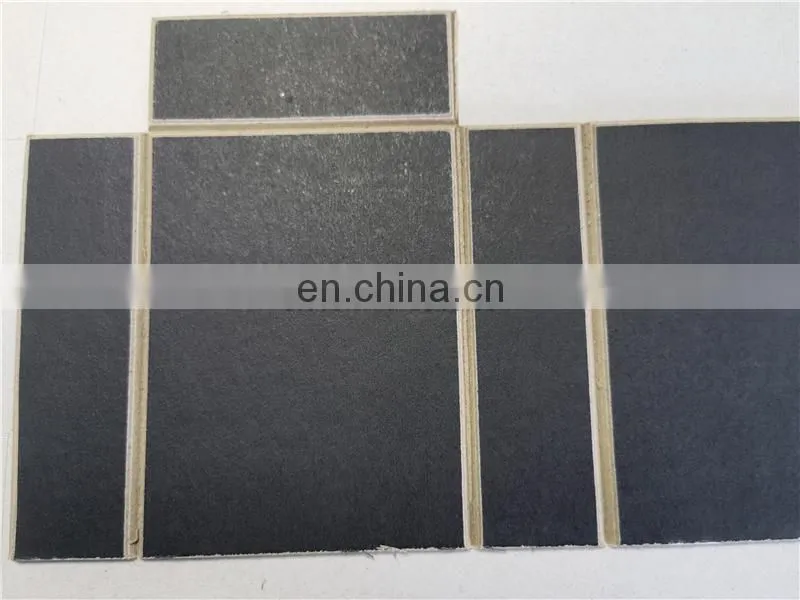

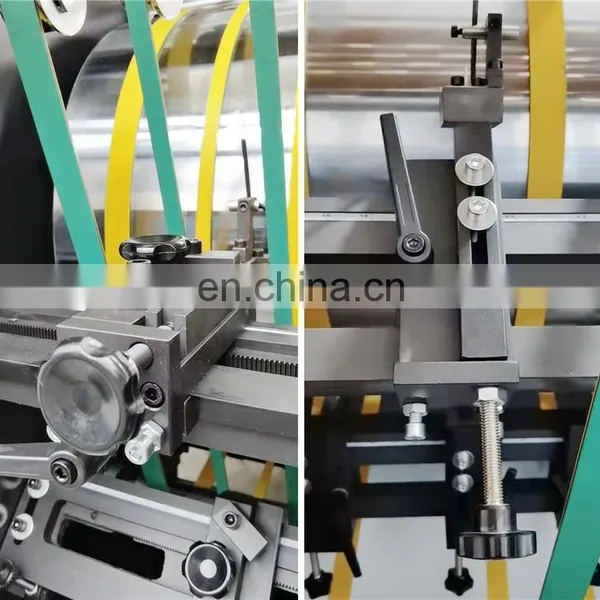

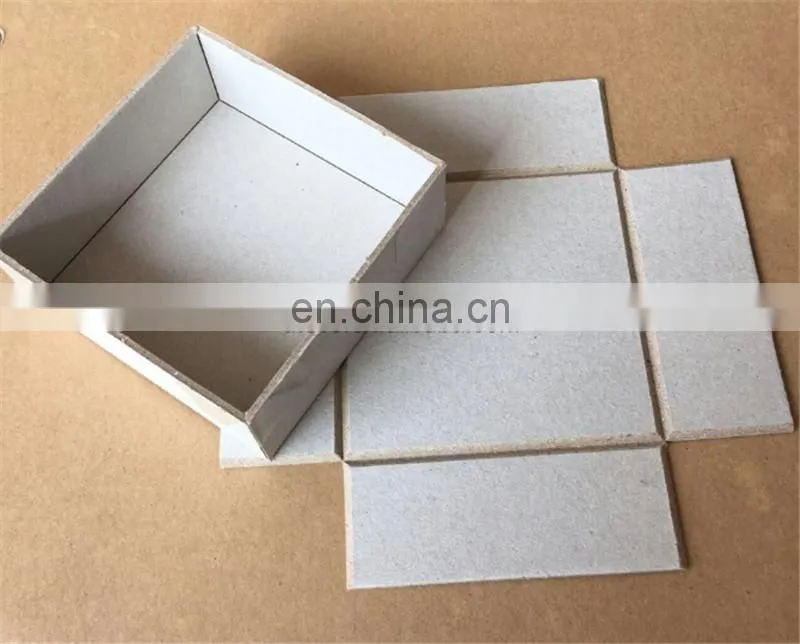

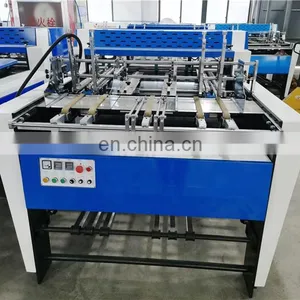

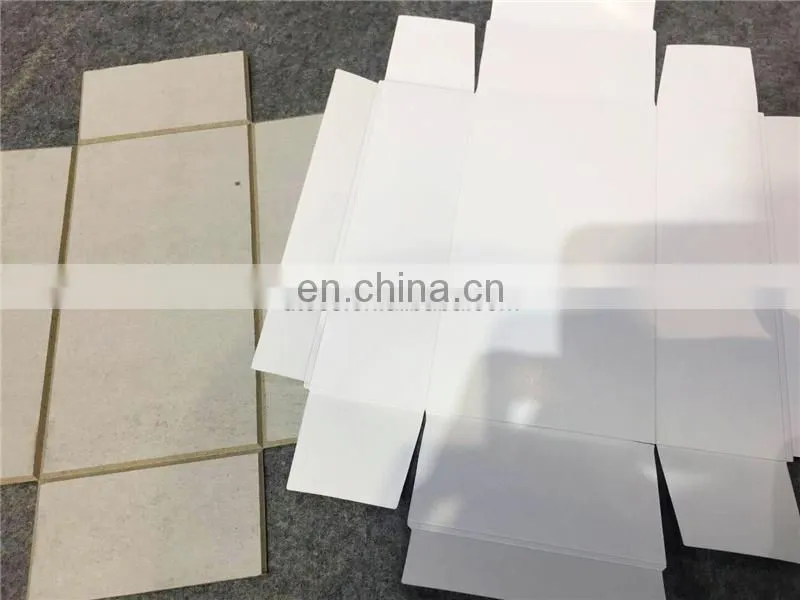

The machine is specially designed to cut V type groove on different paperboards such as industry-cardboard, gray cardboard and MDF board etcc. It adopts automatic feeder to increase the board grooving efficiency. Wrap the cardboard on the entire surface of the roller, It can guarantee the groove more accurately, no deviation and straightly. The machine has the features of high accuracy, fast speed and durable cutting blade.
Features:
1, Gray board feeding automatically
2, Low noise and dust during the grooving job
3, Smooth grooving with high precision
4, An economic grinding machine equipped with the machine

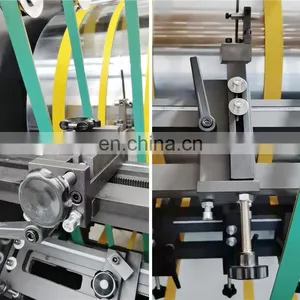

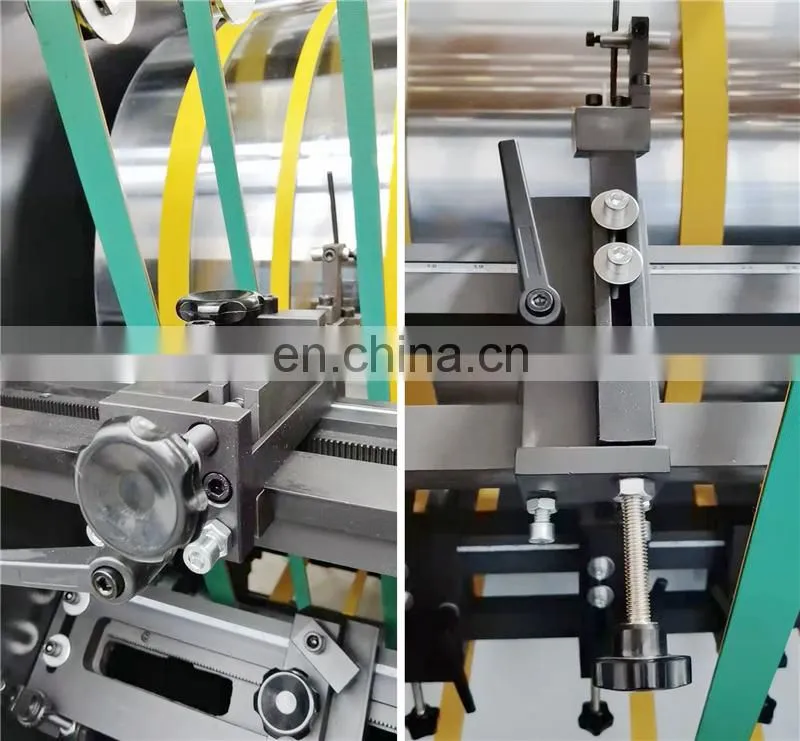

5, Slot angle can be adjusted to fit different box requirement.
Parameters:
|
Model |
BG1000A |
BG1200A |
|
Board width |
130-930mm |
130-1130mm |
|
Board length |
130-550mm |
130-550mm |
|
Board thickness |
300GSM-4mm |
300GSM-4mm |
|
Mini Grooving gap |
2mm |
2mm |
|
Grooving degree |
80-140 degree adjustable |
80-140 degree adjustable |
|
Grooving number |
9 pcs one time |
9 pcs one time |
|
Speed |
30-40pcs/min |
30-40pcs/min |
|
Power |
3.0kw/380V |
3.0kw/380V |
|
Weight |
1500kg |
1600kg |
|
Dimension |
2400x1500x1500mm |
2400x1700x1500mm |
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
