USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine With Magnetic Cylinder

USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine With Magnetic Cylinder photo-1
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine With Magnetic Cylinder photo-2
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine With Magnetic Cylinder photo-3
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine With Magnetic Cylinder photo-4
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine With Magnetic Cylinder photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2006
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder

Videos

Video demonstration only for reference

Video 01: /watch?v=HXz5RahQm1I

Video 02: /watch?v=5MdOu7tsDws

Product Description

Features:

1, This label slitting machine is equipped with accurate rotary die cutting system.

2, Quite suitable to die cut and slit blank adhesive labels in just one pass

3,  Automatic label counting, automatic stopping and web guiding by photoelectric sensors.

4, compact structure, fast speed, high efficiency, easy operation, accurate slittingand steady running etc.



Parameter:



Model

USK320A

USK450A

Slitting speed

120m/min

120m/min

Cutting Precision

±0.10mm

±0.10mm

Max web width

320mm

450mm

Max unwinding diameter

700mm

700mm

Max. rewinding diameter

600mm

600mm

Power supply

3KW, 220/380V

3KW, 220/380V

Dimension

1800*1100*1800mm

1800*1100*1800mm

Machine weight

1000kgs

1200kgs

Magnetic Cylinder

60-150T

60-150T

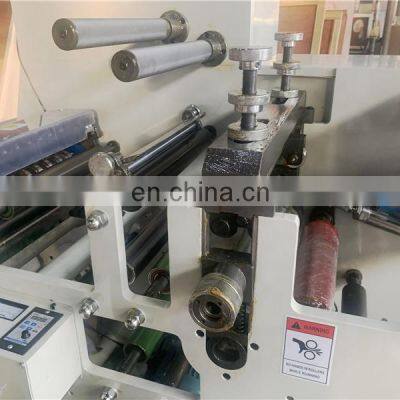

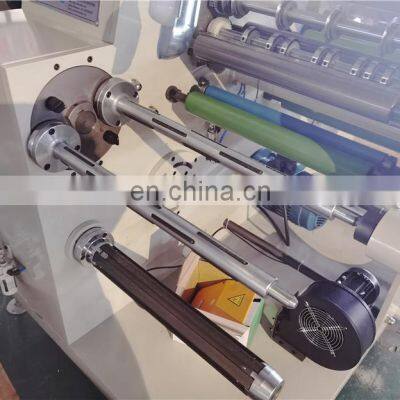

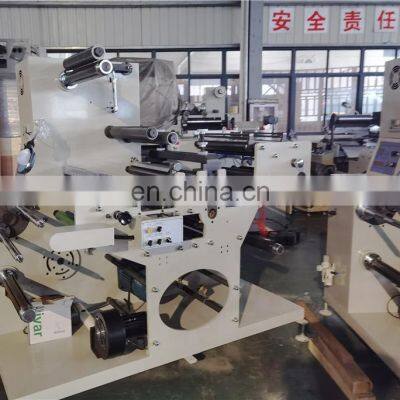

Detailed Images
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder
USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder


USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder

Service Team

USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder

 Pre-sale Service                                               After-sale Service

A: Inquiry and consulting support                       A: English manuel and video instruction

B: Sample testing support.                                 B: Your technians can get trained in my factory

C: Invoice and Contract confirmation.                C: Engineers available for overseas if necessary



FAQ

USK450A High Speed Self-Adhesive Blank Price Label Sticker Rotary Die Cutting Slitting Rewinding Machine with Magnetic Cylinder1.Q: What information should i let you know if i want to get a quotation?

A: What is your Max and Min product size in mm?

B: What is your paper thickness in GSM?

C: Some photos of your finished products

2.Q: Are you a manufacturer?

A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.

3.Q: What about the payment term?

A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..

4.Q: What is the warranty?

A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)

5.Q: What is your aftersale service?

A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679)In addtion, we have professional engineer available for overseas service..

6.Q:What is the delivery time?

A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
