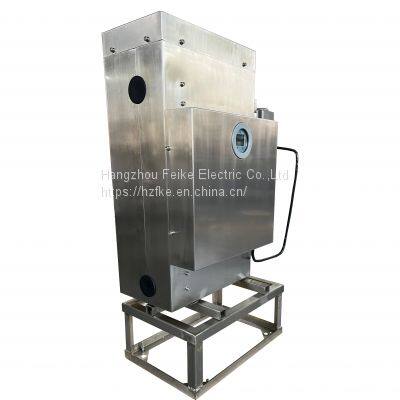

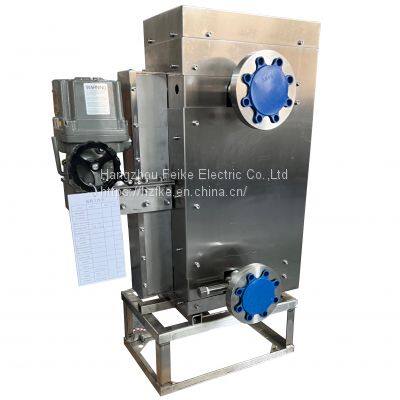

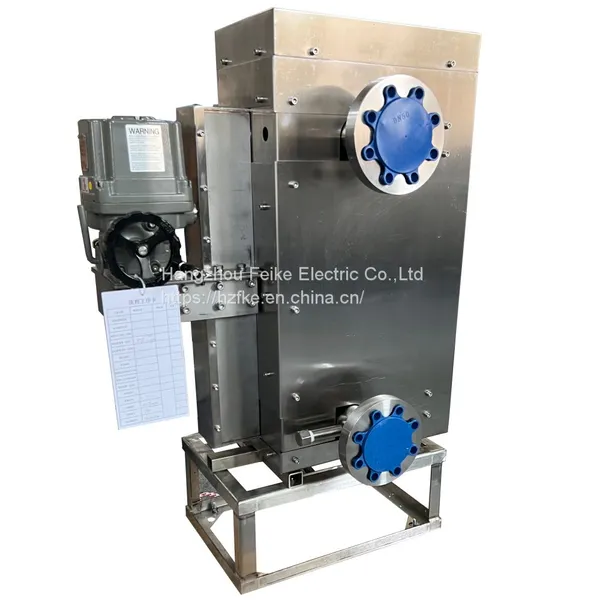

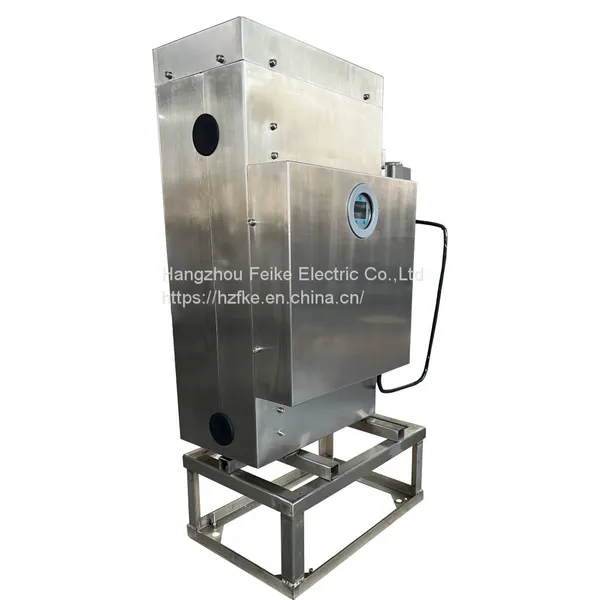

Stainless Steel Wellhead Crude Oil Water Content Analyzer

Technical parameter:
Working power supply: AC220V 50Hz or AC380V 50Hz
Operating current: ≤ 8A
Communication interface: rs485/modbusrtu communication
Local display: liquid crystal display
Electrical connection: signal m20*1.5 or g3/4 internal thread; Power g3/4 female
Ambient temperature: -40 ~ 70 ºC
Measurement accuracy: ± 3%
Measurement range: 0% ~ 100%
Installation location: wellhead / metering room pipeline
Medium: wellhead / single well oil, water and gas mixed medium

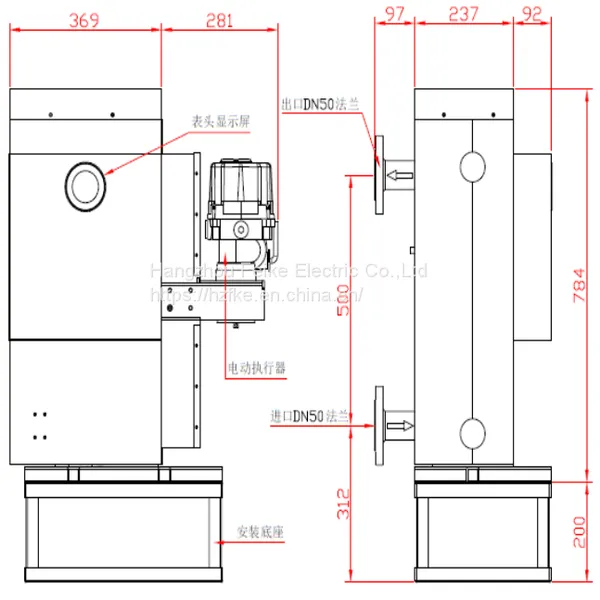

Installation method: pipe section installation, flange connection dn50pn2.5 or customized
Flange material: support customization, 304/316l/2205 duplex stainless steel
Body material: support customization, 304/316l/2205 duplex stainless steel
Wetted material: 304 stainless steel plus polytetrafluoroethylene
Design pressure: 4.0Mpa
Design temperature: 0~160 ºC
Explosion proof grade: Exdib II  ct6gb
Protection grade: IP65

Technical features:
The wellhead water cut analyzer alc05- II is generally composed of two pipe sections that are mutually bypassed. One of the pipe sections is equipped with a measuring probe, which is called the measuring pipe section, and the other section is not equipped with a measuring probe, which is called the bypass pipe section. Automatic switching between measuring pipe section and bypass pipe section. The measurement process consists of the following steps: switching sampling, preliminary measurement and analysis, heating stratification, layered scanning measurement of water content, and calculation of comprehensive water content. When the liquid flow channel is switched to the bypass pipe section, the medium originally flowing through the measuring pipe section is intercepted, and can be static, heated, layered and scanned for measurement at any set time interval. As a relatively static measurement environment is created, the stratification time of gas-liquid and impurities can be very long, with the aid of heating, so good measurement accuracy can be achieved. In addition to outputting water content measurement results, the instrument can even measure the gas-liquid ratio under working conditions.
