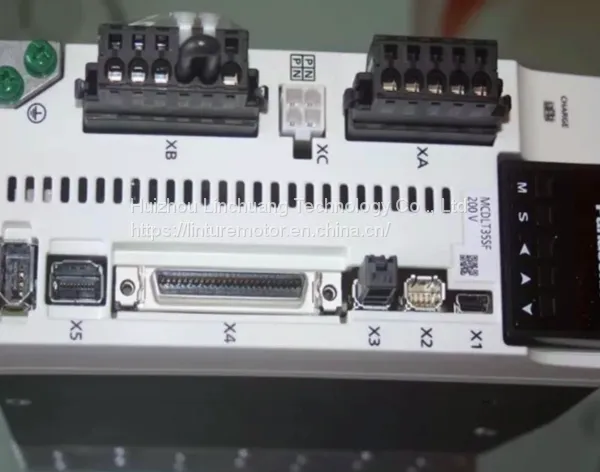

MCDLT35SF Panasonic 22A Output Current Industrial AC Servo Drive

MCDLT35SF Panasonic 22A Output Current Industrial AC Servo Drive thumbnail-1
MCDLT35SF Panasonic 22A Output Current Industrial AC Servo Drive photo-1
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Panasonic
Place of Origin:
Japan
Model Number:
MCDLT35SF
Contact Supplier Request Quote Chat Now
Huizhou Linchuang Technology Co ., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Panasonic
Place of Origin Japan
Model Number MCDLT35SF
Brand: Panasonic Modenl Number: MCDLT35SF
Country Of Origin: Japan AC Voltage: 200V
Frequency Response: 3.2 KHz Current - Output: 12A
Supply Voltage: Single/3-phase 200 V Type: Industrial Servo Drives
Series: A6SF Series

High Light: electric servo drive,ac servo drive


Panasonic MCDLT35SF MINAS A6 Family Servo Driver Single/3-phase, 200 V




Quick Detail


Part Status Active
Type Module
Motor Type Servo
Control / Drive Type Servo AC
Number of Motors 1
Voltage - Load 200V
Current - Output 22A
Wattage - Load 750W
Voltage - Supply 200VAC
Interface RS-232, RS-485, USB
Mounting Type Chassis Mount
Operating Temperature 0°C ~ 55°C
Features -
For Use With/Related Products MINAS A6 Series




Detailed Product Description


  • Manufacturer : Panasonic

  • Model : MCDLT35SF

  • Frame-size symbol : MCD = C-frame

  • Series : L = A6 series

  • Safety function : T = Safety torque off

  • Max. current rating of amp : 3 = 22 A

  • Power supply : 5 = Single/3-phase, 200 V

  • Interface specifications : S = Analog/Pulse

  • Driver specifications : F = Multi-function type

  • Dimensions, approx. (WxHxD) : 6.5cm x 15cm x 19.1cm

  • Weight : 2kg

  • Shipping Weight : 5kg


Specifications


Part Number MCDLT35SF
Details A6SF series
Multifunction type (Pulse
analog
full-closed)
with the safety function
Family Name MINAS A6
Series A6SF series
Type Multifunction type
Frame C-Frame
Frequency response 3.2 kHz
Control method Position control, Velocity control, Torque control, and Full-closed control
Safety Function With the safety function
Supply voltage Single/3-phase 200 V
I/F Classification of type Analog /Pulse, Modbus (RS485 /RS232)
Dimensions (W) (Unit: mm) 65
Dimensions (H) (Unit: mm) 150
Dimensions (D) (Unit: mm) 170
Mass (kg) 1.6
Environment For more details, please refer to the instruction manual.
