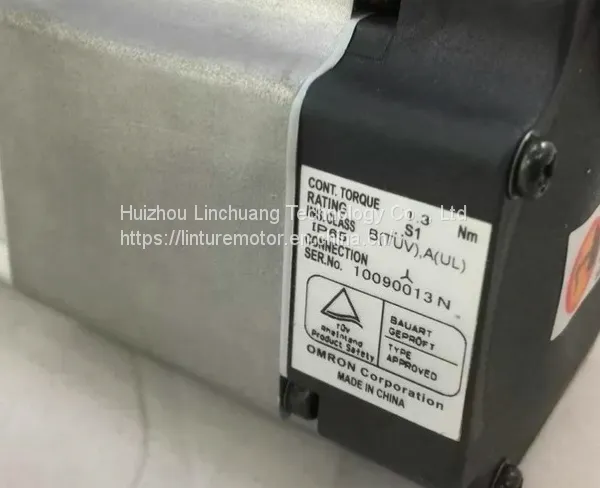

R88M-G4K020T-B-Z OMRON Controller High Speed DC Servo Control

R88M-G4K020T-B-Z OMRON Controller High Speed DC Servo Control thumbnail-1
R88M-G4K020T-B-Z OMRON Controller High Speed DC Servo Control photo-1
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
OMRON
Place of Origin:
Japan
Model Number:
R88M-G4K020T-B-Z
Contact Supplier Request Quote Chat Now
Huizhou Linchuang Technology Co ., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OMRON
Place of Origin Japan
Model Number R88M-G4K020T-B-Z
Brand: OMRON Model: R88M-G4K020T-B-Z
Origin: China

High Light: ewing machine servo motor,electric servo motor


OMRON R88M-G4K020T-B-Z AC Servomotor With ABS/INC Encoder 4kW 200 VAC Without Key / With Brake 2000rpm



2,000-r/min Cylindrical Servomotors200-VAC Input Power


Model (R88M-) G1K020T G1K520T G2K020T G3K020T G4K020T G5K020T G7K515T
Item Unit
Rated output *1 W 1000 1500 2000 3000 4000 5000 7500
Rated torque *1 N·m 4.8 7.15 9.54 14.3 18.8 23.8 48
Rated rotation
speed		 r/min 2000 1500
Max. momentary
rotation speed		 r/min 3000 2000
Max. momentary
torque *1		 N·m 13.5 19.6 26.5 41.2 54.9 70.6 111
Rated current *1 A (rms) 5.6 9.4 12.3 17.8 23.4 28 46.6
Max. momentary
current *1		 A (rms) 17.1 28.5 37.1 54.2 71.4 85.7 117.8
Rotor inertia kg·m2
(GD2/4)		 6.17
× 10-4 		1.12
× 10-3 		1.52
× 10-3 		2.23
× 10-3 		4.25
× 10-3 		6.07
× 10-3 		8.9
× 10-3
Applicable load
inertia		 --- 10 times the rotor inertia max. *2
Torque constant *1 N·m/A 0.88 0.76 0.78 0.81 0.81 0.85 1.03
Power rate *1 kW/s 37.3 45.8 60 91.6 83.2 93.5 230
Mechanical time
constant		 ms 0.7 0.81 0.75 0.72 1 0.9 0.71
Electrical time
constant		 ms 18 19 21 20 24 32 34
Allowable radial load
*3		 N 490 490 490 784 784 784 1176
Allowable thrust
load *3		 N 196 196 196 343 343 343 490
Weight Without
brake		 kg Approx.
6.8		 Approx.
8.5		 Approx.
10.6		 Approx.
14.6		 Approx.
18.8		 Approx.
25		 Approx.
41
With brake kg Approx.
8.7		 Approx.
10.1		 Approx.
12.5		 Approx.
16.5		 Approx.
21.3		 Approx.
28.5		 Approx.
45
Radiation shield dimensions
(material)		 275 × 260 × t15 (AI) 380 × 350
× t30 (AI)		 470 × 440 × t30 (AI)
Applicable Servo Drives
(R88D-)		 GT10H GT15H GT20H GT30H GT50H GT50H GT75H
Brake
spec-
ifica-
tions		 Brake
inertia		 kg·m2
(GD2/4)		 1.35 × 10-4 4.25
× 10-4 		4.7
× 10-4 		4.7
× 10-4
Excitation
voltage *4		 V 24 VDC ± 10%
Power
consumption
(at 20 °C)		 W 14 19 19 22 26 31 34
Current
consumption
(at 20 °C)		 A 0.59 0.79 0.79 0.9 1.1 1.3 1.4
Static
friction
torque		 N·m 4.9 min. 13.7 min. 13.7 min. 16.1 min. 21.5 min. 24.5 min. 58.8 min.
Attraction
time *5		 ms 80 max. 100 max. 100 max. 110 max. 90 max. 80 max. 150 max.
Release
time *5		 ms 70 max. 50 max. 50 max. 50 max. 35 min. 25 min. 50 max.
Backlash
± 1 °
Allowable
work per
braking		 J 588 1176 1176 1170 1078 1372 1372
Allowable
total work		 J 7.8 × 105 1.5 × 106 1.5 × 106 2.2 × 106 2.5 × 106 2.9 × 106 2.9 × 106
Allowable
angular
acceleration		 rad/s2 10,000 max.
(Speed of 900 r/min or more must not be changed in less than 10 ms)
Brake life --- 10,000,000 operations min.
Rating --- Continuous
Insulation
grade		 --- Type F



*1. These are the values when the Servomotor is combined with a Servo Drive at room temperature (20°C, 65%). The
maximum momentary torque shown above indicates the standard value.
*2. Applicable Load Inertia:
• The operable load inertia ratio (load inertia/rotor inertia) depends on the mechanical configuration and its rigidity.
For a machine with high rigidity, operation is possible even with high load inertia. Select an appropriate motor and
confirm that operation is possible.
• If the dynamic brake is activated frequently with high load inertia, the dynamic brake resistor may burn. Do not
repeatedly turn the Servomotor ON and OFF while the dynamic brake is enabled.
• The dynamic brake is designed only for emergency stops. Design the system so that the Servomotor remains
stopped for at least 3 minutes after applying the dynamic brake. Otherwise the dynamic brake circuits may fail.
*3. The allowable radial and thrust loads are the values determined for a service life of 20,000 hours at normal operating
temperatures. The allowable radial loads are applied as shown in the following diagram.
*4. This is an OFF brake. (It is reset when excitation voltage is applied).
*5. The operation time is the value (reference value) measured with a surge suppressor (CR50500 manufactured by
Okaya Electric Industries Co., Ltd.).

Classification: resin blade axial flow fan. Power supply voltage: ac200v. Speed distinction: high speed. Wind direction: suction and discharge. Number of fan connections: 2.


Simple "one touch" axial flow fan,


The unit is equipped with 1-company, 2-company and 3-company r88m-g4k020t-b-z hand lift. The mounting hole is a square hole, which hides the structure of the hole processing surface and is easy to process. The switch cover can be selected once (it can be used in a narrow place).


Accessories enrichment (finger protection, filter, socket cover, mounting screws) r88m-g4k020t-b-z as an option is equipped with accessories for replacing filters and air suction and exhaust ports. There are 8 kinds of resin blade types and 8 kinds of metal blade types of the mounted fans, with a complete variety from 1 company to 3 company. Category: metal blade axial flow fan. Power supply voltage: AC115V. Speed distinction: medium speed.


Wind direction: - r88m-g4k020t-b-z manual. Number of fan connections: 3.


Axial flow fan with simple "one touch" installation, unit, with 1-connection, 2-connection and 3-connection


The mounting hole is a square hole, which hides the structure of the hole processing surface and is easy to process. The upper and lower switch covers can be selected (convenient for use in narrow places).


Accessories (finger protection, filter, socket cover, mounting screws). As an option, it is equipped with replacement filter and accessories for suction and exhaust ports. There are 8 types of resin blades and 8 types of metal blades for the mounted fan
