Hydrogen and Oxygen Electrolyzer of water
-PEM Electrolyzer

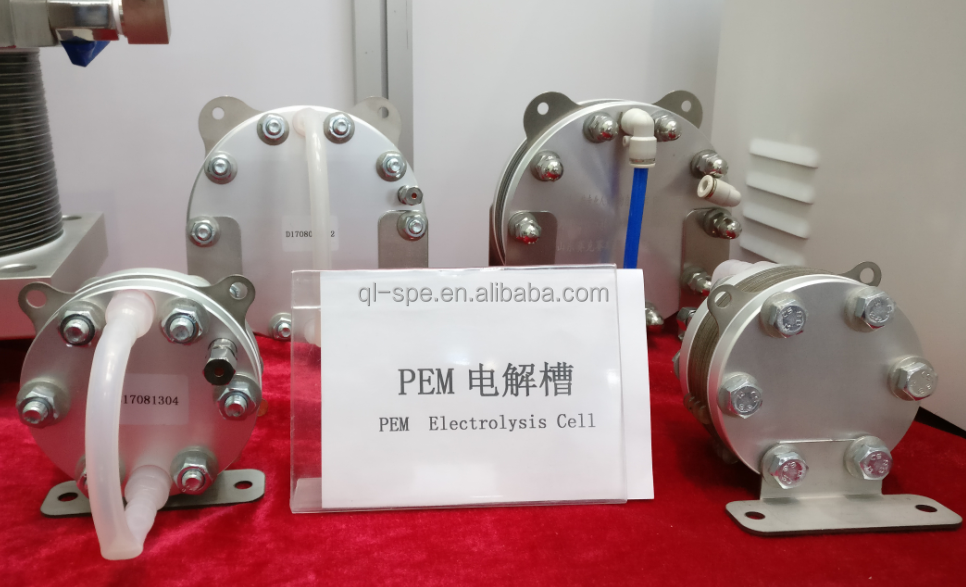

Product Introduction of PEM electrolyser hydrogen cell stack
QLC PEM electrolyser hydrogen cell stack is an advanced patented product, which are light , highly effective, energy-saving and of environmental protection , producing hydrogen and oxygen through the electrolysis of pure water (without adding alkali). That's PEM technology. The SPE electrodes, as the core of cell , are highly active catalytic electrode with nearly zero distance between the electrodes , which is formed by integrating composite catalyst with and ion membrane with high electrolytic efficiency.
Working Principle of PEM electrolyser hydrogen cell stack
The proton exchange membrane (PEM), which only allows water and positive ions to cross between compartments. The membrane also serves as the electrolyte in the cell, eliminating the need for hazardous liquid electrolytes such as concentrated potassium hydroxide. PEM water electrolysis simply splits pure deionized water (H2O) into its constituent parts, hydrogen (H2) and oxygen (O2), on either side of this membrane. When a DC voltage is applied to the electrolyzer, water fed to the anode, or oxygen electrode, are oxidized to oxygen and protons, while electrons are released. The protons (H+ ions) pass through the PEM to the cathode, or hydrogen electrode, where they meet electrons from the other side of the circuit, and are reduced to hydrogen gas. The two reactions that occur in the cell are as follows:
2.2H2O -> 4H+ + 4e- +O2
3.4H+ + 4e- -> 2H2

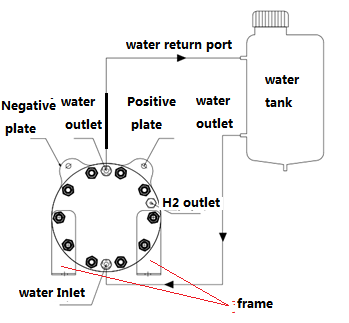

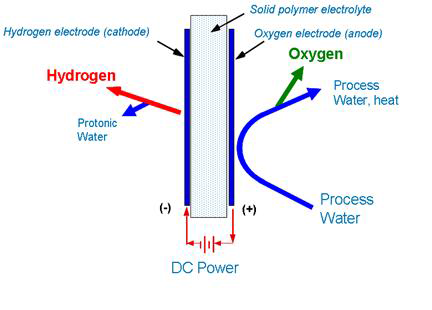

4.Thus, the only possible components of the streams are hydrogen, oxygen and water moisture, as shown in
Figure 1 below.
Application of PEM electrolyser hydrogen cell stack:
1.used for hydrogen&oxygen generator
2.used for Hydrogen Rich Water machine
3.used for helth care equpment
3.used for experiment
Technical Parameters
1. hydrogen flow: 240ml/min
2. oxygen flow:120ml/min

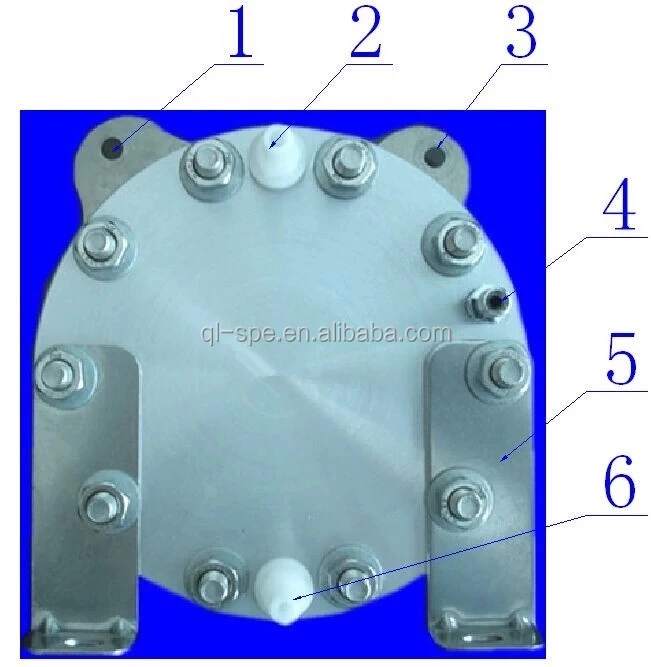

Shape Structure
1.Negative electrode
2. Oxygen and water outlet
3. Positive Electrode
4.H2 outlet
5.Fix Bracket
6.Water Inlet
Q: Are you trading company or factory?
A:we biggest PEM hydrogen equipment factory in CHina,best quality and most professional after-sale service.
Our factory located in Jinan city,Shandong province,China.
welcome your factory visit anytime.
Q:What's your advantage in hydrogen generation tech
A:Our company,Saikesaisi Hydrogen,is the earliest PEM hydrogen tech developer in China.Fisrtly established in 1993,got big investment from Saikesaisi Group in 2007 and change name to Shandong Saikesaisi Hydrogen Energy Co.,ltd.Till now Saikesaisi Hydrogen have specialized in R&D PEM hydrogen tech 24 years and have been biggest PEM hydrogen equipment factory in China.
Welcome to visit our factory! We could supply customized product according to different technical demand.
