Stainless Steel Steam / Electric Heating / Gas Heating Jacketed Kettle

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

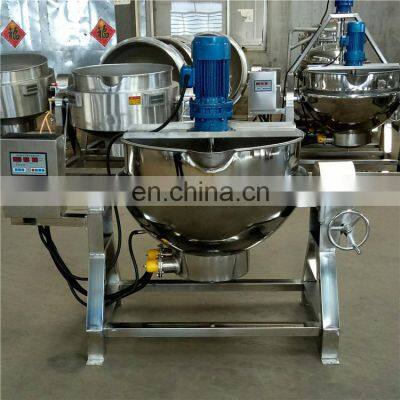

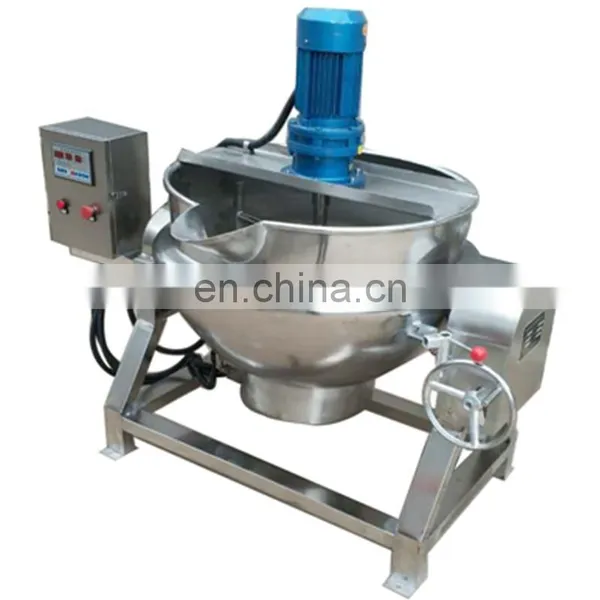

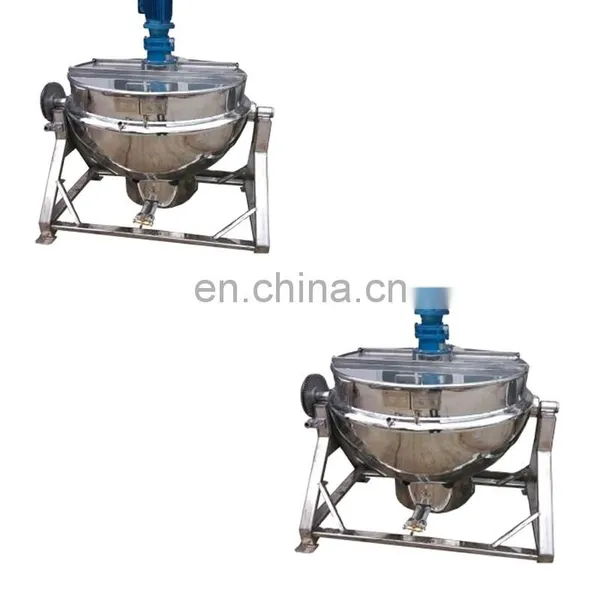

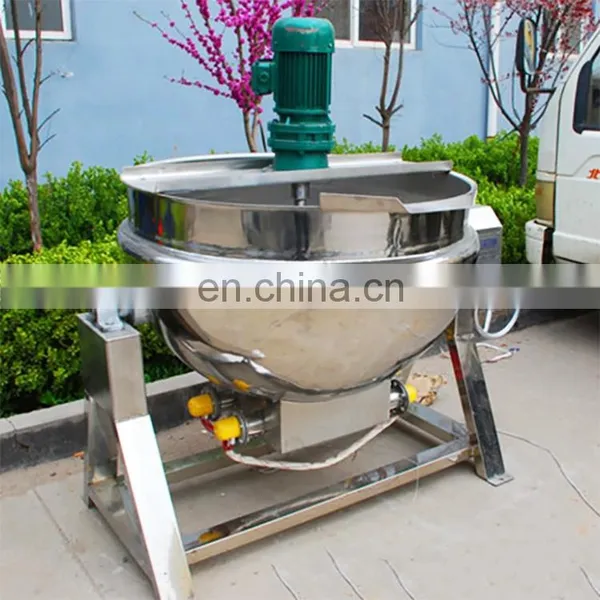

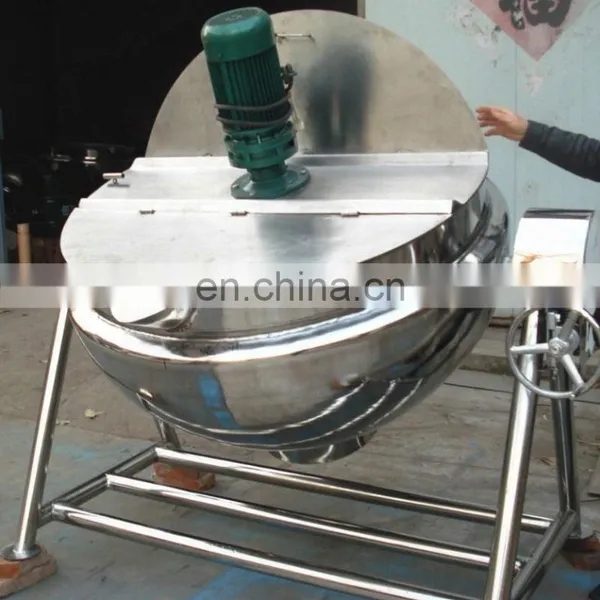

Stainless Steel Steam / Electric Heating / Gas Heating Jacketed Kettle

Product Overviews

Model	Ucan 50	Ucan 100	Ucan 200	Ucan 300	Ucan 400	Ucan 500	Ucan 600	Ucan 1000
Volume Capacity (liters/kgs)	50	100	200	300	400	500	600	1000
Heating Area (m²)	0.4	0.6	1	1.44	1.65	1.9	2.3	4.5
Electric Heating Power (Kw)^*	9	9	18	18	27	45	45	45
Motor (Kw)	0.37	0.37	0.55	0.75	0.75	1.1	1.1	1.5
ID x Depth (mm)	60*45	70*52	80*55	90*63	100*68	110*75	120*78	140*100
Tilted Degree	0~180 degree
Stirring Speed (rpm)	36, 48, 62, 200 and other customized speed.
Mixer	Scrapper mixer or agitator without wall scrapper
Structure	Fixed/Stationary, tilt-able
Main Advantage	1. Multifunctional such as cooling, heating, pasteurizing, mixing, dispersing, emulsifying, homogenizing in short time and easy to operate; 2. Simple structure, small size, light weight, low noise and stable operation; 3. High standard of sanitary standards. All parts in direct contact with products are supplied with food grade stainless steel.
Heating Source	Steam heating, Electric heating, natural gas heating
Scope of Application	1. Food industry: (rice, soup, meat, sugar, sauce, chili sauce, tomato, paste, beverage) cooking, pasteurizing and mixing. 2. Cosmetics industry: lotion, bath liquid, cream paste, toothpaste, face cream, oil mixtures 3. Pharmaceutical products: Herbal liquid cooking. 4. Other fields: any liquid need to be heated and mixing or no mixing.

Note:

* Heating powers mentioned in above table are only for kettles heated by electricity.

** For detailed tech data and customized kettles, please contact us at WhatsApp/Cell: +86 138 1711 5848.

Company Information

Our Company Name	Shanghai Youcan Beverage Machinery Co., Ltd
Our Industrial Experience	More than twenty years.
Machines We Manufacture & Export	Sanitary stainless-steel made tanks, homogenizers, jacketed kettles, pasteurizers, tubular UHT sterilizers, CIP systems, bottle blowing machines, etc.
Production Lines We Supply	Mineral water, pure water, carbonated drink, fruit juice, milk, yogurt, cheese and ice cream, etc.
Our Clients	Beverage, Brewing, Dairy Farm, Dairy Processing, Food, Personal Care, Pharmaceutical industries, etc.
Our Expertise	1. With our fully-experienced research and development team, we are capable of solving any technique problems concerning your production and meet all your whole-line and machinery demands. 2. With two-decade experience in beverage machinery, we are confident to supply all machines meeting your unique requirements.
Ports Our Machines Delivered	Shanghai, Ningbo, Guangzhou, and other China main ports, and all other international destinations.
