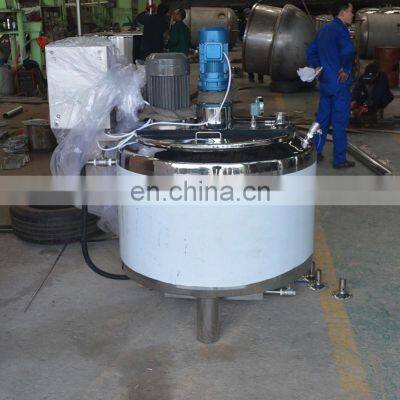

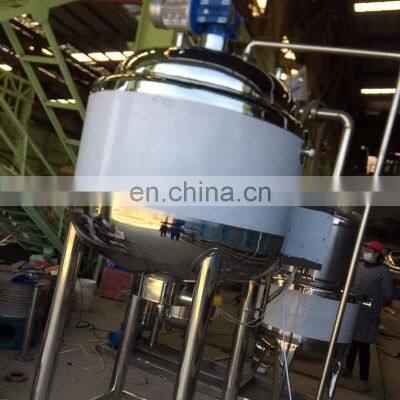

High Shear Emulsifier Machine chemical Industrial Mixing Tank

Product name

High shear mixer
In-line mixer, in-line high shear emulsifier, in-line homogenizer

liquid  high shear milk shake mixer homogenizer

 liquid  high shear food mixer homogenizer

liquid  high shear mixer blender homogenizer

 inline high shear mixer homogenizer

 liquid  high shear tank agitator mixer homogenizer

 liquid  high shear milk mixer homogenizer

industrial emulsifying machine  high shear  mixer,  high speed mixer 2900 rpm

Type

Batch high shear mixer, emulsifier, disperser, normal pressure high shear homogenizing mixer,

Function of

Continuously shear, homogenize, disperse ,emulsify  and transfer liquid productsby high speed and strong liquidized turbulence power, which generate by its stator and rotor.

The stator and rotor are high tech designed.

Scope of application:

Dairy product: milk ,icecream, yogurt

food industrial :sauces, beverage emulsion, liquid spices, oil mixtures,

pharmaceutical products, ointment, paint, adhesives and other fields.

Cosmetics : lotion, bath liquid, cream paste, toothpaste,

Processing capacity

Depending on liquid thickness , normally like milk liquid, processing capacity from 0.5M3/h to 130M3/H

Material

Sanitary stainless steel, ss304, ss316l,

All parts, which contact products, are applied with stainless steel, and the main shaft is made of special stainless steel.

Main Advantage

High shear homogenizer emulsifier  integrates multi-functions: such as blend/separate/emulsification/homogenizafion/shearing, dispersing, emulsifying, homogenizing , without any milling medium.

Generally, the machine is in simple structure, small size, light weight, low noise and running reliable.

HS code

8479820090

Type

Power

(Kw)

Voltage

Revolution

(RPM)

Length

(Mm)

Processing capacity (L/H)

Material

WRL-90

1.5

380V/50Hz

2900

430

5-50

SS304

WRL-100

2.2

380V/50Hz

2900

650

50-100

SS304

WRL-120A

3

380V/50Hz

2900

750

100-200

SS304

WRL-120

4

380V/50Hz

2900

750

100-300

SS304

WRL-140A

5.5

380V/50Hz

2900

850

200-600

SS304

WRL-140

7.5

380V/50Hz

2900

900

200-800

SS304

WRL-160

11

380V/50Hz

2900

1000

300-1000

SS304

WRL-170

15

380V/50Hz

2900

1100

400-1200

SS304

WRL-180

18.5

380V/50Hz

2900

1150

500-1500

SS304

WRL-200

22

380V/50Hz

1170

1200

800-2000

SS304

WRL-220

30

380V/50Hz

1170

1350

1000-3000

SS304

WRL-240

37

380V/50Hz

1470

1400

1500-5000

SS304

WRL-270

55

380V/50Hz

1470

1650

2000-8000

SS304

Package

Plywood box, standard for exporting and protect goods safely deliverying

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, artwork, payment term etc.

3.our  sales send the Proforma Invoice with our seal.

4. Customer make the payment for deposit and send us Bank receipt.

5. Initial Production Stage-Inform the clients that we have got the payment,

And will confirm with you again for the electricity, the pump inlet/outlet connection. After your approval, we inform that we will arrange the production & inform the estimated time.

6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

7. End Production-Mass production products photos  will send to you for approval. You can also arrange the third party Inspection .

8. Clients make payment for balance and Ship the goods , Inform the tracking number and check the status for clients.

9. Order can be say “complete” when you receive the goods and satisfy with them .

10. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better .
