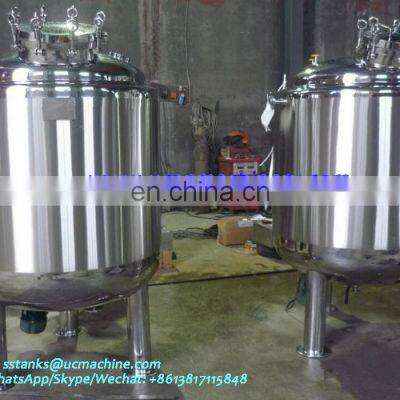

Stainless Steel Buffer Tank Storage Tank Media Preparation Vessels
Tank Specification:
- steam heating type / how water heating type / can be cooled by tap water.
- stainless steel jacket.
- made of three layer with temperature insulation.
- agitation scrapers sweeping the inner surface of the mixing tank.
- mixing capacity from 500Liter to 30,000Liter.
- or mixing capacity from 100Gallon to 5000Gallon.
- mixing speed can be 36rpm, 750rpm, or adjustable speed, the speed can be variable.
Product Advantage:
- Made of stainless steel, suitable for food and beverage production.
- Designed with jacket, allowed for hot water or steam heating, as well as tap water cooling.
- With temperature gauge <range 0~150 centigrade>.
- With glass level meter.
- CIP friendly.
Field of Application:
- Can be used as liquid storage tank, blending vessel, temporary storage tank, buffer tank and water storage tank etc.
- Ideal for food, dairy processing, fruit juice beverages, pharmaceutical, beer and wine brewing, chemical and biological engineering industries.
Construction & Configuration:
- Double wall contstruction
- The two walls make up the jacket which allowed hot water and cooling water pass through.
- Conical bottom, easy to discharge
- Sealed top, sanitary and prevent dirt in air fly in the tank effectively
- Interior welds are ground smooth, passivated and polished. Transitional areas are made into arc shaped blends to ensure no dead zones of sanitation.
- Various types of CIP cleaners.
- Vortex breaker / baffles.
- Liquid level probe and level controller (as per customer requirements.)
- Temperature probe (as per customer requirements.)
- Quick opening manway.
- Sanitary breathing cover to keep out flies and insects.
- Agitator (as per customer requirements.)
- Dismountable inlet pipe assembly.
Technical Parameters:
| Working Volume (L) |
Tank Dimension (D x H) (m*m) |
Total Height (mm) |
Diameter of Inlet & Outlet (mm) |
Insulation (mm) |
Motor Power (kw) |
Blending Speed (r/min) |
| 1,000 | Φ1,060×1,220 | 2,220 | 51 | 60 | 0.75 | 960 |
| 1,500 | Φ1,160×1,500 | 2,550 | 51 | 60 | 1.1 | 960 |
| 2,000 | Φ1,340×1,500 | 2,600 | 51 | 60 | 1.1 | 960 |
| 3,000 | Φ1,410×2,000 | 3,100 | 51 | 60 | 1.5 | 960 |
| 4,000 | Φ1,620×2,000 | 3,150 | 51 | 60 | 1.5 | 960 |
| 5,000 | Φ1,810×2,000 | 3,200 | 51 | 60 | 2.2 | 960 |
| 6,000 | Φ1,980×2,000 | 3,250 | 51 | 60 | 2.2 | 960 |
| 7,000 | Φ1,930×2,440 | 3,700 | 51 | 60 | 3 | 960 |
| 8,000 | Φ2,060×2,440 | 3,700 | 51 | 60 | 3 | 960 |
| 9,000 | Φ2,180×2,440 | 3,700 | 51 | 60 | 3 | 960 |
| 10,000 | Φ2,300×2,440 | 3,750 | 51 | 60 | 3 | 960 |
| 12,000 | Φ2,270×3,000 | 4,300 | 51 | 60 | 4 | 960 |
| 15,000 | Φ2,530×3,000 | 4,400 | 63 | 60 | 4 | 960 |
| 20,000 | Φ2,640×3,660 | 4,700 | 63 | 60 | 5.5 | 960 |
| 30,000 | Φ2,740×4,880 | 4,700 | 63 | 60 | 5.5 | 960 |
* Note: Other customized tanks are available upon request, please feel free to contact WhatsApp/Cell: +86 138 1711 5848.
Our Company Name |
Shanghai Youcan Beverage Machinery Co., Ltd |
Our Industrial Experience |
More than twenty years. |
Machines We Manufacture & Export |
Sanitary stainless-steel made tanks, homogenizers, jacketed kettles, pasteurizers, tubular UHT sterilizers, CIP systems, bottle blowing machines, etc. |
Production Lines We Supply |
Mineral water, pure water, carbonated drink, fruit juice, milk, yogurt, cheese and ice cream, etc. |
Our Clients |
Beverage, Brewing, Dairy Farm, Dairy Processing, Food, Personal Care, Pharmaceutical industries, etc. |
Our Expertise |
1. With our fully-experienced research and development team, we are capable of solving any technique problems concerning your production and meet all your whole-line and machinery demands.
2. With two-decade experience in beverage machinery, we are confident to supply all machines meeting your unique requirements. |
Ports Our Machines Delivered |
Shanghai, Ningbo, Guangzhou, and other China main ports, and all other international destinations. |
