Home > Products > Homogenizer machine > 3 stage Inline high shear emulsifier/mixer/homogenizer/pump for food
3 stage Inline high shear emulsifier/mixer/homogenizer/pump for food
- 1000 per Month
- T/T Credit Card
Product Description
movable industrial homogenizer pump
liquid high shear dispersing emulsifier homogenizer pump
We manufacture all kinds of high shear homogenizer pump, inline homogenizer , high shear emulsifying pump, emulsifier, high shear mixer
Product name |
Homogenizer pump,
|
Type |
Single stage homogenizer pump, three stage homogenizer pump |
Homogenizer pump function |

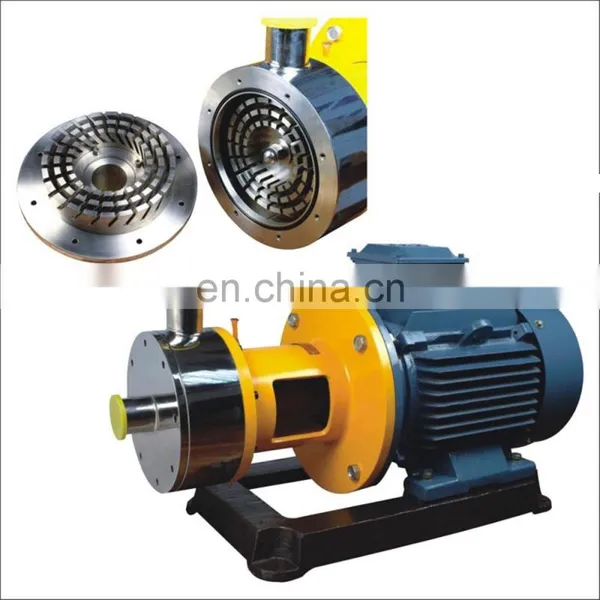

Continuously shear, homogenize, disperse ,emulsify and transfer liquid productsby high speed and strong liquidized turbulence power, which generate by its stator and rotor. The stator and rotor are high tech designed. |
Scope of application: |
Dairy product: milk ,icecream, yogurt
sauces, beverage emulsion, liquid spices, oil mixtures,
pharmaceutical products, ointment, paint, adhesives and other fields.
Cosmetics, lotion, bath liquid, cream paste, toothpaste, |
Processing capacity |
Depending on liquid thickness , normally like milk liquid, processing capacity from 0.5M3/h to 150M3/H |
Material |
Sanitary stainless steel, ss304, ss316l, All parts, which contact products, are applied with stainless steel, and the main shaft is made of special stainless steel.
|
Main Advantage |
Homogenizer pump integrates multi-functions: such as shearing, dispersing, emulsifying, homogenizing and transferring, without any milling medium. Generally, the machine is in simple structure, small size, light weight, low noise and running reliable. |
Working principle |
Spindle drive motor running at full speed on the cutting wheel (rotor) to enable the material produces extremely high centrifugal speed, materials, |
HS code |
8479820090 |
Package |
Plywood box, standard for exporting and protect goods safely deliverying |
Marks |
The processing capacity is depending on different liquid, please feel free to contact our engineer by Ph: +86 138 183 63408 |
About US/Supplier Types |
1 .Trade Assurance,With Trade Assurance, you'll enjoy: •100% product quality protection •100% on-time shipment protection •100% payment protection for your covered amount 2. Gold Supplier 3. Assessed Supplier 4 . Onsite Checked 5 . A&VChecked 6. we accept Transactions via 7. Payment protection 8 . On-time shipment 9. Wholesale Low MOQS 9. Popular Buying Requests for "Homogenizer pump" and "high shear emulsifier" |
Our Service |
Technical service , quick production, Ph/whatsapp: +86 138 183 63408 Convenient and fast delivery, good forward with best price and goods custom clearance service , Whole life technical service, warranty for homogenizer pump one year
|
- 1. Machine Structure Layout (Drawing 1)2. 2.Homogenizer pump Inlet and Outlet Connections All sanitary screw or flange fittings available on request (e.g. ISS, D/N, RJT, SMS, Tri-clamp, etc.).
-
3. Sealing
Single mechanical shaft seals available as standard.
4. Cleaning
All In-Line mixers are designed for cleaning in place (CIP and SIP).5.Cooling
Cooling jacket structure as standard, use tapping water could cool the pump
-
