Fully Automatic Milk Sterilizer High Technology New Design UHT Sterilizer Pasteurizer

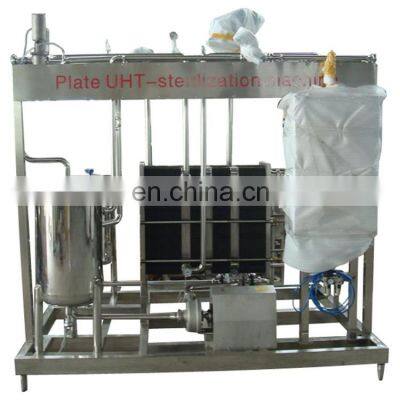

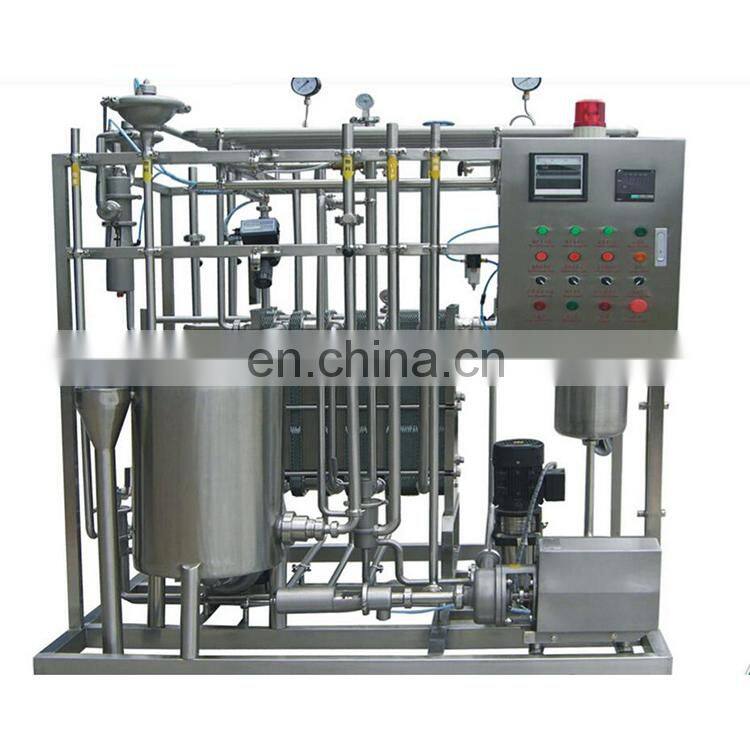

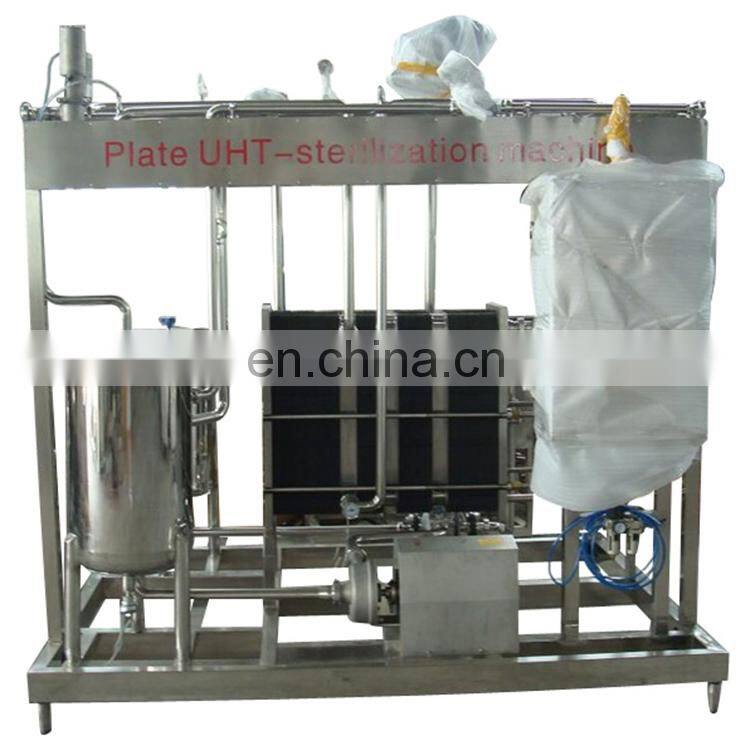

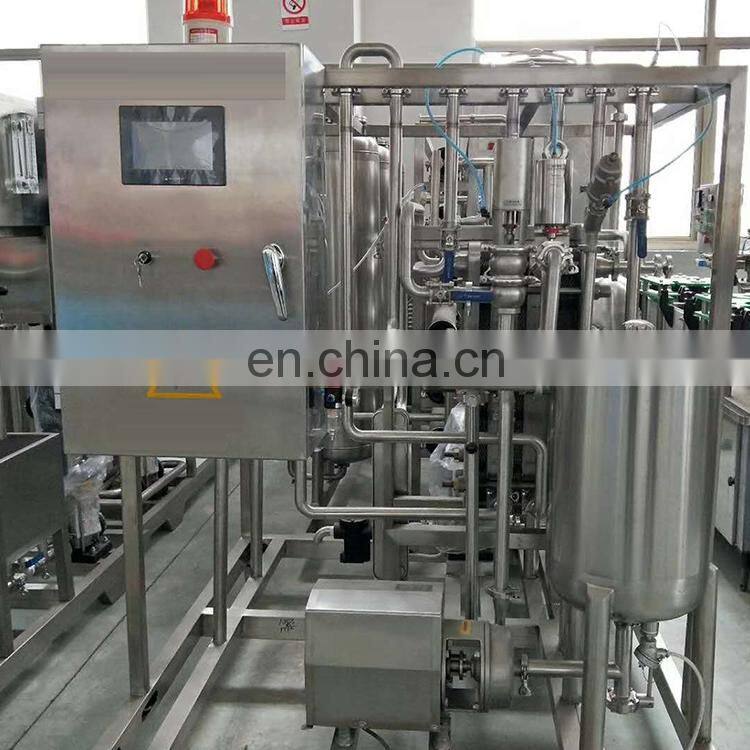

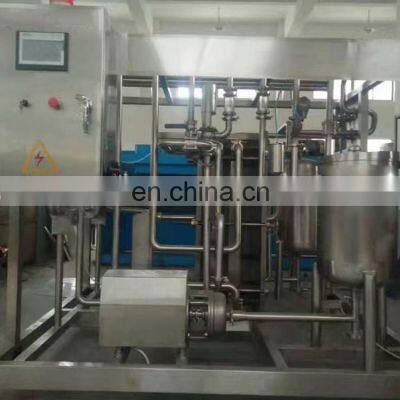

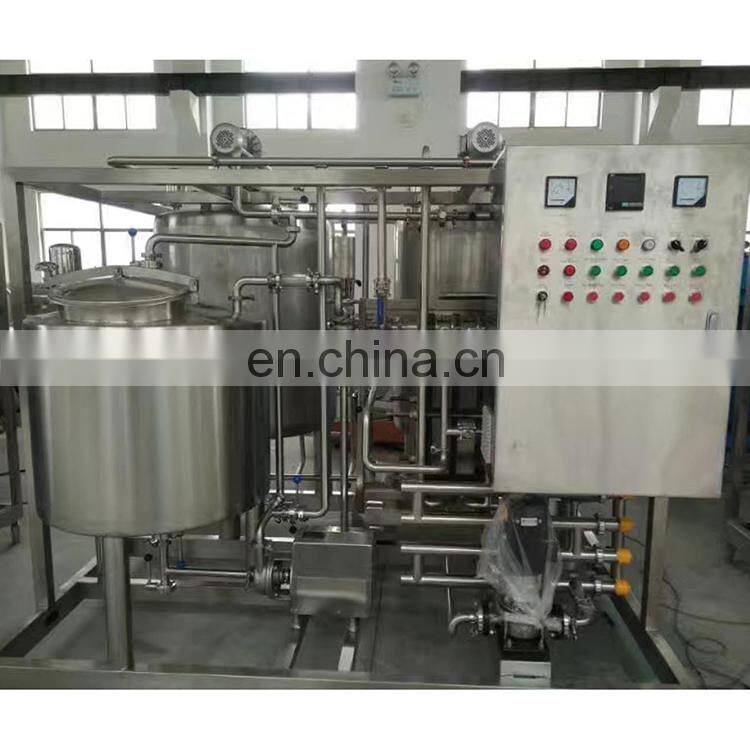

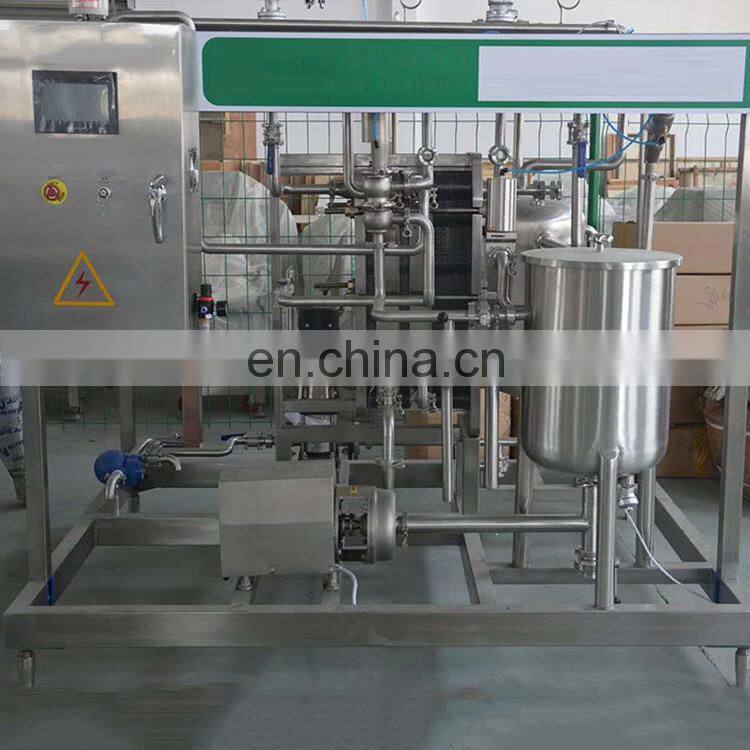

Fully Automatic Milk Sterilizer High Technology New Design UHT Sterilizer Pasteurizer photo-1
Fully Automatic Milk Sterilizer High Technology New Design UHT Sterilizer Pasteurizer photo-2
Fully Automatic Milk Sterilizer High Technology New Design UHT Sterilizer Pasteurizer photo-3
Fully Automatic Milk Sterilizer High Technology New Design UHT Sterilizer Pasteurizer photo-4
Fully Automatic Milk Sterilizer High Technology New Design UHT Sterilizer Pasteurizer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1993
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Fully automatic milk sterilizer high technology new design UHT sterilizer pasteurizer

The uht sterilizer is widely used in the processing of milk, juice, tea drink, dairy drink, tomato paste, flavoring, beer, ice cream, egg products, solid powder product etc.



Pasteurization Machine for milk, yogurt, ice cream, juice, tomato sauce, chili sauce,



Introduction of Pasteurization Machine:

The working procedure of Pasteurization machine: from 5 to 65 (homogenizing), 85-65  (15 s) - 5 .

The machine can be connected with separator, homogenizer, flash degassing equipment, etc.

Fully automatic milk sterilizer high technology new design UHT sterilizer pasteurizer

Pasteurization machine is suitable for fresh milk, fruit juice beverage, wine and other heat-sensitive liquid heating, sterilization, heat preservation and cooling process.



The machine is usually used to pasteurize materials (including raw milk, milk beverage, fruit juice, tea, juice and other kinds of drinks, all kinds of wine and ice cream, etc.), can also be used as pre-sterilization for raw material when producing pasteurized milk.



This equipment owns high heat recovery, energy saving, compact structure, simple operation, easy maintenance and some other advantages.



Milk Pasteurizer (plate/board type pasteurizer)

Main Technical Parameter for  pasteurization machine( plate type):

Model

Capacity

(T/H)

Heat

Exchange Area (M2)

Gross

Power(KW)

Steam Consumption

(Kgs/hour)

Overall

Dimension(mm)

Total

Weight

Ucan-PHE-0.5

0.5

5

5.2

52

1200×1200×1500

790kg

Ucan-PHE -1

1

8

5.2

60

1500×1500×1800

880kg

Ucan-PHE -2

2t/h

13

6

104

1800×2000×1800

980kg

Ucan-PHE -3

3t/h

20

6

156

2000×2000×2200

1080kg

Ucan-PHE -5

4-5t/h

30-45

8

260

2250×2000×2200

1250kg

Ucan-PHE -8

6-8t/h

35-50

8

400

2250×2000×2200

1250kg

Ucan-PHE-9

10t/h

60-

11

520

2800×2000×2200

1650kg

Ucan-PHE-15

15t/h

75

15

780

3000×2200×2200

2150kg

Ucan-PHE-20

20t/h

80

18

945

3300×2200×2200

2350kg

Fully automatic milk sterilizer high technology new design UHT sterilizer pasteurizer

Fully automatic milk sterilizer high technology new design UHT sterilizer pasteurizer

Fully automatic milk sterilizer high technology new design UHT sterilizer pasteurizer

Fully automatic milk sterilizer high technology new design UHT sterilizer pasteurizer

Fully automatic milk sterilizer high technology new design UHT sterilizer pasteurizer

Fully automatic milk sterilizer high technology new design UHT sterilizer pasteurizerFully automatic milk sterilizer high technology new design UHT sterilizer pasteurizerFully automatic milk sterilizer high technology new design UHT sterilizer pasteurizer

1. Q: How do I pay for my purchase order?

      A:   T/T, L/C at sight, Escrow, Paypal.



2. Q:  What's the MOQ?

    A:  Our MOQ is 1 set.



3. Q:What's the delivery time?

    A: It will take about 30-45days to finish an order, but the exact time is according to actual situation.



4. Q: Can I have my own customized product?

    A: Yes, your customized requirements for logo, design, mark, etc.  are very welcome.

Fully automatic milk sterilizer high technology new design UHT sterilizer pasteurizer
