Three Roll Mill for Chocolate

Three Roll Mill for Chocolate thumbnail-1
Three Roll Mill for Chocolate thumbnail-2
Three Roll Mill for Chocolate thumbnail-3
Three Roll Mill for Chocolate thumbnail-4
Three Roll Mill for Chocolate thumbnail-5
Three Roll Mill for Chocolate photo-1

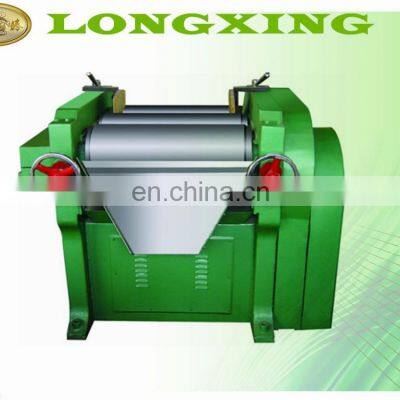

Three Roll Mill for Chocolate photo-2

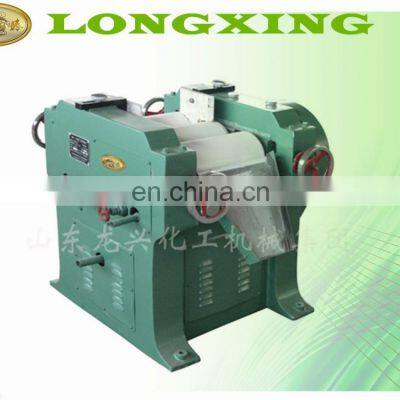

Three Roll Mill for Chocolate photo-3

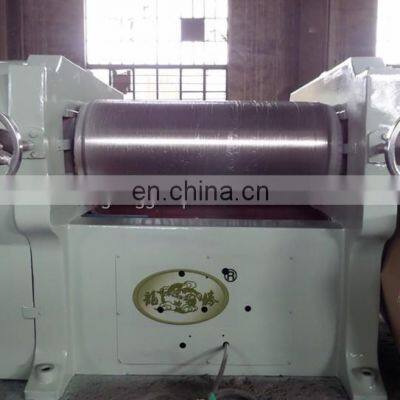

Three Roll Mill for Chocolate photo-4

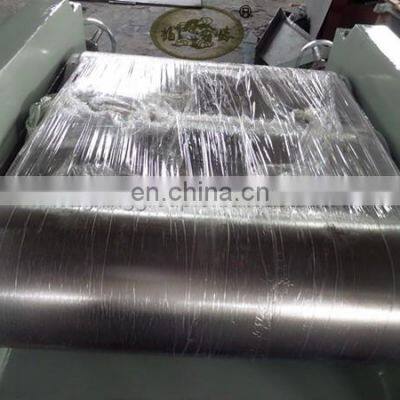

Three Roll Mill for Chocolate photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2015
Annual Export Value:
US$10 Million - US$50 Million
Contact Supplier Request Quote Chat Now
Shandong Longxing Chemical Machinery Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us



Product Description

 Three roll mill for chocolate

1. Working Principles:

The three rollers,with parallel arrangement,rotate at different speeds to mutually rub,squeeze,shear to grind the materials.

2.Uses:
The three roller mill is mainly used to grind all kinds of paints, printing ink, ink, paint pigments, paints, food, chocolate, cosmetics, medicine, and other paste materials (not including those mighe cause the corrosion of the rollers). In recent years, with the development of the cable materials, human leather plastics, soaps, and lead-producing areas ,therefore the device has become the major equipment for grinding these materials.

3. Features:
The three rollers of the machine are made of the cold hard alloy material and are grinded on the special convex abrasive machine, so that the effective working surface of the rollers are slightly convex. Because the rollers expand with heat and contract with cold, in the process of grinding the machine has automatic compensation to extend the service life, as well as increases the grinding efficiency and fineness.
In accordance with the original fineness, hardness,and toughness,materials can be grinded once, twice or more times ,and ultimately to achieve the required fineness (generally about 3-18 microns , determined by the fineness board).

4. Technical parameters:


Type

65

120

160

260

315

405

Roller Diameter(mm)

65

120

160

260

315

405

Roller Working Surface Length (mm)

140

280

320

620

760

810

Roller Speed Ratio(slow to fast)

1:2.63:7.1

1:3.13:9.77

1:206:5

1:2.5:6.25

1:2.87:8.1

1:3.14:9.77

Slow Roller Speed(r/min)

30

23

35

25

17.5

14.39

Medium Roller Speed(r/min)

79

72

72

63

50

44.39

Fast Roller Speed(r/min)

210

225

175

157

142

136

Motor Type

single-phase

Y90L-6

Y132S-8

Y160L-8

Y180L-8

Y200L-8

Motor Power(Kw)

0.55

1.1

2.2

7.5

11

15

Motor Rotation Speed(r/min)

1400

910

710

720

730

730

Overall Dimensions(mm)

L

400

800

780

1330

1560

1700

W

450

700

840

1300

550

1860

H

430

700

820

1120

1200

1400

Weight (Kg)

80

320

500

1800

2580

4200





Packaging & Shipping
  • we could package the goods according to the clients requests
  • packaging detail: wooden carton(can be customized according to user's request and specifications)
  • delivery detail:  within 60 days on receiving deposite payment

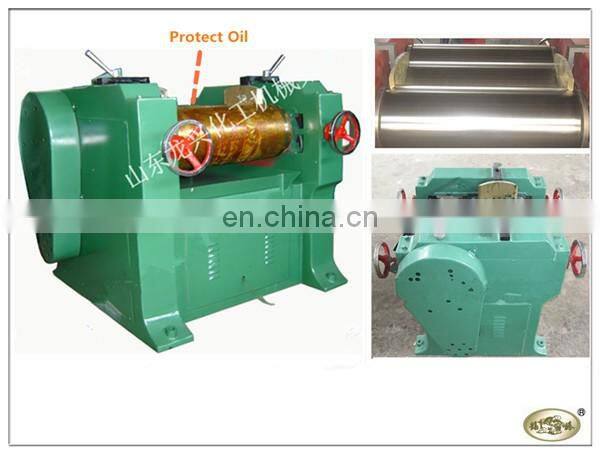

Three roll mill for chocolate
Related Products



Company Information
  • shandong Longxing Chemical Machinery Group Co., Ltd
  • not only the professioal production base for the chemical machinery,but also one of the fixed companies for China National Chemical Equipment Corporation.
  • Design License of Special Equipment in Grade D1&D2, the Manufacture License of Special Equipment in Grade A1&A2, the Manufacturer License of Special Equipment in Heat Transfer Oil Furnace, and the ISO Quality System Certification.
  • 36 years professional in pharmaceutical &food &Chemical machinery
  • A full range of technical support ,not only for our machines ,but also for your production process
  • Competitive price&good quality





Our Services

(1). Our company can design the equipment according to user's specific requirements.

(2). For the fast update of the technology, we will change the technical data without notice, and the right parameters are subject to the real product.

 (3).If you are not certain of which type to choose, please call us and our profession sales engineers will recommend for you.

 (4).We could give you the rapid response on your inquiry .

FAQ



Q: Do you have machines in stock?

A: Yes, but just the small-scale machines. Machines are different with other products, most of the large-scale machines are designed according to our customers' requirements, different customers have different production requirements, so the technical parameter is different for most machines. On the other hands, most of the our machines will cover a large area, so once the machines are finished, we will effect shipment after QC.

Q: Can you send the detailed drawings of the machine to us before we place order?

 A: We can send you a draft drawing of the machines, and after you place order and pay the deposit, our engineer will design the specific technical parameters for you and send you the detailed drawings. Once you confirm without questions, we will put it into production.





Q: Can we pay the balance after we receive the machines and test without problems?

A: It's unnessary to worry about the quality of our machines, we are confident in that. After the machine is finished, we can install and test the machine for you (if you can not come to our factory, we can record a vedio and send to you). Only after you check without problems, we will effect shipment.
