High Speed High Viscosity Pigment or Ink Three Roller Mill
- T/T Credit Card
You May Like
-
Manufacture Factory Price Stainless Steel Vertical Sand Mill(80L) Chemical Machinery Equipment
-
Basket Making Machine Soft Wicker Basket Plastic Basket Making Machine
-
Manufacture Factory Price Cheap Vertical Sand Mill for Water Paints Chemical Machinery Equipment
-
Manufacture Factory Price Grinding Machine, Bead Mill With Vertical Type Chemical Machinery Equipment
-
Manufacture Factory Price JM Series Stainless Steel Colloid Mill Chemical Machinery Equipment
-
Manufacture Factory Price Horizontal Colloid Mill for Peanut Butter Chemical Machinery Equipment
Product Description
1. Workingprinciples:

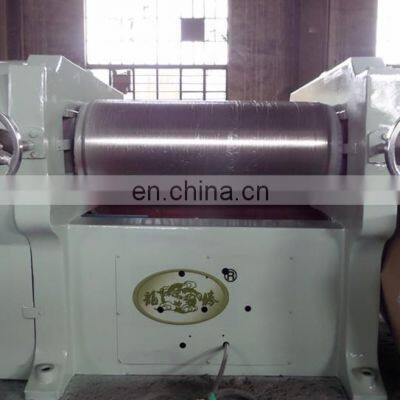

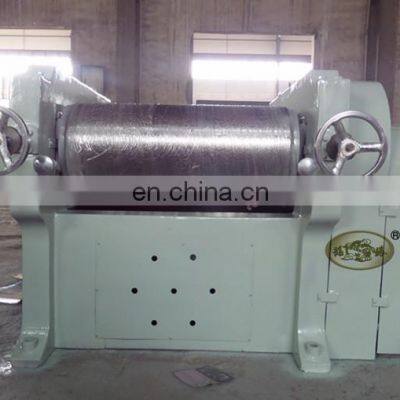

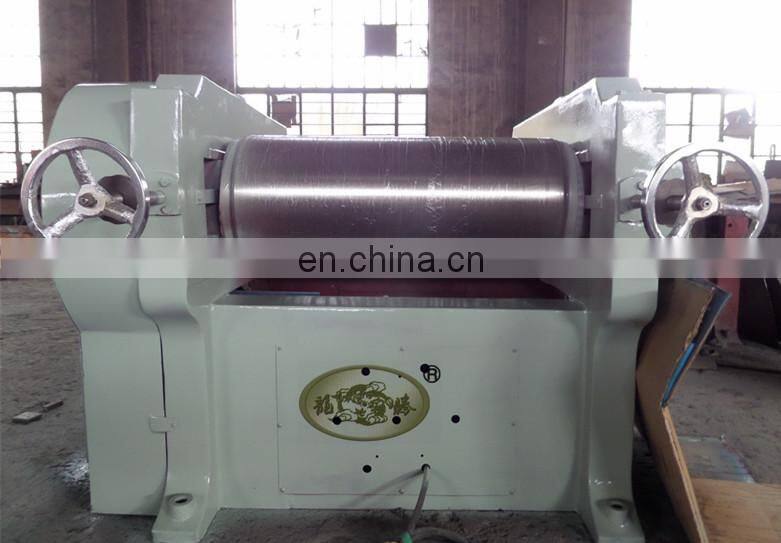

The equipment consists of three rollers fixed on the frame and driven directly by the motor. The rotation direction between rollers is generally different, the front roller rotates forward while the rear roller rotates backward. The speed of front roller is quicker while speed of rear roller is slower. The middle roller is fixed, and the front and rear rollers are mounted on the slide with spring device. Adjust the distance between three rollers by adjusting the hand wheel. The material discharged from space between rear roller and middle roller, are squeezed by the rollers to obtain smaller particle size. Then the material are rolled out by the fast roll(Roll rotates at high speed). The scrapper at the end of the fast roller separate material from the roller and fall into the collection barrels. Since it produces a lot of heat in the grinding process, the center of each roller is hollow. Input water for cooling to ensure finished products with good quality.
2. Applications:
Three roller mill is widely applied in institute experiment and trail production of paint, dye, printing ink, cosmetics, rubber, soap, high viscosity pulp, agriculture chemicals, ceramic, adhesion and grinding paste slurry etc. Laboratory three roller grinding mill is currently one of the most popular grinding mill for paint, UV ink production.
3.Features:
a. Final fineness can be around 2-10um (measured by the fineness gauge)
b. Manually adjust roller clearance, simple and reliable structure;
c. Can be heated or cool be cycle hot water/oil,cooling water
4. Technical parameters:
Type | SM65 | SM120 | SM160 | SM260 | SM315 | SM 405 |
Roller Diameter(mm) | 65 | 120 | 160 | 260 | 315 | 405 |
Roller Working Surface Length (mm) | 140 | 280 | 320 | 620 | 760 | 810 |
Roller Speed Ratio(slow to fast) | 1: 2.67: 7.1 | 1: 3: 9 | 1: 2.4: 4.98 | 1: 2.5: 6.25 | 1: 2.87: 8.1 | 1: 3: 9 |
Dimension(L*W*H) | 400 | 800 | 780 | 1330 | 1670 | 1900 |
Motor Type | An Ordinary Motor or Explosive-proof Motor | |||||
Power(kw) | 0.55 | 1.1 | 2.2 | 7.5 | 11 | 15 |
Weight(kg) | 80 | 320 | 500 | 1800 | 2580 | 4200 |
-

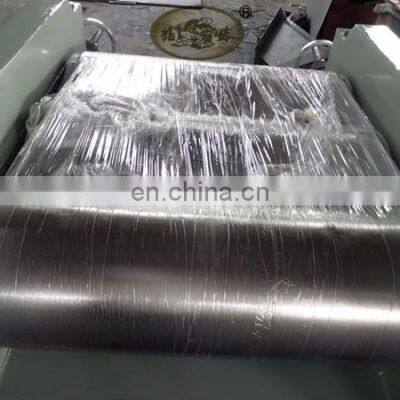

Packaging Detail: wooden carton(can be customized according to user's requests and specifications) Delivery Detail: With 30 days on receiving deposite payment
(1) Our company can design the equipment according to user's specific requirements.
(2) For the fast update of the technology, we will change the technical data without notice, and the right parameters are subject to the real product.
(3)If you are not certain of which type to choose, please call us and our profession sales engineers will recommend for you.
(4)We could give you the rapid response on your inquiry .

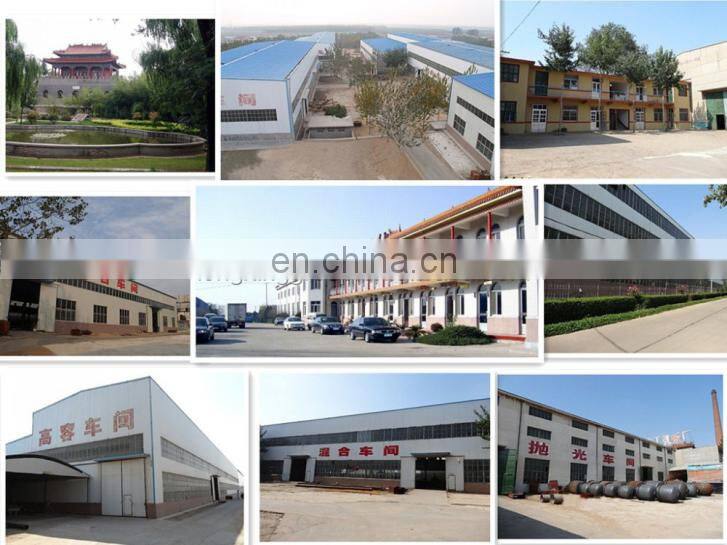

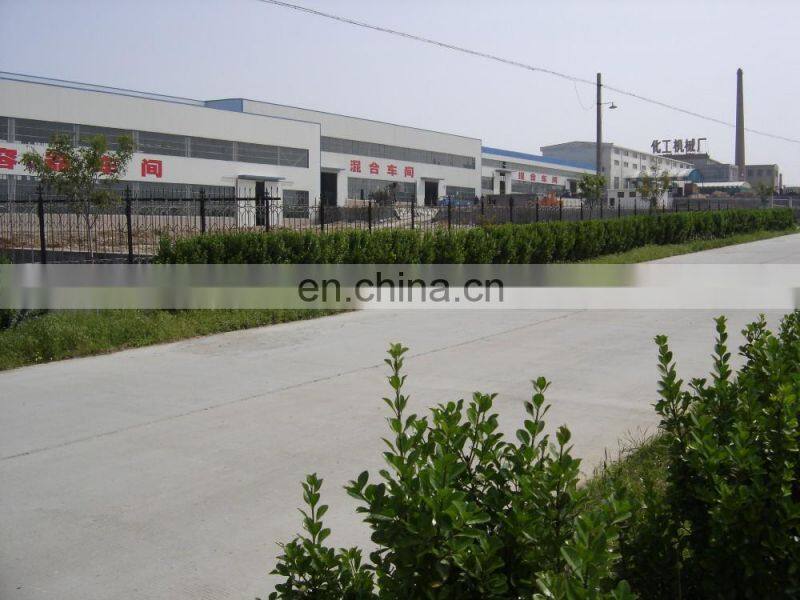

Shandong Longxing Chemical Machinery Group Co.,Ltd was established in 1975, combining production, foreign trade and professional service of chemical machinery as an original manufacturer.
Following sincerity, striving to be remarkable is our management concept.We have acquired great reputation in the machinery producing and marketing field, well favoured by customers. Our company has strong production capacity and sells durable and high-quality machine. Our products seriously comply with the international quality system, ISO and CE. Throughout year's development, we can assure 100% good quality .
Products include many series machine for chemical , foodstuff, and industrial fields, such as grinder, mixer, reactor,paint production line,vibrating screen etc.
Welcome friends from all over the world to consult, negotiate and order all series machinery, it's our pleasure to provide complete and considerate service for you.

Q: Do you have machines in stock?
A: Yes, but just the small-scale machines. Machines are different with other products, most of the large-scale machines are designed according to our customers' requirements, different customers have different production requirements, so the technical parameter is different for most machines. On the other hands, most of the our machines will cover a large area, so once the machines are finished, we will effect shipment after QC.
Q: Can you send the detailed drawings of the machine to us before we place order?
A: We can send you a draft drawing of the machines, and after you place order and pay the deposit, our engineer will design the specific technical parameters for you and send you the detailed drawings. Once you confirm without questions, we will put it into production.
Q: Can we pay the balance after we receive the machines and test without problems?
A: It's unnessary to worry about the quality of our machines, we are confident in that. After the machine is finished, we can install and test the machine for you (if you can not come to our factory, we can record a vedio and send to you). Only after you check without problems, we will effect shipment.
