Home > Products > High Speed Dissolver > Longxing Factory Price Dual Shaft Dispersing Mixer for Paints Chemical Machinery Equipment

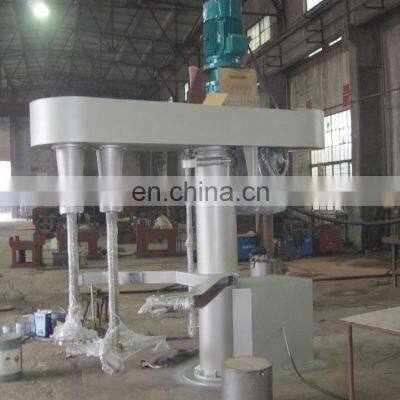

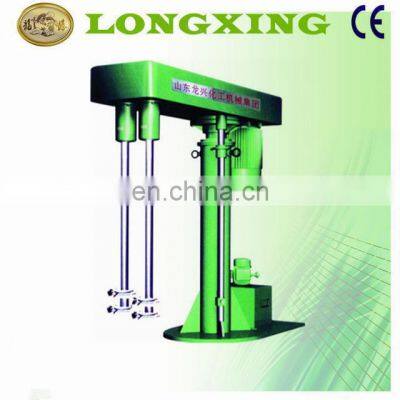

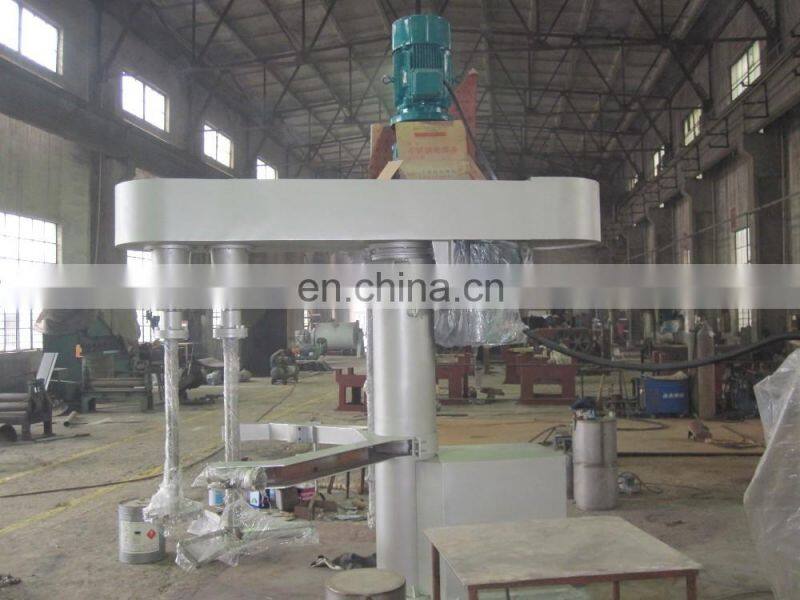

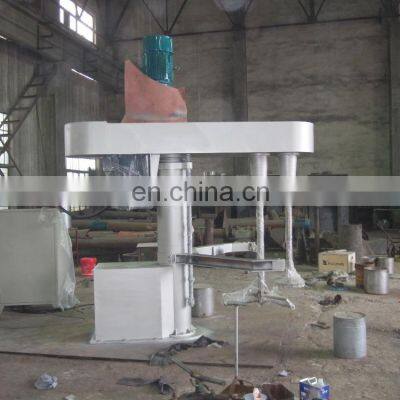

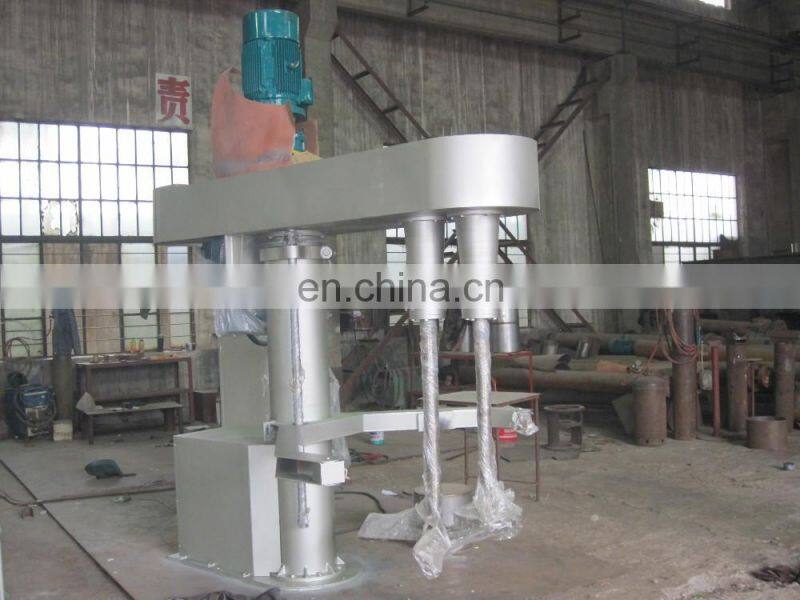

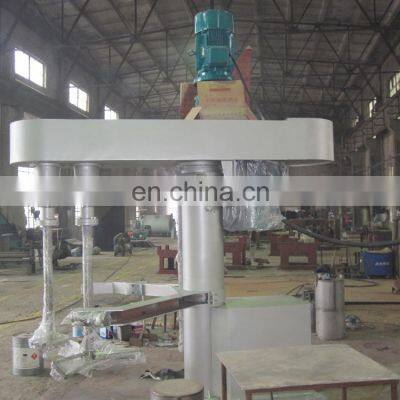

Longxing Factory Price Dual Shaft Dispersing Mixer for Paints Chemical Machinery Equipment

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

High-speed Dispersing Mixer, used for water-based paints, oil-based paints, white emulsion adhesives, acrylic acid paints, etc. Contacting parts SUS 304, Lifting height of 1000 mm or customized. Rotation speed about 1250rpm or customized.

1. Working principles:

The dispersion plate has many serrated blades. When the machine works at a high speed, the raw material flips up and down intensively in the container and is impacted and sheared by the blades. As a result, the aggregate is destroyed by rapid dispersion, homogeneous mixing, and fast dissolution. The user could control its working speed by adjusting the box or frequency converter. The latter is a little more expensive than the former.

2. Application:

Dispersing Mixer is widely used in many fields. such as coatings, dyes, ink, pigments, papermaking, cosmetics, food, resin, adhesive, lotion, medicine, oil, pesticides, daily chemical, and other fields.

3. Category:

Generally speaking, the high-speed dissolver has a mechanical lifting type and a hydraulic lifting type. The mechanical lifting type is a cheaper, and easier operation than the hydraulic type.

4. Notes:

Our company is able to undertake non-standard customization according to the customer’s specific requirements. (It needs the customers to provide the size of their drawings.)

5. Main technical parameters of the normal type:

Type		GFJ2.2	GFJ4	GFJ5.5	GFJ7.5	GFH11	GFJ15	GFJ18.5	GFJ22
Main Motor Power (kW)		2.2	4	5.5	7.5	11	15	18.5	22
Impeller Rotational Speed (rpm)		80~1250
Dispersion Plate Diameter(mm)		150~200	150~200	200~250	250~300	300	350	350	350~400
Stirring-axis Max Stroke (mm)		1000
Installation Height (mm)		3100	3100	3100	3100	3100	3200	3200	3200
Overall Dimensions (mm)	L	1500	1500	1500	1500	1500	2000	2000	2000
	W	550	550	550	550	550	700	700	700
	H	2100	2100	2100	2100	2100	2200	2200	2200
Weight (Kg)		600	640	710	730	830	930	1050	1070

Company Information

1. Shandong Longxing Chemical Machinery Group Co., Ltd is not only the professional base for the chemical machinery but also one of the fixed companies for China National Chemical Equipment Corporation.

2. Our group has the Design License of Special Equipment in Grade D1 &D2, and the Manufacture License of Special Equipment in Grade A1 &A2.

3. We also have the Manufacture License of Special Equipment in Heat Transfer Oil Furance, ISO Quality System Certification, and CE Certification.

Company View

Our Services

Q1. What are your terms of packing?

A: Generally, we pack our goods in plywood cases. If your goods have one container that the goods can without plywood case packing, just wrap the film to load.

Q2. What are your terms of payment?

A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages

before you pay the balance.

Q3. What are your terms of delivery?

A: FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take about 30 days after receiving your advance payment for a customized machine. The specific delivery time depends

on the items and the quantity of your order.

Q5. Can you produce it according to the drawing?

A: Yes, we can produce your technical drawings. If you haven't the drawing, just told me your need and our engineer will make the drawing for your reference.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q7: How do you make our business a long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,

no matter where they come from.

(1). Our company can design the equipment according to the user's specific requirements.

(2). For the last update of the technology, we will change the technical data without notice, and the right parameters are subject to the real product.

(3). If you are not certain of which type to choose, please call us and our professional sales engineers will recommend it for you.

(4). We could give you a rapid response to your inquiry.

Packaging & Shipping

Q1. What are your terms of packing?

A: Generally, we pack our goods in plywood cases. If your goods have one container that the goods can without plywood case packing, just wrap the film to load.

Q2. What are your terms of payment?

A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take about 30 days after receiving your advance payment for a customized machine. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce it according to the drawing?

A: Yes, we can produce your technical drawings. If you have no drawing, just tell me your need and our engineer will make the drawing for your reference.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q7: How do you make our business a long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
