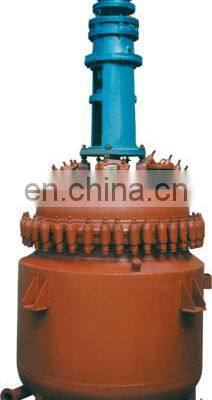

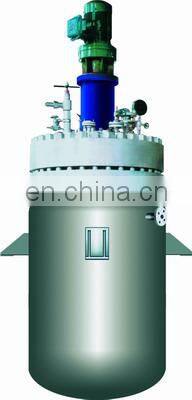

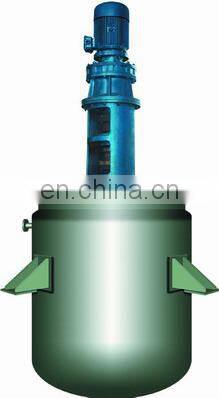

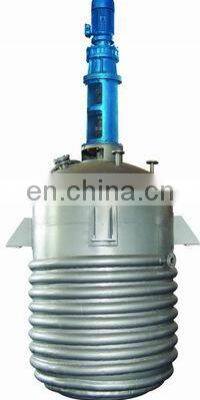

1000L reactor is a good corrosion-resistant chemical equipment.It is widely used in chemical, petrochemical, pesticide, pharmaceutical, food, dyes, etc.Glass enamel layer has smooth surface, heat-resistant, easy to wash, no contamination to raw materials inside the reactor, low price and so on.
1Capacity: 50L-3000L;
2Structure: Open Type;
3Accessories:
(1)Electricity Heating Reactor: Motor with Speed reducer, Agitator, Thermowell, stuffing seal or mechanical seal, Electricity Heating Rods, Discharging Valve, Ball Valve, Expansion Device (Optional), Control Cabinet(Optional).
(2)Steam Heating Reactor: Motor with Speed reducer, Agitator, Thermowell, stuffing seal or mechanical seal, Discharging Valve, Expansion Device (Optional), Control Cabinet(Optional).
| 1 | Type (L) | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | |||||||||||||||||||||||
| 2 | Full Capacity (L) | 71 | 128 | 247 | 369 | 588 | 1250 | 1720 | 2160 | 3715 | 5650 | |||||||||||||||||||||||
| 3 | Jacket Capacity(L) | |||||||||||||||||||||||||||||||||
| 4 | Heat Transfer Area (Cubic Meters) | 0.34 | 0.66 | 1.26 | 1.75 | 2.64 | 4.54 | 5.34 | 7.02 | 8.61 | 13.8 | |||||||||||||||||||||||
| 5 | Seal Type | Packing Seal or Mechanical Seal | ||||||||||||||||||||||||||||||||
| 6 | Stirrer Type | Anchor Type | Frame Type,Anchor Type and so on | |||||||||||||||||||||||||||||||
| 7 | Motor Type | 0.75 | 0.75 | 1.1 | 3 | 3 | 4 | 4 | 4 | 5.5 | 5.5 | |||||||||||||||||||||||
| Cycloidal Pin Wheel Speed Reducer or Explosive-proof Motor | ||||||||||||||||||||||||||||||||||
| 8 | Rotation Speed(rpm) | 63/85 | ||||||||||||||||||||||||||||||||
| The user could choose a frequency converter to adjust the rotation speed. | ||||||||||||||||||||||||||||||||||
| 9 | Design Temperature | 0~200 Degree Centrigrade | ||||||||||||||||||||||||||||||||
| 10 | Heating Methods | Steam Heating Reactor | Electricity Heating Reactor | |||||||||||||||||||||||||||||||
| 11 | Working Pressure (MPa) |
| ||||||||||||||||||||||||||||||||
| 12 | Heating Power(KW) (Electricity Heating Type) | 2*4 | 2*6 | 4*6 | 4*6 | 4*9 | 4*12 | 4*15 | 4*15 | 4*15 | 4*18 | |||||||||||||||||||||||
- we could package the goods according to the clients requests
- packaging detail: wooden carton(can be customized according to user's request and specifications)
- delivery detail: within 60 days on receiving deposite payment
Shandong Longxing Chemical Machinery Group Co., Ltd is not only the professional base for the chemical machinery, but also one of the fixed companies for China National Chemical Equipment Corporation.Our group has the Design License of Special Equipemnt in Grade D1 &D2, the Manufacture License of Special Equipment in Grade A1 &A2.We also have the Maufacturer License of Special Equipment in Heat Transfer Oil Furance, ISO Quality System Certification and the CE Certification.
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case . If your goods have one container that the goods can without plywood case packing ,just wrap the film to load .
Q2. What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take about 30 days after receiving your advance payment for customized machine. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the drawing ?
A: Yes, we can produced as your technical drawings. If you haven't the drawing , just told me your need and our engineer will make the drawing for your reference .
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
