High Power Pinhole or Slit| Round Aperture for Laser Application

FOB Price

US$ 10 - 30 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T PayPal
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

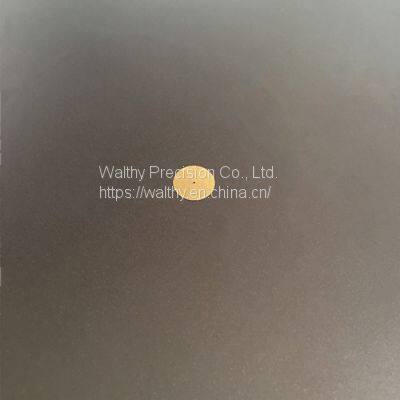

High Power Pinhole Aperture or Slits

Slits width ranging from 5-1000um

High Power Precision Pinhole Apertures are used in high energy and power applications. The pinhole apertures are intended to be used in the optical transfer assembly of a system using a powerful laser as a source.A typical example is the aperture within a spatial filter assembly.

Material: Copper

Diameter: 9.5mm or customized

Thickness: 0.01, 0.02, 0.03, 0.05, 0.1mm or customized

Pinhole size: 5-1000um, high power slits are also available.

Centering: +/-0.01mm

Pinhole/Aperture Tolerance: 5% or 10%, depends on the specific dimension

If not listed, please contact us.

We can aso customized slits according to your requirements.

We can fabricate from different substrate materials,diameter,different slit width and length, and different slits configuration.Shape of the substrates can be customized too.
