LTS208H-II 8000kg Single Drum Roller (Single Drive)

LTS208H-II 8000kg Single Drum Roller (Single Drive) photo-1

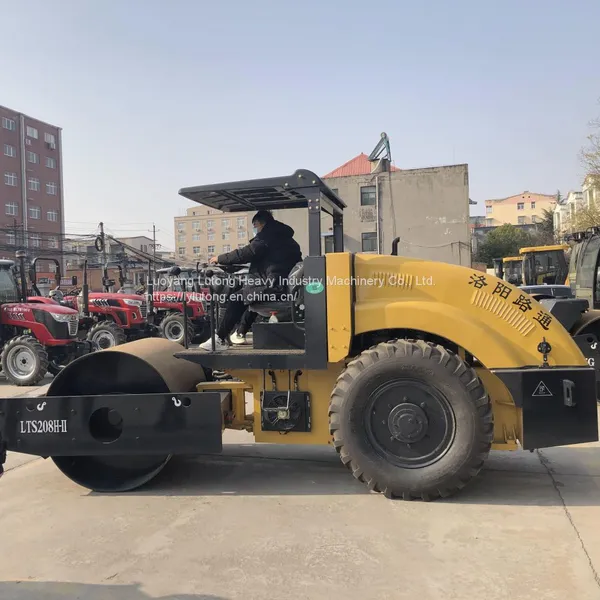

LTS208H-II 8000kg Single Drum Roller (Single Drive) photo-2

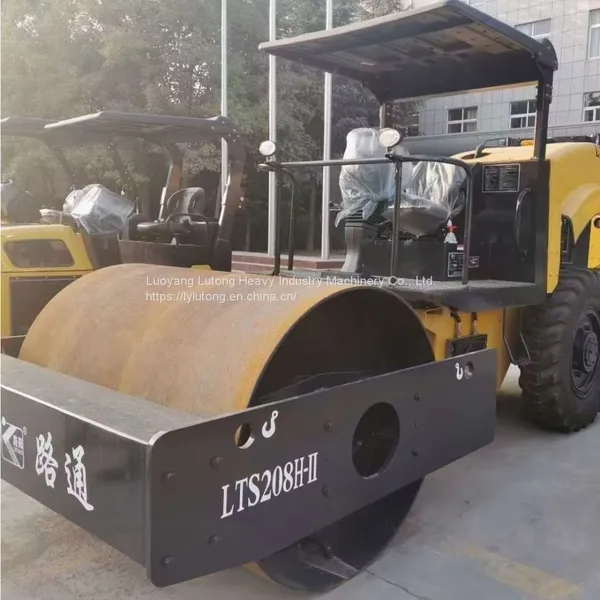

LTS208H-II 8000kg Single Drum Roller (Single Drive) photo-3
US$ 1000 - 2000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Luoyang Lutong
Place of Origin:
China
Model Number:
LTS208H-II
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
7 days
Brand Name Luoyang Lutong
Place of Origin China
Model Number LTS208H-II
Type Single Drum Roller
Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
After-sales Service Provided Overseas third-party support available
Weight 8000kg
Dimension(L*W*H) 4970*1880*2690
Condition New
Power(W) 36.8Kw
Grade Ability 40%
Travel Speed 20
Static Linear Pressure 428
PRODUCT FEATURE
LTS208-II are suitable for compaction of various nonadhesive materials such as soil, gravel, gravel, gravel mixture, rock fill and various subgrade and pavement works such as stabilized soil. it can be widely used in compaction of engineering foundation of high-grade highway, railway, municipal engineering airport, port, wharf, dyke and various industrial construction sites.
PARAMETERS
Item
Unit
Parameter
Operating mass
kg
7500
Vibration round width
mm
1220
Vibration round width (Compaction width)
mm
1660
Static line load
N/cm
215
Ground clearance
mm
320
Wheelbase
mm
2750
Turning radius
mm
6000
Theoretical gradeability
%
35
Vibration amplitude (Nominal amplitude)
mm
0.4
Vibration frequency
Hz
45
Centrifugal force
kN
82
Travel speed
Km/h
0-7.2
Diesel model

4D32G31
Rated power
kw
36.8
Rated speed
r/min
2200
Overall dimension
mm
4970*1880*2690
Fuel tank volume
L
190
Hydraulic oil tank volume
L
96
This product is continuously improved with technological progress. The difference between the above listed parameters and structural characteristics and the actual product shall prevail in the actual product.
