High Temperature Material 3D Printing Filament Extrusion Line
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1995
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision 3d Printer Filament Extrusion Line for ABS/PLA 1.75/3mmNegotiableMOQ: 1 -
3D Printing Material Extrusion Line Filament ABS Strip Extruder for LabNegotiableMOQ: 1
-
3D Printing Filament Extrusion Line Mini 3D Filament MachineNegotiableMOQ: 1
-
PLA PVA PCL PETG PEEK PEI ABS 3D Printer Filament Lab Extruder Machine for LaboratoryNegotiableMOQ: 1
-
SJ25 Mini 3D Filament Extrusion Line Lab Small 3D Printer Filament Production Line Labarotary ExtruderNegotiableMOQ: 1

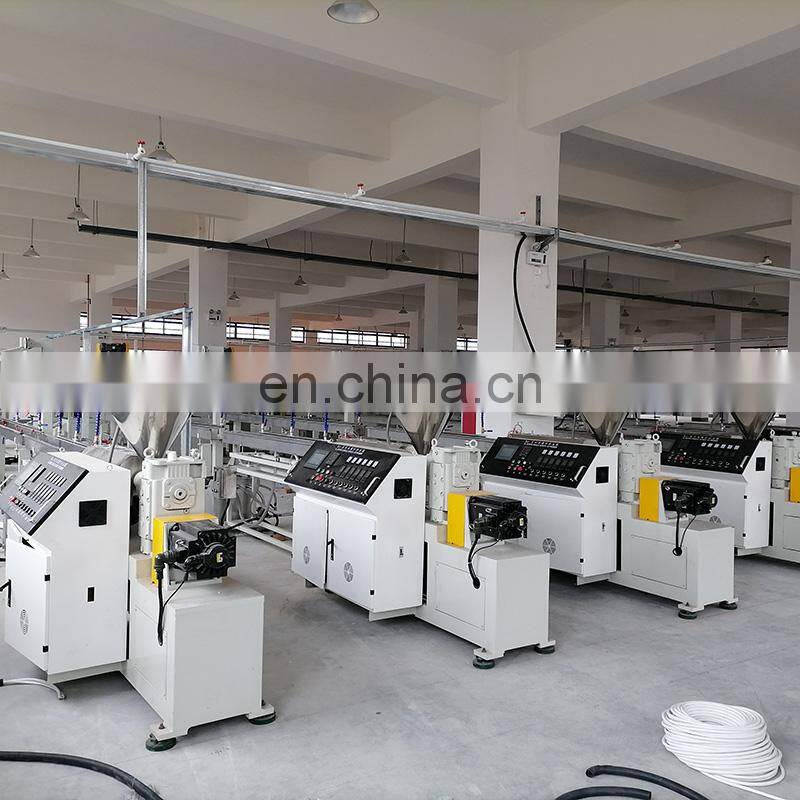

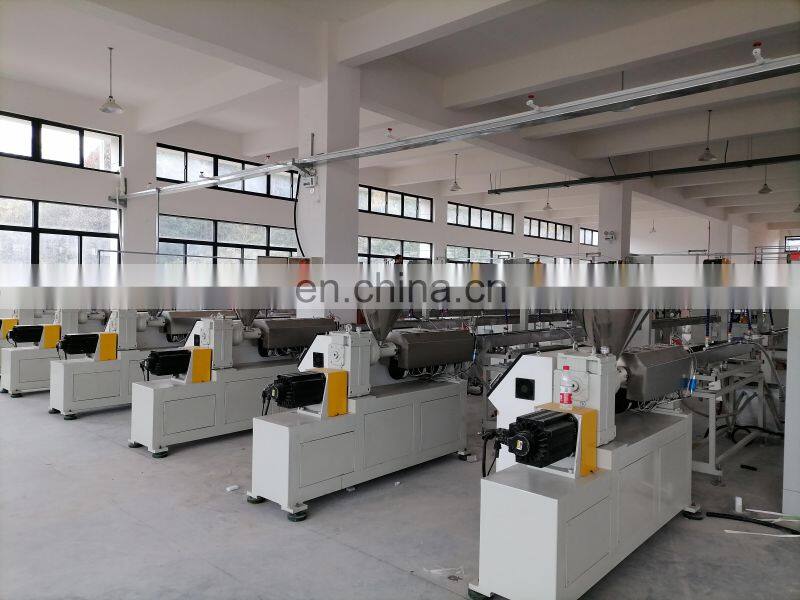

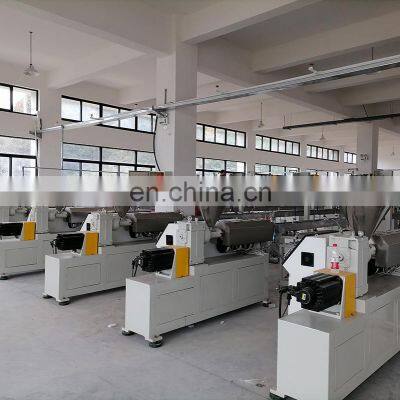

3D printing extrusion production line mainly includes:
1.Extruder
2.Mold
3.ZX water tank (including independent hot water tank)
4.Haul off machine
5.Winder (with meter counting and alarm)
6. Storage rack

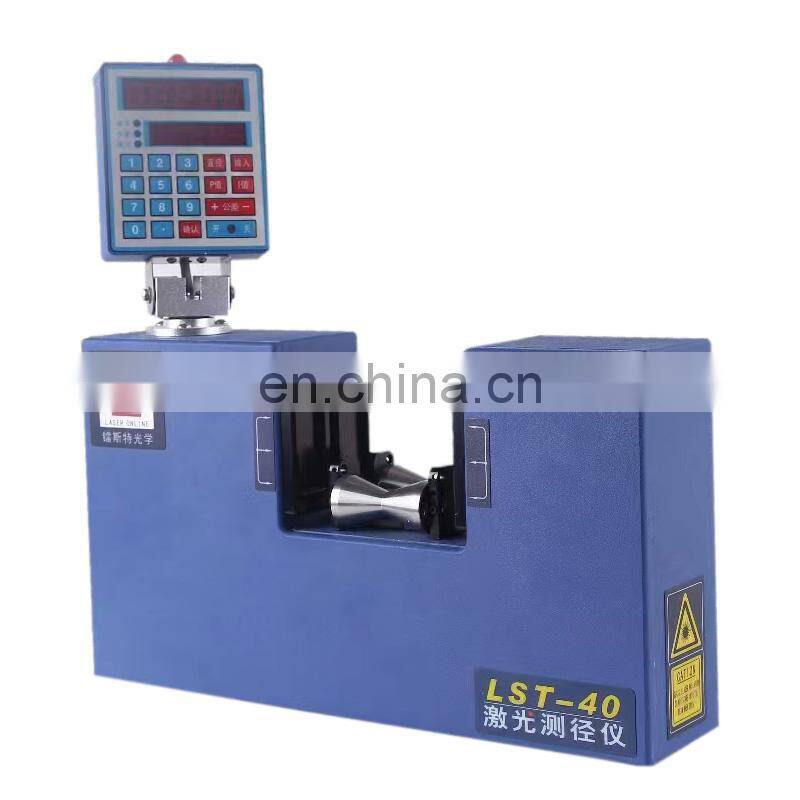

7. Laser measuring instrument (optional)
Advantages:
1. Compared with other suppliers using the same model, the capacity is higher.
2. Ideal tolerance: +/-0.03mm, even + / - 0.01mm.
3. It can produce filaments with different diameters of 1.5mm-3.0mm.

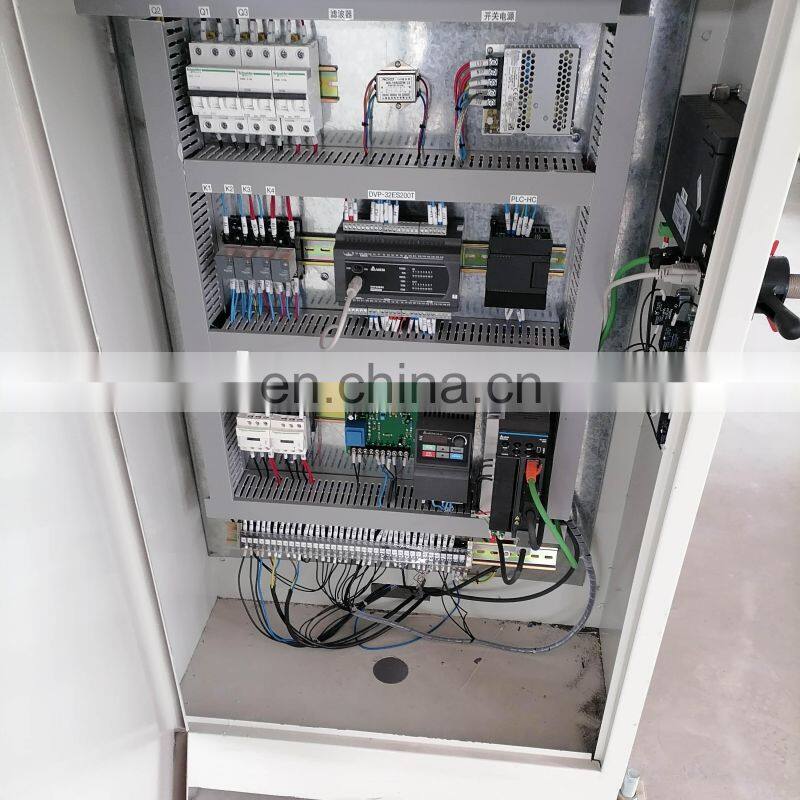

4. Easy to operate: PLC automatic control system.
5. Production of different raw materials: ABS PLA PA hips pet.
6. Low maintenance. After the machine was sold, we didn't receive any complaints.
7. We can provide installation services overseas
3D printing filament extruder | ||||||||
model | Capacity(kg/h) | Motor power(kw) | Diameter(mm) | |||||
SJ20 | 0.5 | 0.12 | 1.75 2.85 3.00 | |||||
SJ25 | 1-3 | 1.5 | 1.75 2.85 3.00 | |||||
SJ30 | 5-7 | 4.0 | 1.75 2.85 3.00 | |||||
SJ35 | 8-10 | 5.5 | 1.75 2.85 3.00 | |||||
SJ40 | 10-18 | 11 | 1.75 2.85 3.00 | |||||
Product Description

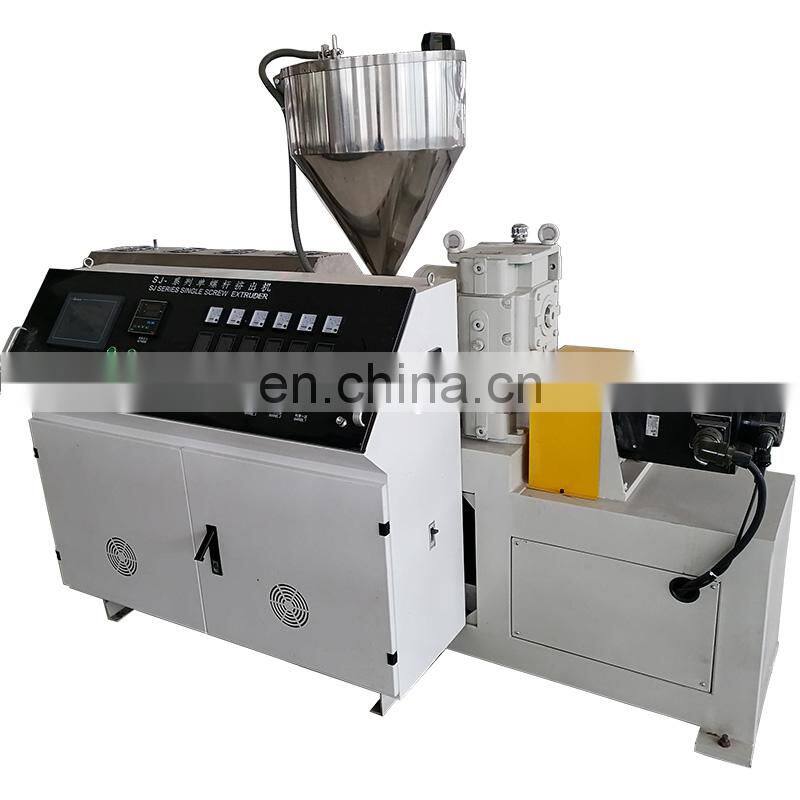

Extruder
1.Extruder screw diameter ：40mm
2.L/D:30
3.using 11kw servo motor
4.with 6 heating areas

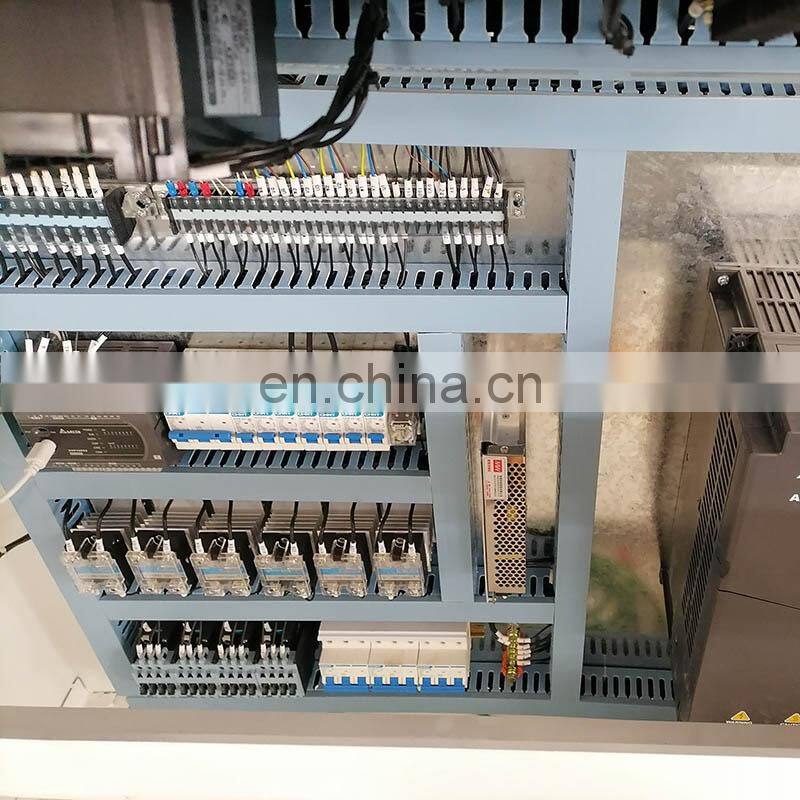

5.extrusion speed and heating temperature are controlled by PLC computer

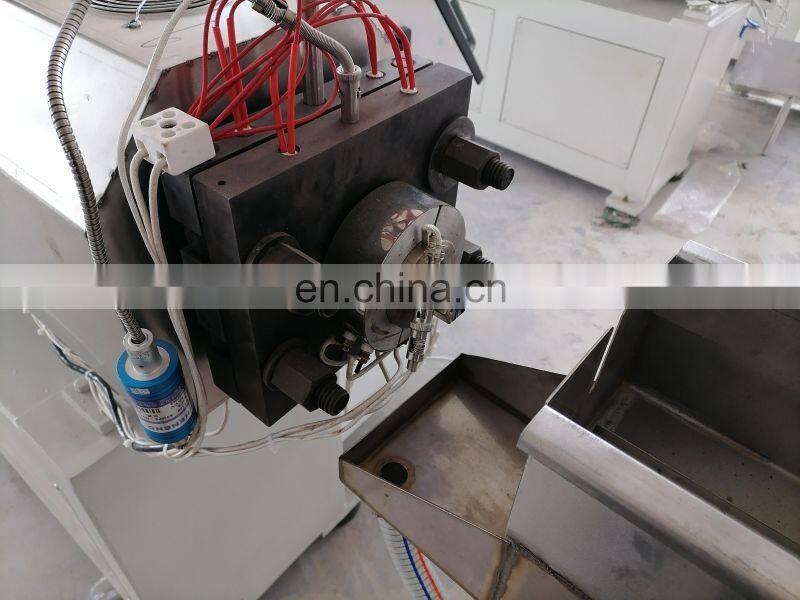

Mold part
Molds are customized according to customer needs. Common ones are 1.75mm, 2.85mm and 3.00mm, and the error is controlled within 0.02mm.

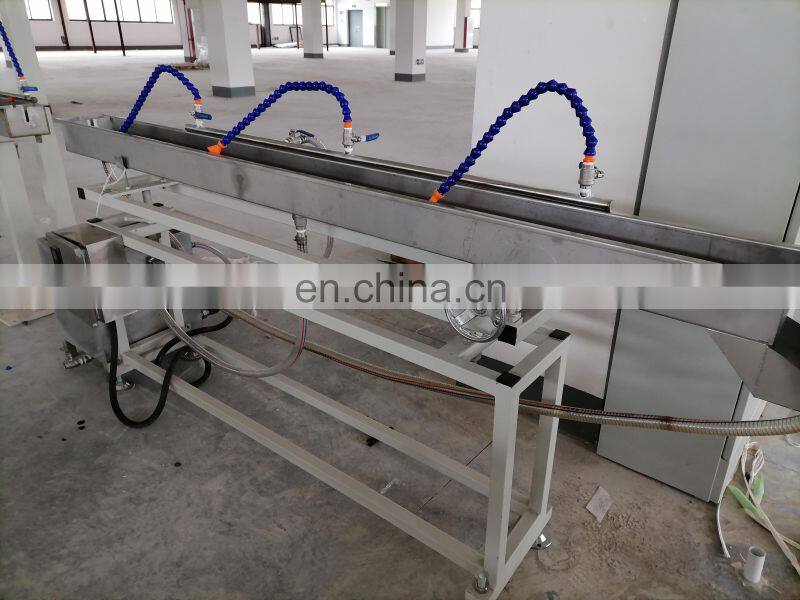

ZX water tank (including independent hot water tank)
The length of the sink can be customized according to customers' needs.Used for cooling and shaping filament.

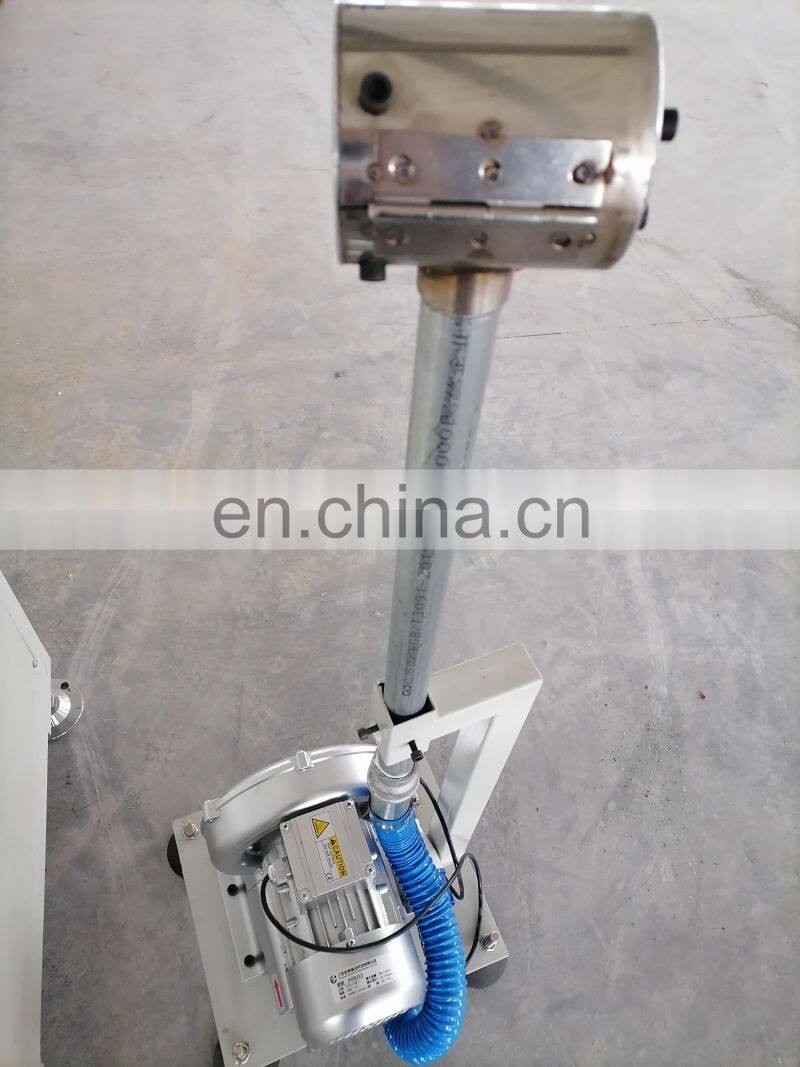

Dewatering machine
power：750W

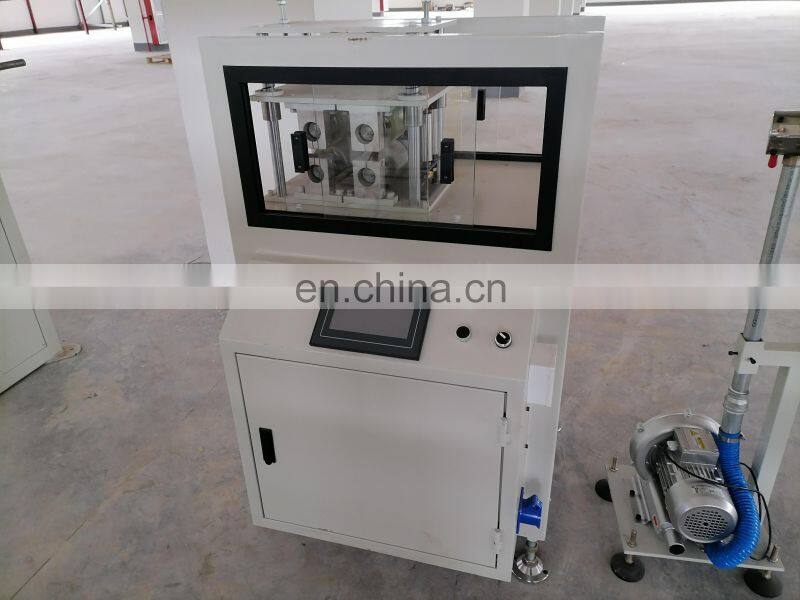

Haul off machine
1.Roller ：100mm
2.Power ：1.5KW servo motor
3.Traction speed： 0.5 ~ 100 m / min
4.Maximum traction ：800N

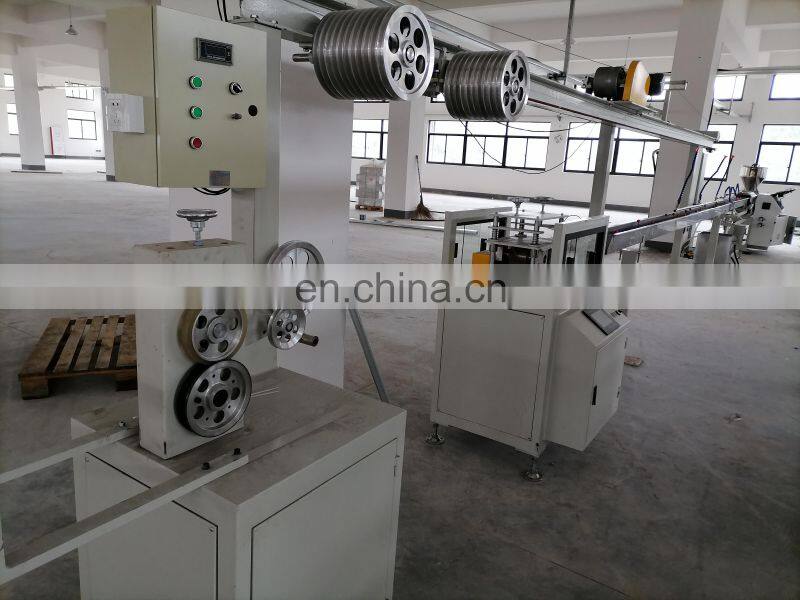

Storage rack
1.Storage capacity: 120m
2.Gear motor: 0.75KW
3.length:8000mm(Customizable）

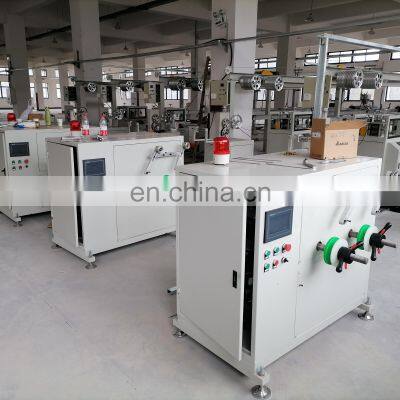

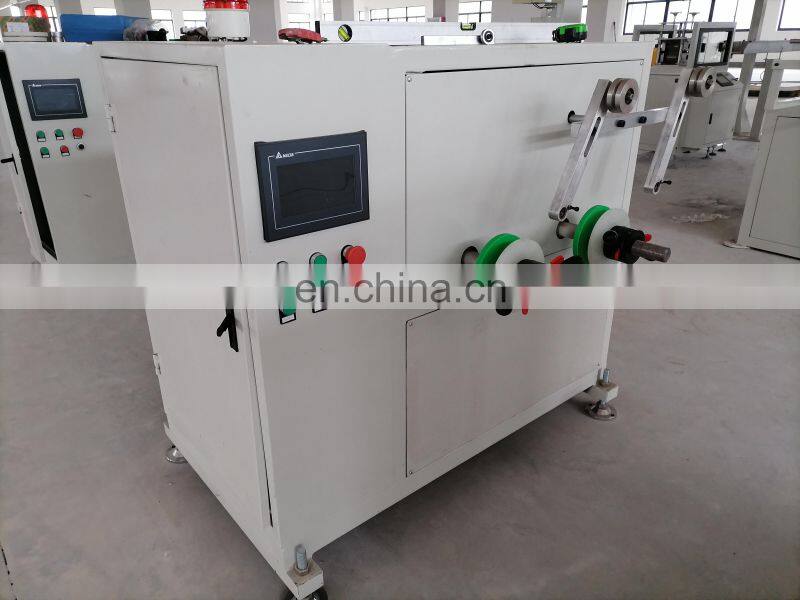

Winding machine（With meter counter and alarm）
1.Winder： 2
2. Winding motor： 2 sets, 1.1KW
3. Control system： Plc+ text control circuit
Company Profile
Zhangjiagang Huiping Machinery Co., Ltd.
The company is located in Zhangjiagang City, Jiangsu Province, which is an important place of mechanical production. It mainly produces various plastic pipe and profile extrusion production equipment, such as PVC plastic pipe profile production line, PE pipe production line, PP-R pipe production line, 3D consumables production line, high-speed mixer, centralized feeding system, etc. Can accept a variety of non-standard customized products. We have been engaged in the field of plastic extrusion for 12 years, accumulated rich experience and cooperated with many famous domestic universities, such as Peking University, Beijing University of technology, Suzhou University, etc. We will create a bright future for Huiping with the enterprise concept of the new century
We have been engaged in the field of plastic extrusion for 12 years and accumulated rich experience. We can accept all kinds of non-standard customized products. Looking forward to working with you.
Our Advantages
Packing & Delivery
After sales
1、after checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
2、after quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
FAQ
Q1. What material do you use?
A1.Such as PP、PPR、PVC、PE、ABS......
Q2. What diameter (mm) mould do you need（ Mold shape)?
A2. Round hole or square hole，What diameter or size?.
Q3.Other requirements of your equipment, such as port, power supply, output?
Our company will carry out customized production according to your needs.
