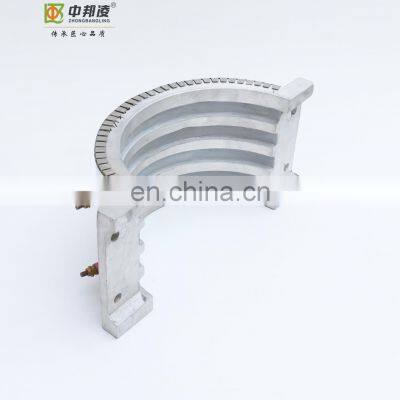

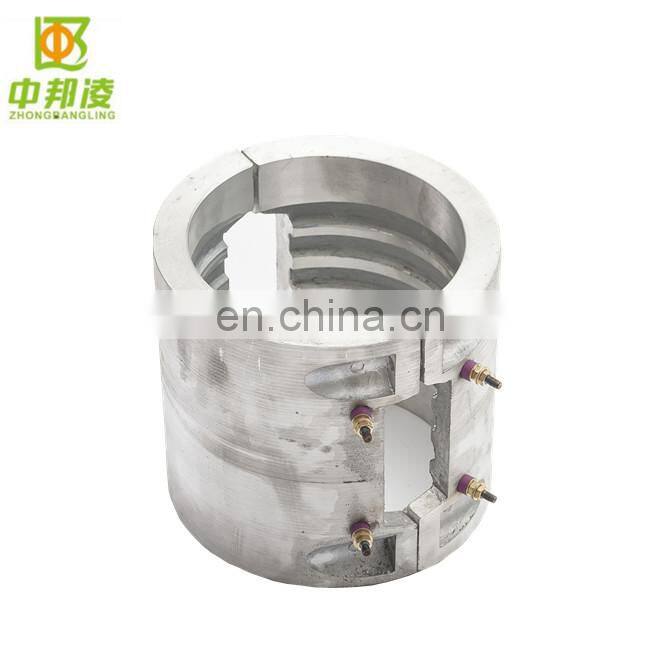

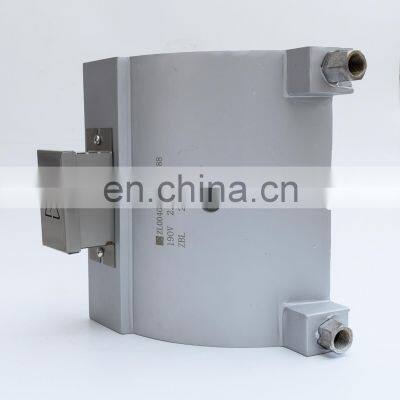

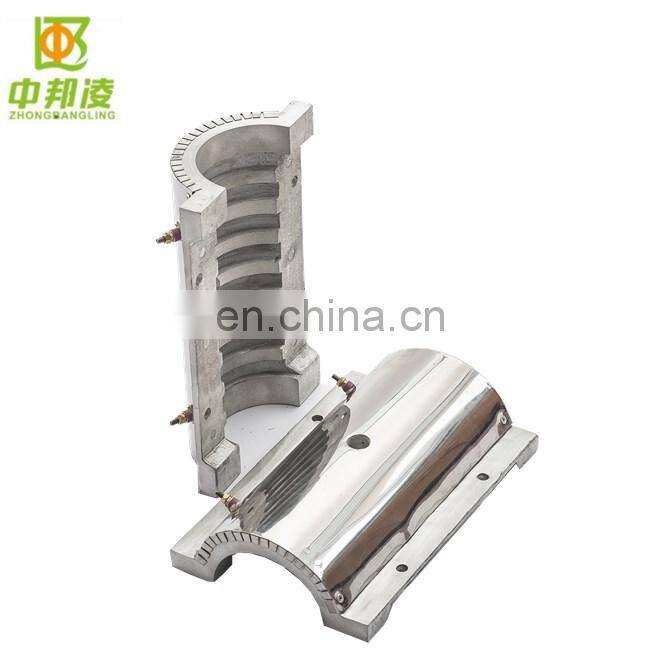

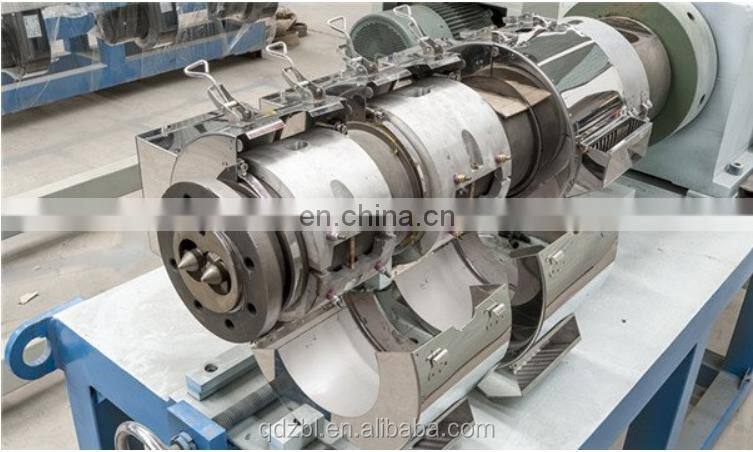

Cast in aluminum heater is mainly used for extrusion and casting moulding machines. It has a wide application in various machinery industries. The operation temperature can reach up to 300°C (Aluminium). In order to concentrate the heat to one direction on the injection face, the other sides of the product are covered by heat retention and heat insulation materials. So it has advantages such as advanced technology, high heat retention, long lifetime, anti-pollution, etc. It is widely used in plastic extrusion, chemical fibre, blowing moulding machines.



Table

Table

Model

Dimension(mm)

Voltage(V)

Power(W)

Key Technical Indexes

ZBL-SZL-Φ180Χ480

Φ180Χ480

380

3000

1.Use condition: environment temperature -20~+60°C,

Relative temperature <80%

2.Leakage current <0.5MA

3.Insulation resistance ≥8MΩ

4.Ground resistance <0.1MΩ

5.Voltage resistance: no electric breakdown for 1 minute under 1500V

6.Temperature endurance: 400-830°C

7.Power deviation +8%-8%





ZBL-SZL-Φ220Χ514

Φ220Χ514

380

4000

ZBL-SZL-Φ200Χ80

Φ200Χ80

220

1000

ZBL-SZL-Φ265Χ290

Φ265Χ290

380

8000

ZBL-SZL- L215Χ170

L215Χ170

250

1000

ZBL-SZL- L240Χ100

L240Χ100

220

900

ZBL-SZL- L150Χ150

L150Χ150

230

800

ZBL-SZL- L300Χ200

L300Χ200

240

2000

ZBL-SZL-L198XW140XH214

L198XW140XH214

250

5500

ZBL-SZL-L150XW110XH180

L150XW110XH180

250

3000

ZBL-SZL-L260XW80XH80

L260XW80XH80

220

2000

ZBL-SZL-L280XW196XH250

L280XW196XH250

220

8000

Note: Other models are available according to your specifications.

Please refer to the Order Guide





Order Guide

Please specify the following when ordering.

  1. The inner diameter (mm) and length (mm) of heaters
  2. Thickness of heaters
  3. Terminal length (max & min) and the distance of terminal length
  4. The diameter, length of cooling tubes and the distance between them.
  5. Voltage and power density
  6. Gap of two pieces if applicable
  7. Wiring type and position

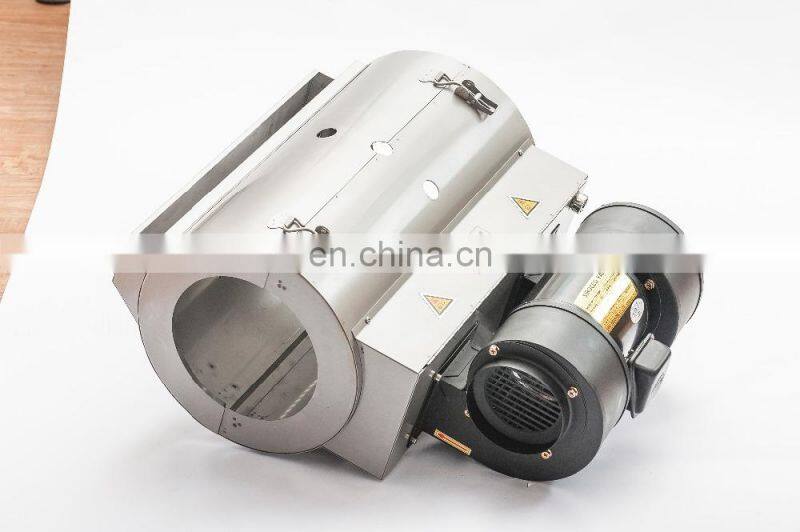

  8. Whether need air blowers
  9. Content of the stamping if needed
  10. Order quantity
  11. Delivery date

* It’s better to provide us with the drawings/pictures

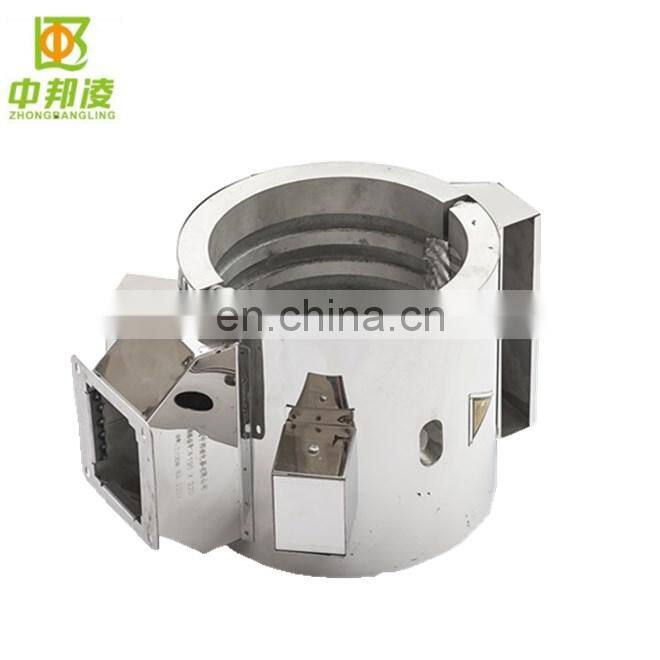

Others: position of terminal box, the position and size of the hole for connecting thermocouple OR of the incision, whether need to cast in the terminal
