Product Description

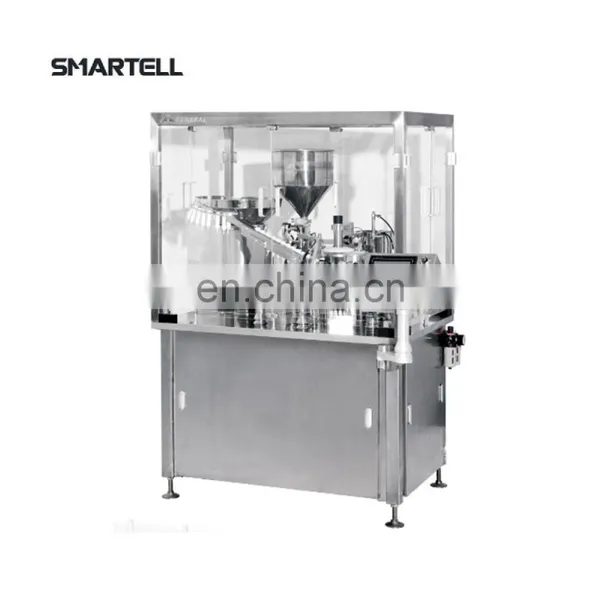

Plastic Syringe Filling And Closing Machine
Syringe Filling and Caps Closing Machine is to vacuum fill plastic syringes and simultaneously plug.Before the filling, the automatic compaction rubber plug push rod and the maximum limit of the air inside the syringe, reduce the pronge to ensure that the filling without bubblesduct oxidation and guarantee the product quality.
1. New Generation
This machine for your company has been the third generation of our cooperation and progress.
2. New design,High quality
This machine adopts syringe needle mouth up, and adopts the syringe needle mouth filling method. Avoid syringe filling dripping phenomenon in the process of filling .
The machine can fill the syringe with the liquid drop back suction function and fill the liquid, eliminate the positive pressure of the liquid, and make sure the product quality is not left after filling the syringe.
The suction function makes the syringe pressurized, and the non-liquid is seeped from the glue plug and the lid, ensuring the quality of the product during transportation.
The machine is subvacuum filling, and the doctor does not inject the air when use syringe.
3. Low Error Rate
The machine adopts stainless steel ceramic pump valve, And the filling error can reach less than 1%.
4. Precision Design, improve accuracy and delay product life
This machine assembly line laser detection sensor adopts the German Siemens brand, the detection is accurate.
The stainless steel parts of assembly line adopt mechanical, chemical two-way polishing, and chemical passivation treatment, which really makes GMP's requirements on the surface of parts.
This machine part adopts the obtuse Angle design and manufacture, The real GMP requires the medicine machine to facilitate the cleaning requirement.All parts of this machine are only numbered with laser code, which is convenient for user purchase and quality traceability.
This machine adopts imported brand, insulation leather (resistant to ethylene oxide and various disinfection organic solvents), not easy to oxidize, long service life.
5. Safe use and timely alarm
This machine is equipped with door stop protection, fault sound and light alarm protection which has three levels of password protection. And the touch screen display and record. All these can guarantee the operation of the equipment.
Lack of caps stop alarm rate | 100% | The success of add caps rate | 100% |
The success of add caps rate | ≥99% | Noise | ≤45db |
Production Capacity | 50PCS/MIN | Material Contact Part | 316L Material |
Voltage | Three-phase 380V 50Hz | Power | 1.7KW |

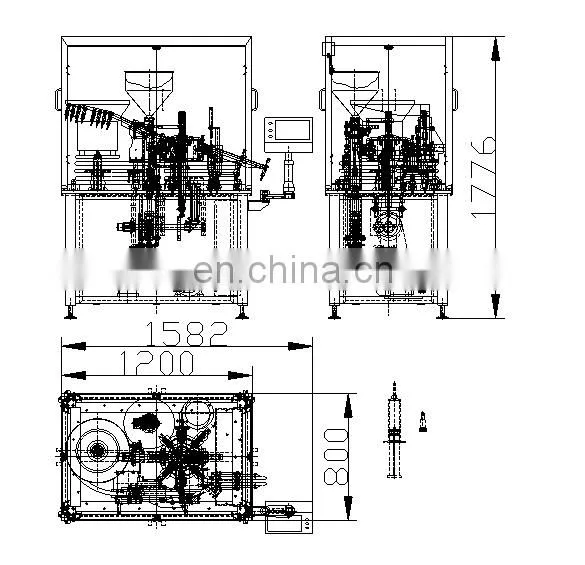

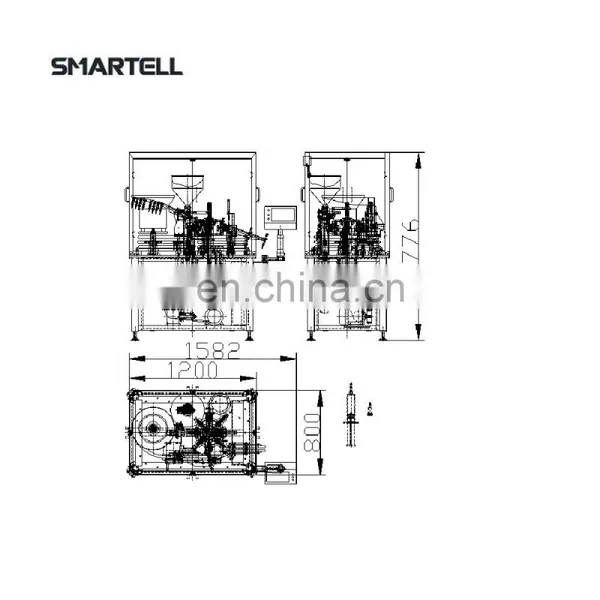

Compressed Air | 0.7MPA | Outline Dimension | 1582*800*1776mm |
Packaging | Wood Case | Weight | 680KG |
A.Our factory service
1,General Provide non-standard automatic pharmaceutical packaging equipment design and manufacturing.
2,General Provide automation pharmaceutical packaging equipment installation, debugging, equipment maintenance services.
3,General Provide automatic pharmaceutical packaging equipment upgrade design and renovation service.
