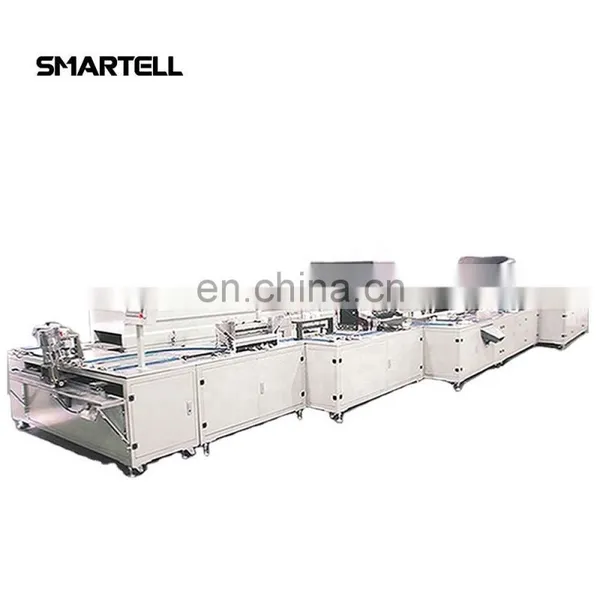

Disposable Medical Needle Assembly Machine
This needle assembly machine machine is used to assemble and adhere hub, cannula, and cap of disposable needle, including coating oil on the cannula. It is suitable for all size needle. The hypodermic needle assembly machine adopts the Keyence programming control system, and the panel is easy to operate with the touch screen. The servomotor coating mechanism is smooth and uniform. The detection system adopts the Keyence CCD image system from Japan, with high speed at 45 pcs in one second for detecting unqualified needle , and the pneumatic configuration adopts imported components. This syringe needle assembly machine is full automatic which can greatly reduce the labor intensity of operators.
| Simultaneity Assembly Speed | 50pcs Cannula each time |
| Application | small type: diameter range 0.4~0.55mm |
| average type:diameter range 0.6~0.8mm | |
|
extra large type:diameter range1.2~1.6mm |
|
| Capacity |
70,000pcs per hour (for master) |
| Operator |
6 person( including 4 operators and 2 inspectors) |
| Extra Air Pressure |
≥0.60Mpa |
| Extra Airflow |
≥300Nl/min |
| Power Supply |
380V * 50Hz*15Kw*3P+N+PE |
|
8Kw for Normal working time |
|
|
15Kw for working after half an hour |
|
| Dimension |
7000mm(L)*3400mm(W)*1600mm(H) |
| Weight |
3000KGS |
