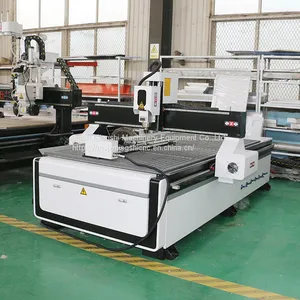

1530 Heavy Duty CNC Router Cutting Machine with Rotary For 2D 3D Cutting

Name: 1530 Heavy Duty CNC Router Cutting Machine with Rotary For 2D 3D Cutting
Brand: Mingshi
Price: USD $1999 - 2999 / Set

FOB Price

USD $1999 - $2999 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao/Shanghai/Yiwu/Daian/Guangzhou/Tianjin/Shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail:15 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Mingshi	Place of Origin:	China	Model Number:	MSW1325
Certification:	ce sgs	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	3 years
Weight:	850kg	Dimension(LWH):	320017601850mm	Voltage:	220v/380v
Condition:	New	Power(W):	3.2kw	CNC or Not:	CNC

Product Description

/product-detail/New-Promotion-Jinan-MISHI-CNC-1325_1600538139914.html?spm=a2747.manage.0.0.2a5871d2KpbrBB

Technical Parameters

1325 4 Axis 3D CNC Router With Rotary Axis
Model	1325 4 Axis 3D CNC Router With Rotary Axis
Working Area	13002500350mm
Rotary size	Diameter:30cm.length:200cm

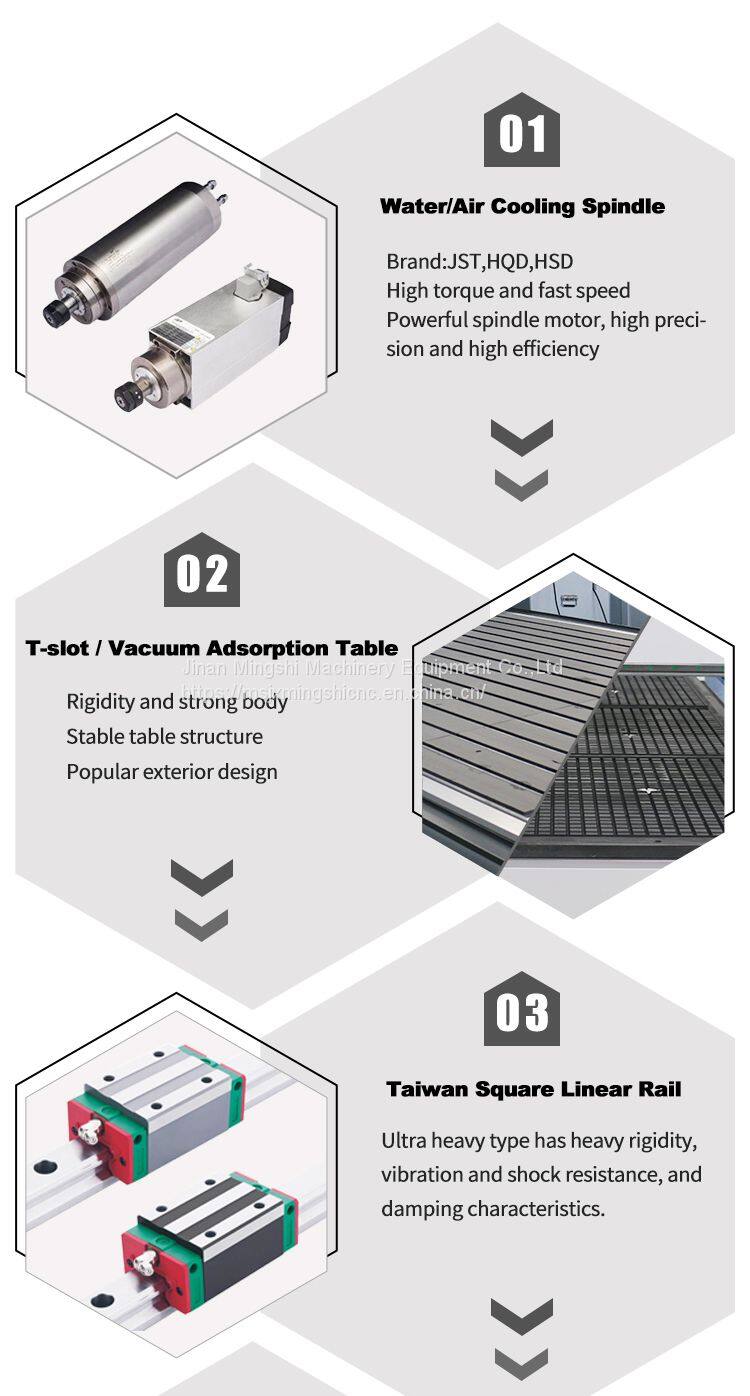

Spindle	3.2kw, 24000 rpm, water cooling
Table	T slot Table or vacuum suction
Clamps	6 pics
Transmission	Germany Rack and pinion for x.y, ball screw for z
Guideway	Taiwan PMI 20mm linear guideway
Resolution	0.01 mm
Speed	25 m/min
Inverter	Fuling brand from Shenzhen
Driver	China step &Leadshine motor
Code	G Code, HPGL Code
Working delicacy	0.03mm
Repositioning accuracy	0.005mm
Power Supply	380V/3P .50Hz
Controlling System	4axis DSP A18s
Lubrication	Manual lubrication
Software	UcanCAM or Type3
Packing	Wooden Box
Packing size	3.21.92.22m
Net Weight	1000 kg
Gross Weight	1200 kg
Accessories	1.Control unit 2. Dust cover 3.3 KW double bags Dust collector&tube 4. Cutting tool 10 pic 5. Manual 6. One pice limit for spare

/product-detail/New-Promotion-Jinan-MISHI-CNC-1325_1600538139914.html?spm=a2747.manage.0.0.2a5871d2KpbrBB

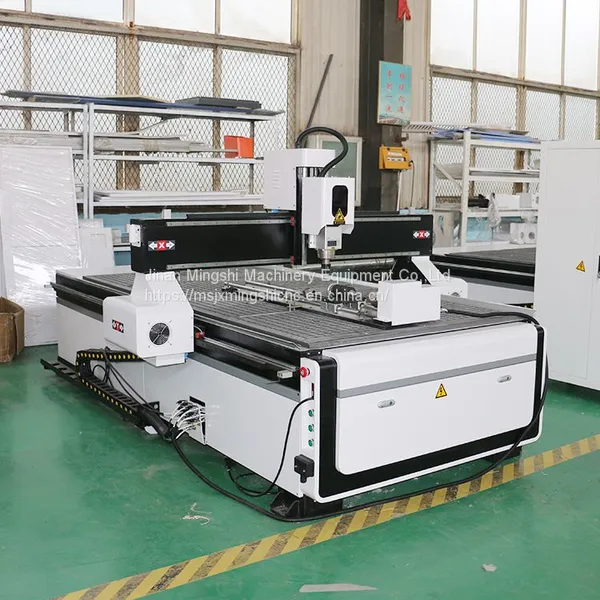

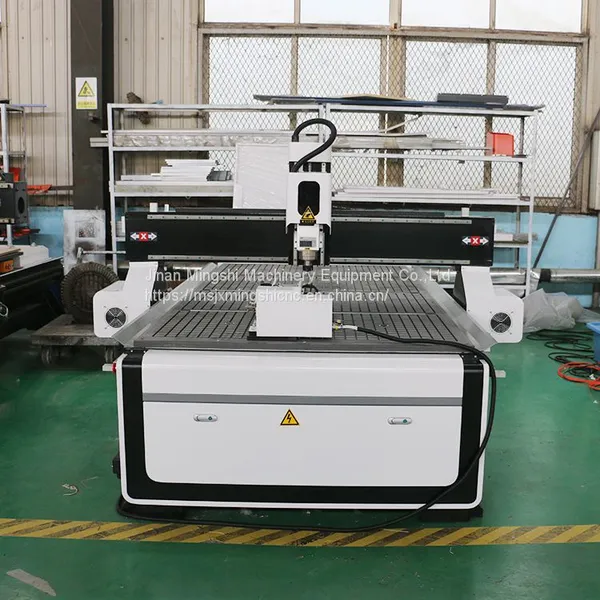

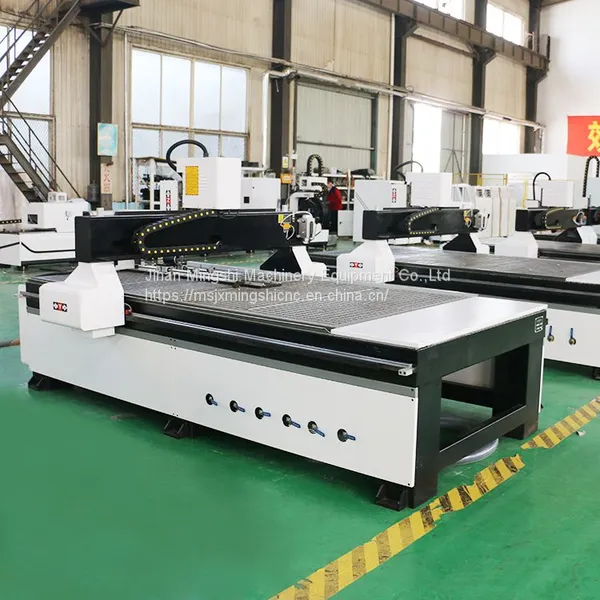

Detailed Images

Product Description

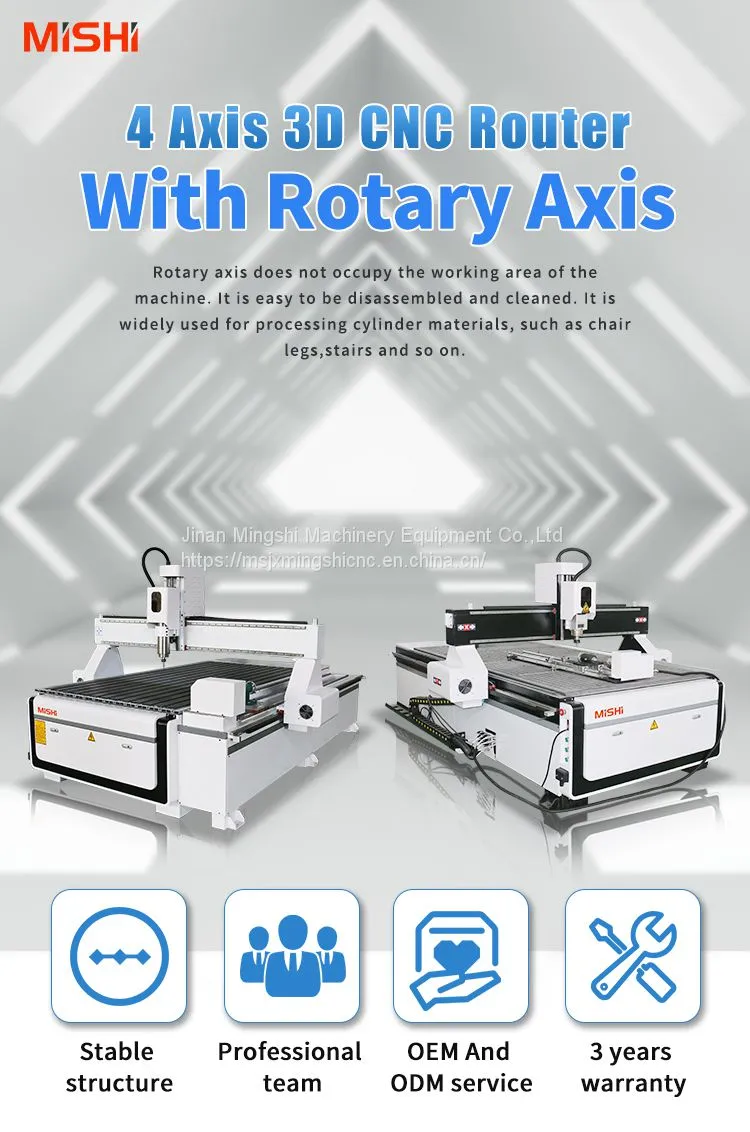

Advantage
The machine uses a four-axis controller, not only able to cut and engrave flat wood, MDF, chipboard,    plywood, etc, but also can engrave 3D on round columns， like furniture legs, statues, figures, and so on.
Breakpoint recovery function in case of power off or other accidents.

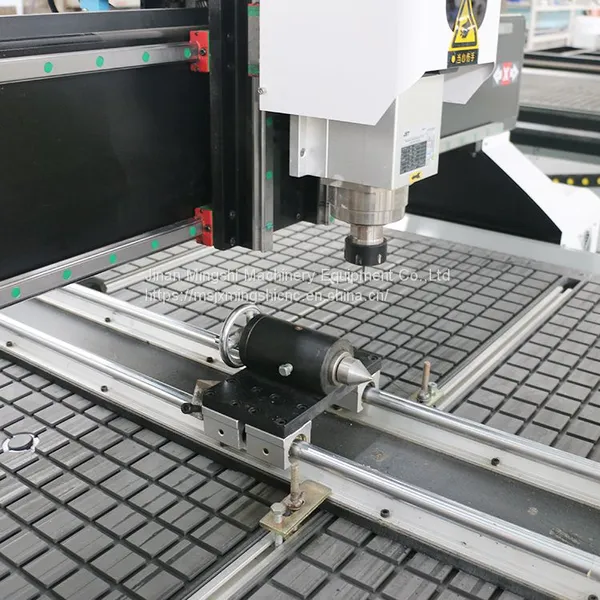

The 4th rotary axis is put at the side of the machine body.It does not cover the space of a flat table, easy to load and unload material.
Rigid and durable structure.
All the components have CE certification, safe and durable.

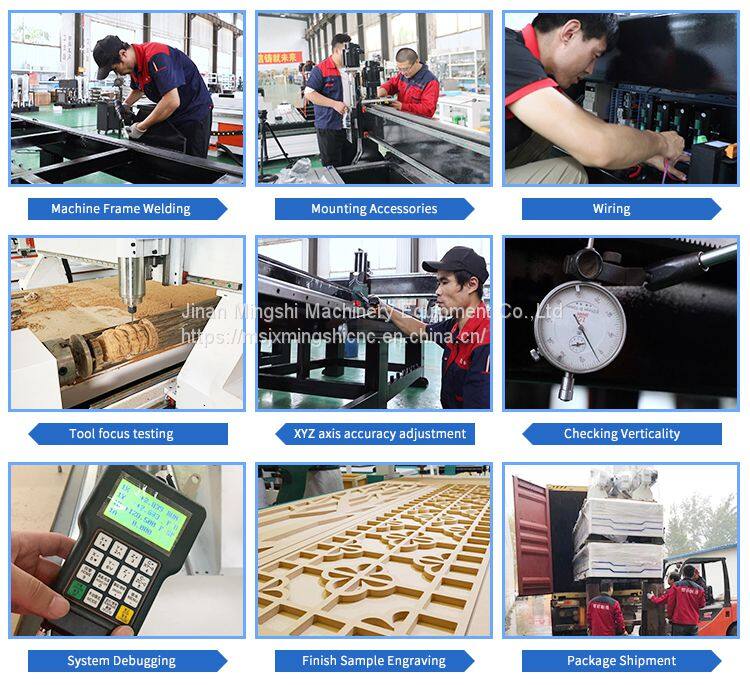

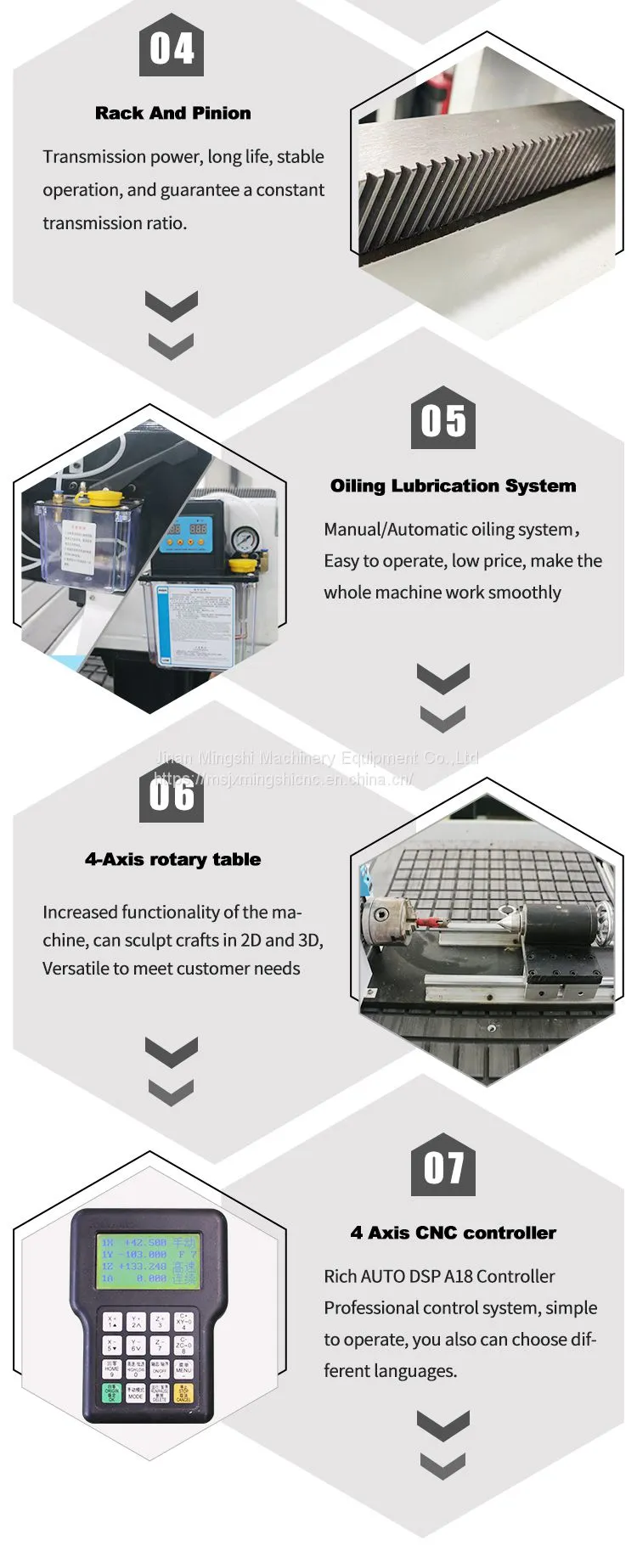

Technological Process

Application

Product Application
1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors, and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3. Plate processing: insulation part, plastic chemical components, PCB, inner body of the car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic, and soft metals such as copper, aluminum plate engraving, and milling process.

Sample Display

Company Introduction

Jinan Mingshi Machinery Equipment Co., Ltd

Our company was established in 2010, we have 11 years of experience in CNC Router and Industrial laser equipment integrating R&D, design, sales, and production.
We have CE and SGS certification, units that value quality and keep promises.
We have a CNC router, wood router, fiber laser cutting machine, and industrial laser equipment.
Team
We have professional technical and salesman participates in more than 50 large-scale industrial exhibitions at home and abroad, showing machines to more than 30,000 potential customers.
Factory
Our factory covers an area of 10000 square meters and has a modern workshop. There are about 100 production technical personnel and more than 15 research personnel.
After Sales Services
We have professional pre-sales and after-sales service Mingshi CNC team
 1. 24/7 online service.
 2. 3 years warranty for the machine.
 3. After-sale office in a different country
 4. Free spare parts with shipping.
 5. Free online technical support and installation train.

Alibaba website: /index.html?spm=_index.88.5.31dd104eTmvMM3
Shipping and Packing
Packaging Details
1. Outside package: Standard export plywood case for CNC Router for advertising. 2. Inner package: Stretch film and plastic film for humidity.
Port
Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
FAQ
Q: How to install and maintain the machine?
A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How many days do the goods ready to ship?
A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?
A: The specific transportation method can be selected according to the needs, like by sea, by air, or by train. Our trade terms are mostly centered on FOB, but we offer EXW, CIF, depending on which is more convenient for you.
Please feel free to send us an inquiry or message to know more about the machine.
We specialize in CNC routers and laser machines for 12 years
The response will be within 1 minute during working time, And within 6 hours during off duty time.
you haven't found the machine you need, don't hesitate to contact us too.  We will do our best to give you the best suggestion. We can also supply products related to our machines
