Home > Products > Mud Pump Accessories > Pump Parts/Southwest Mud Pump Spare Parts/Ceramic Sleeve

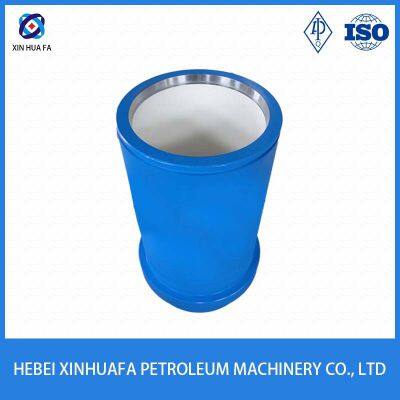

Pump Parts/Southwest Mud Pump Spare Parts/Ceramic Sleeve
US$ 0.3 - 1000
/ Piece
3 Pieces(Min. Order)
- T/T
You May Like
-
Hebei Supplier/Drilling Rig Safety Vavle/ API Standard Relief Valve
-
API 7K Emsco Type Oilfield F800 F1300 Drilling Mud Pump Valve Seat
-
Bomco Mud Pump F1600 Fluid End Parts Charge /Fluid End Module
-
Petroleum Machinery Parts/Cylinder Parts /Bomco Mud Pumps/Mud Pump Spare Parts/ Ht400 Fluid End Spare Parts /Professional Supplier of Mud Pump Plunger/Piston
-
F Series Mud Pump Cylinder Liner and Parts for Drilling Rig (F500 F800 F1000 F1300 F1600)
-
Triplex Mud Pump Parts/Bomco Mud Pump/Liner Flange
Product Description
Application
Oil Driling
MOQ
3
Certification
API&ISO
Forged Steel
45#
Specifications
Standard
Outer Sleeve
Forging
Yield Strength
>450MPa
Hardenss
180
Transport Package
Wooden Bag and Sea Shipment
Trademark
XINHUAFA
Origin
Hebei
HS Code
8413910000
Production Capacity
50000 Sets/Per Year
Product Description
Contact
| Company | Hebel Xinhuafa Petroleum Machinery Co. LTD |
| Address | Chang'an District,Shijiazhuang,Hebei,China |
| Contacts | Anne Yang |
| Mobile | +86 17831121697 |
spare parts for drilling machine/pump parts ceramic cylinder liner
Advantage compared to alumina:zirconia exhibits better impact strength;
zirconia is harder than alumina;
zirconia can be honed to finer surface finishes than alumina. Finished to 4RMS, the zirconia liners provide a surface finish that is three to four times finer than alumina.
All three of these property advantages translate to lower ownership costs. The improved wear directly extend the service life of the sleeve, while the improved impact strength reduces significantly the costs of replacing broken liners in the field. The surface finish improvements, meanwhile, have an indirect effect. The finer surface finish means less friction with the elastomer-and-metal pump pistons, which in turn extends piston life and reduces pump-cooling requirements.,
Based on phase transformation toughening technology and featured by good resistance to corrosion,high pressure and high temperature,high strength and rigidity,good performance and longer service life above 4000hr,the zirconia ceramic cylinder
liner is applicable to the well drilling,offshore oil and natural gas development,which has deep oil reservoir and bad geological structure.
We provide the following liners and much more:
EMSCO: F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600,D-375, D-700;
GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11;
IDECO: T-500, T-800, T-1000, T-1300, T-1600
NATIONAI: 7P-50, 8P-80, 9P-100, 10P-130, 12P-160, K-700, K-700A, K-500, K-500A,
OILWELL: A-350PT, A-560PT, A-600PT, A-850PT, A-1100PT, A-1400PT, A-1700PT
OMEGA: Opi1000; LS: 3NB-800, 3NB-1000, 3NB-1300, 3NB1300C, 3NB-1300C;
QZ: Sl3NB-1300, Sl3NB-1300A, Sl3NB-1300B, Sl3NB-1600.
company profile:
Hebel Xinhuafa Petroleum Machinery Co. LTD was established in 2006,with 5000m2 plant.The company focuses on R&D of mud pump fittings and several R&D results were horned with awards as well as patented for invention. The company is engaged in product design, manufacturing and service on all the quality oilfield replacement parts, including mud pump fluid end parts including Fluid end modules, liners, pistons, valves,&seats, extension rods, piston rods, valve covers etc.
The company holds a professional technical team and is equipped with advanced machineries,improving the technical skills and updating product quality,
Our products are certified by ISO9001 quality control. We supply products not only our oilfields company of domestic, but also dozens of countries all over the world, such as USA, Russia, Indonesia and Iran. With several years' persistence, we are widely accepted as a professional supplier of high quality mud pump cylinder liners and other parts in fluid end modules.
We supply mud pump spare parts like mud pump liner including zirconia ceramic liner and high chrome bimetallic liner, Mono-metal Liner, fluid end module, valve and seats, piston, piston rod, pony rod etc. parts for mud pump, we can also customize and machine as your drawing.
