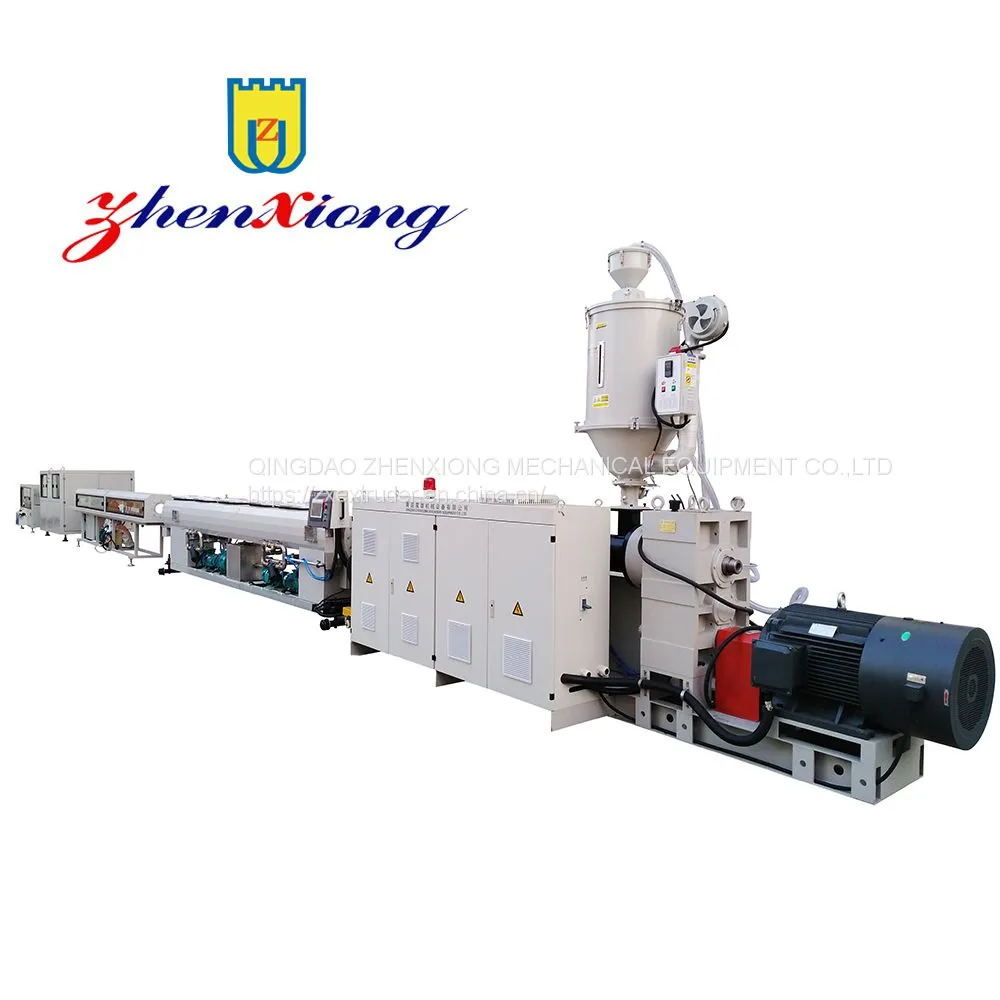

PE/HDPE Plastic Pipe extrusion line
Large diameter HDPE pipe (630mm)production line machine
1. PE/HDPE Plastic Pipe extrusion line Usage:
PE, HDPE pipe is mainly used in water draining, nature gas transport.
2. PE/HDPE Plastic Pipe extrusion line Machine feature:

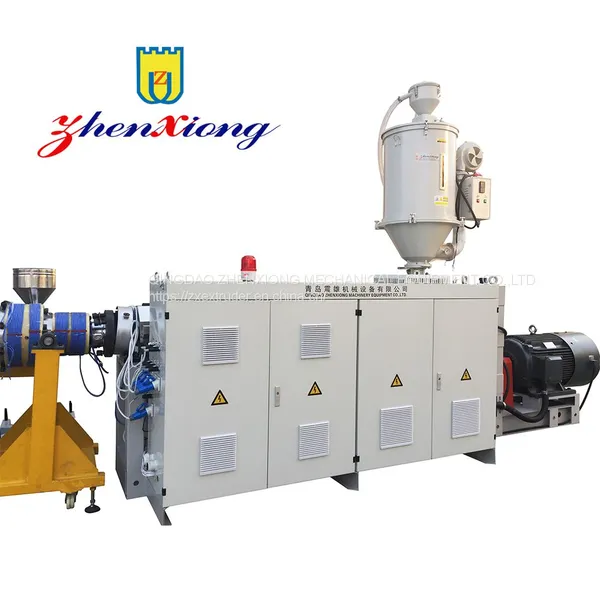

High efficiency single screw extruder: high rotation speed, high capacity and good compounding effect ensures stable extrusion.
Extruding die: it adopts latest designed die head with spiral distributing flow channel, built-in ntrol device which make extrusion more evenly and regulution more conveniently.
Vacuum calibration and spraying cooling trough: advanced water loop vacuum calibration, equipped with adjusting device for roundness and multi-section 6m spraying water tank, ensure perfect calibration; the body of tank is made of stainless steel.
Haul off unit: can select 2 claw,4 claw,6 claw,8 claw haul off unit to satisfy manufacturing requirements for different pipes.
Cutting unit: base on different reuirements,we can adopt saw cutting,planet saw cutting and chip-free rotary knife cutting etc.
Control system: all kinds of control system is available, such as PLC automatic control system, make operation easily and smoothly.
3. PE/HDPE Plastic Pipe extrusion line Technical parameters:
| Model | ZX-PE63 | ZX-PE250 | ZX-PE450 | ZX-PE630 | ZX-PE800 | ZX-PE1200 |
| Extruder size | φ75/33 | φ75/33 | φ90/33 | φ120/33 | φ150/33 | φ150/33 |
|
Pipe diameter (r/min |
φ20-φ63 | φ75-φ250 | φ110-φ450 | φ315-φ630 | φ315-φ800 | φ630-φ1200 |
|
Total power (KW) |
125 | 230 | 380 | 550 | 800 | 1000 |
| Overall size(m) | 28X4X3 | 40X8X3 | 52X8X36 | 60X10X4 | 70X10X4 | 78X11X4 |
4 Plastic PE Pipe Making Machine is consist of
| EXTRUDER | 1 SET |
| VACUUM SIZING TANK | 1 SET |
| SPARY TANK | 1 SET |
| HOUL-OFF MACHINE | 1 SET |
| CUTTING MACHINE | 1 SET |

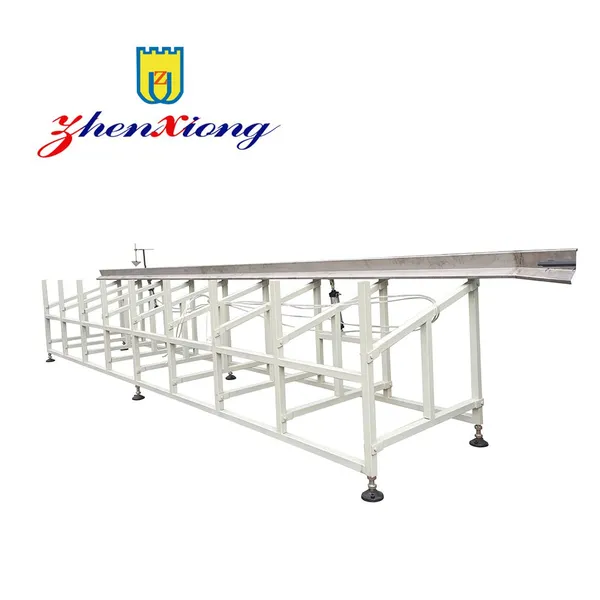

| STACKER | 1 SET |
Our products have exproted all over the world.After Sales Service
1. Full life cycle worry-free service.
At Zhenxiong, We care about the customers experience and service; we put great importance to collecting customers feedback. That is why we keep constant communication with our old customers by our service representatives.
2. Professional Service Team.
Zhenxiong is proud of her own 8 well-trained and experienced After-Sales Service Engineers, who are providing timely technical support for our customers around the world, day and night.
3. Quick response, Minimize the downtime.
24-hour on Call, Customers can get in-time service from Zhenxiong to fix any of their issues.
4. The fastest supply of high-quality parts to resume the production.
Our warehouse can quickly and accurately deliver necessary spare parts to our customers. Less downtime means more output.
If you are interested in our corrugated pipe machine,please contact me at any time.
now we have ready made machine in the factory.
