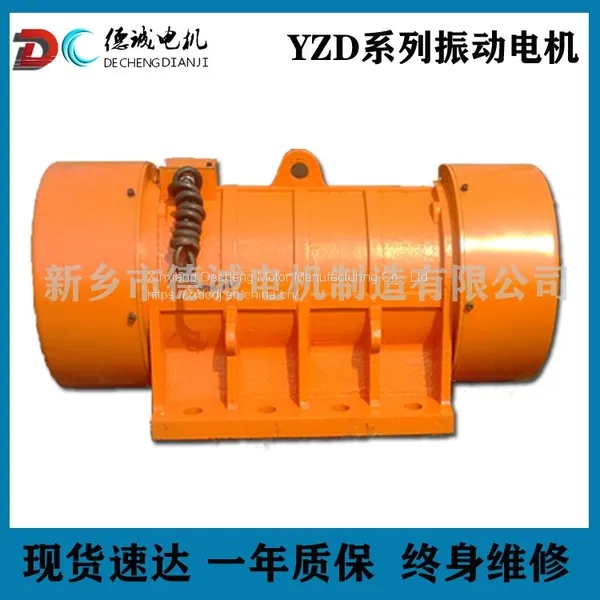

Help CenterYZD-2.5-2 Vibration Motor 0.22KW Three-phase Asynchronous Vibration Motor
Related Products
-
YZO-16-2 Vibration Motor 1.5KW High Speed Vibration MotorNegotiableMOQ: 1 Piece -
YZS-3-6 Vibration MotorNegotiableMOQ: 1 Bag
-
ZG405 Vibration Motor 0.25KW Vibration MotorNegotiableMOQ: 1 Piece
-
VB-20156-w Vibration Motor VB Vibration MotorNegotiableMOQ: 1 Piece
-
YZS-20-6 Vibration Motor Power: 1.5kw, Excitation Force: 20KN, Current: 4.5a, Speed: 1000 RpmNegotiableMOQ: 1 Bag
Yzd-2.5-2 vibration motor (power: 0.22KW, voltage: 380V, large vibration force: 2.5KN, level 2 vibration motor, speed: 3000 RPM, mounting hole size: 130*80)
Decheng YZD vibration motor price concessions, YZD vibration motor model specifications, spot supply, warranty for one year, welcome to inquire and order
YZD vibration motor introduction:
YZD vibration motor, YZS vibration motor, YZU vibration motor are the same series of vibration motors, their installation size is the same, performance and specifications can be replaced with each other at the same time. YZD vibration motor has the advantages of lightweight compact body, beautiful appearance, because of the design of YZD vibration motor for many parameters optimization, its price also has more competitive advantages in the market.
YZD vibration motor service conditions:
Ambient temperature: -20 ° C to +40 ° C
Altitude: 1000 M
Voltage: 380 V
Connection: Y/delta
Insulation class: B or F
Power supply frequency: 50 Hz
Working mode: continuous
Installation mode: arbitrary direction
Yzd-2.5-2 vibration motor appearance, installation size and technical parameters:
Type excitation force (KN) work rate (KW) current (A) frequency (r/min) installed size weight (Kg)E F G H I L M N N φd
Yzd-2.5-2 2.5 0.22 0.66 130 80 19 80 200 240 164 118 4 12 14
