Help CenterTouch Screen 110v Digital Laboratory Electric Shear Homogenizer High Speed Shear Disperser for Cosmetics Cream
Related Products
-
JR-100S High Quality Laboratory Electric Overhead StirrerNegotiableMOQ: 1 -
Laboratory Use Overhead High Speed Stirring Stirrer Mixer for High ViscosityNegotiableMOQ: 1
-
JB300-D StirrerNegotiableMOQ: 1
-
JR-25 Lab Use SS316 Head High Shear Dispersing Emulsifier for Beauty ProductsNegotiableMOQ: 1
-
Fisco-5L FISCO Reactor System (Lab Scale)NegotiableMOQ: 1
(1) High quality plastic body, stainless steel operating head and controller
(2) The Speed Controller, with cruising speed control technology and IC speed detection technology, can immediately and effectively compensate the speed change that caused by the load change and power supply voltage fluctuation.
( 3) Automatic overload protection
(4) The “H” type of this series can display the speed intuitively to its digital display, in order to facilitate the acquisition of experimental data.
Technical Specifications
| Model | JR500T | ||||
| Rated voltage | 220±10% VAC(can customize 110V 60HZ) | ||||
| Rated frequency | 50/60 Hz | ||||
| Input power | 850W | ||||
| Output power | 500W | ||||
| Rated torque | 178 N·cm | ||||
| Work mode | S1 (continuous) | ||||
| Speed control | Yes | ||||
| Speed range | 5000~28000 rpm | ||||
| Dynamic detection speed | Yes | ||||
| Speed memory function | Yes | ||||
| Overload protection function | Yes | ||||
| Speed display | ×10 rpm LED | ||||
| Timing control range | 1~1000 min | ||||
| Work head maximum torque | 175 N.cm | ||||
| Work head Material | stainless steel 316L# | ||||
| Bearing material | PTFE | ||||
| Standard configuration | 12G | ||||
| Adaptation head | 18 G, 24 G, 30 G, 36 G | ||||
| Permissible ambient temperature | Lower than 40°C | ||||
| Permissible relative humidity | Less than 80% | ||||
| Size of the mixer (T x B x H) | 215×310×720 mm | ||||
| Product Weight | 8.7 kg | ||||
| Work head parameter | |||||

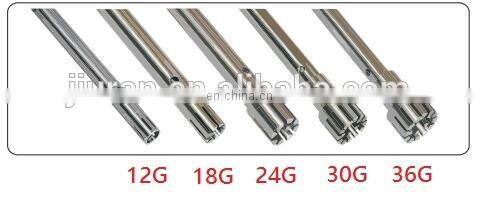

| Work head Model | 12 G | 18 G | 24 G | 30 G | 36 G |
| Mixing capacity (H2O) ml | 30~800 | 50~1500 | 80~5000 | 100~8000 | 150~13000 |
| Mixing processing viscosity (cp) | 1000 | 2000 | 5000 | 6000 | 7000 |
| Rotor maximum linear velocity (m/s) | 12 | 15 | 18 | 22 | 26 |
| Work head Immersed in liquid height (mm) | 35/150 | 45/160 | 50/165 | 60/170 | 65/175 |
| Work head Diameter (mm) | 12 | 18 | 24 | 30 | 36 |
| Work head length (mm) | 215 | 222 | 225 | 235 | 238 |
| Permissible ambient temperature (°C) | 120 | 120 | 120 | 120 | 120 |
Packing List
| Order | Item | Number | Order | Item | Number |

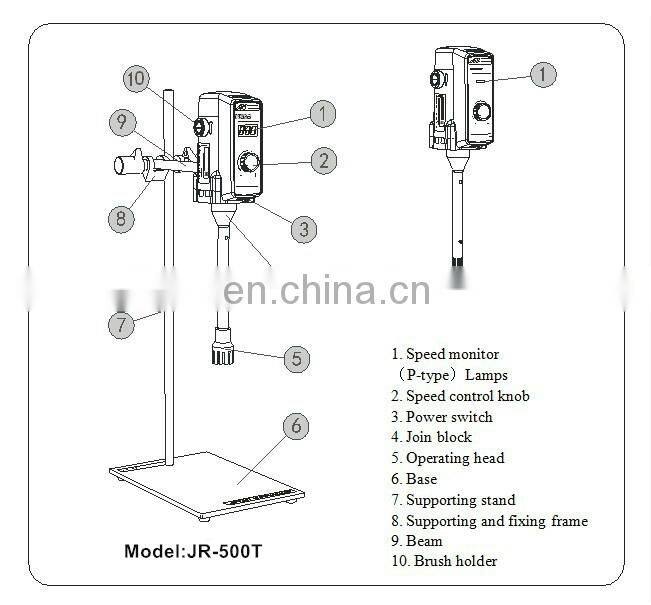

| 1 | Heterogeneous host | 1 | 5 | Supporting and fixing frame | 1 |
| 2 | Base | 1 | 6 | Operating head | 1 |
| 3 | Supporting stand | 2 | 7 | Brusher(Spare) | |
| 4 | Beam | 1 | 8 | Operation manual | 1 |
Options:

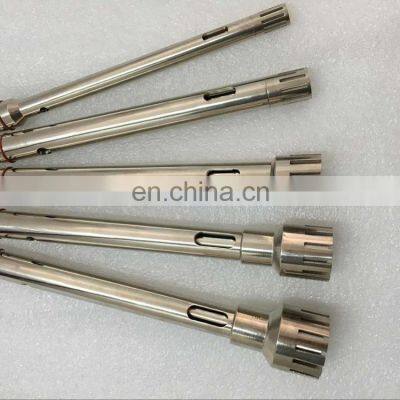

Note: The operating head in the main picture is just for reference. The outlook of the operating head is different depending on your choice (refer to the operating head diagram). Except for the options provided here, other operating head could be chosen as well, and the price is different. Please contact us for details.
| JR500D-SH | Speed Range | Operate Head | Handling Capacity | Price |
| Option 1 | 500-15000 rpm | 24 G | 50-5000 ml | - |
| Option 2 | 500-15000 rpm | 30 G | 100-8000 ml | Add USD$55 |
| Option 3 | 500-15000 rpm | 36 G | 150-13000 ml | Add USD$165 |
The default option is option1. If you don't contact us to change the option, we will ship the option1 to you!
1)To protect the electrical motor, please do not run the mixer over 20 minutes consecutively for each use.
2) Please ensure the motor cools down completely after each use and before the next use; otherwise, the motor may be damaged.
3) Idling may damage the machine. Please place the operating head in the liquid before use. Then turn on the machine, and rotate the speed adjusting knob rightward slowly.
