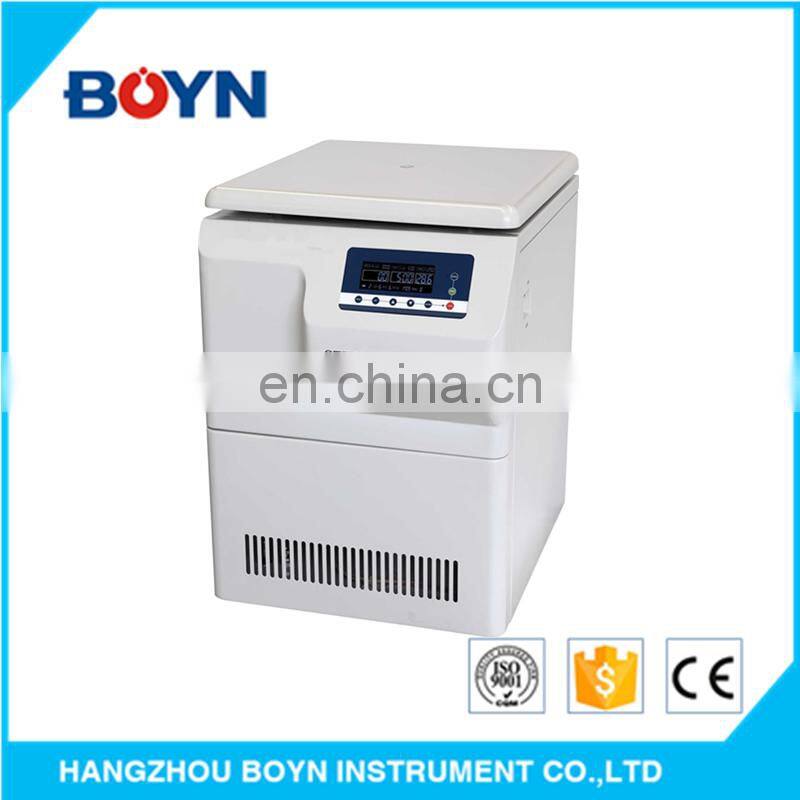

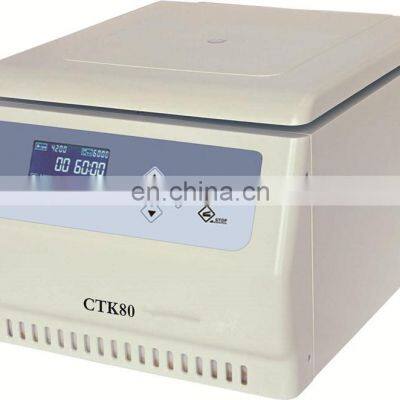

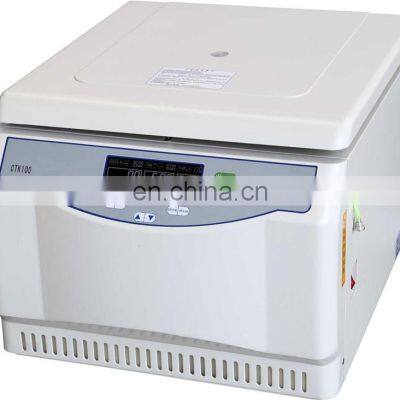

CTK Series LCD display blood bag/bank Automatic decaping low speed centrifuge
CTK Series
Vacuum blood collection tubes are widely used in blood collection for hospitals,caps has to be opened by hand after centrigation,it affects the centrifugation efficiency.
Features:
Applied to blood collection tubes and more than 90% tubes can be automatically decapped.
Applied to 100mm and 75mm length tubes.
LCD display for easier use.Driven by AC frequency-conversion motor,with functions of speed control,acceleration and deceleration.
RCF value can be automatically calculated.
Special damping set releasing the vibration.
Electronica interlock for better safety.
Technical Parameters:
|
Model |
CTK32 |
CTK48 |
CTK80 |
CTK100 |
|
Type |
Tabletop |
Tabletop |
Tabletop |
Tabletop |
|
Max. Speed |
4000rpm |
4000rpm |
4000rpm |
4000rpm` |
|
Max. RCF |
2980xg |
3030xg |
3030xg |
3030xg |
|
Max. Tubes |
32(4x8) |
48(4x12) |
80(100mm) |
100(75mm) 84(100mm) |
|
Time Setting Range |
1s to 99min59s |
1s to 99min59s |
1s to 99min59s |
1s to 99min59s |
|
Noise |
≤65dB(A) |
≤65dB(A) |
≤65dB(A) |
≤65dB(A) |
|
Total Power |
370W |
600W |
700W |
700W |
|
Power Supply |
AC220V 50Hz 5A |
AC220V 50Hz 6A |
AC220V 50Hz 6A |
AC220V 50Hz 6A |
|
Dimension (W x D x H) |
470x560x380mm |
420x535x370mm |
470x560x380mm |
470x560x380mm |
|
Package Dimension (W x D x H) |
547x727x422mm |
487x762x422mm |
547x727x422mm |
547x727x422mm |
|
Net Weight(kg) |
38kg |
48kg |
49kg |
50kg |
|
Model |
CTK120 |
CTK132 |
CTK150 |
|
Type |
Floor |
Floor |
Floor |
|
Max. Speed |
4000rpm |
4000rpm |
4000rpm |
|
Max. RCF |
3370xg |
3370xg |
3850xg |
|
Max. Tubes |
120(4x30) |
132(4x33) |
150(6x25) |
|
Time Setting Range |
1s to 99min59s |
1s to 99min59s |
1s to 99min59s |
|
Total Power |
1100W |
1100W |
2000W |
|
Dimension (W x D x H) |
560x660x850mm |
560x660x850mm |
700x880x930mm |
|
Package Dimension (W x D x H) |
756x856x1320mm |
756x856x1320mm |
820x1000x1080mm |
