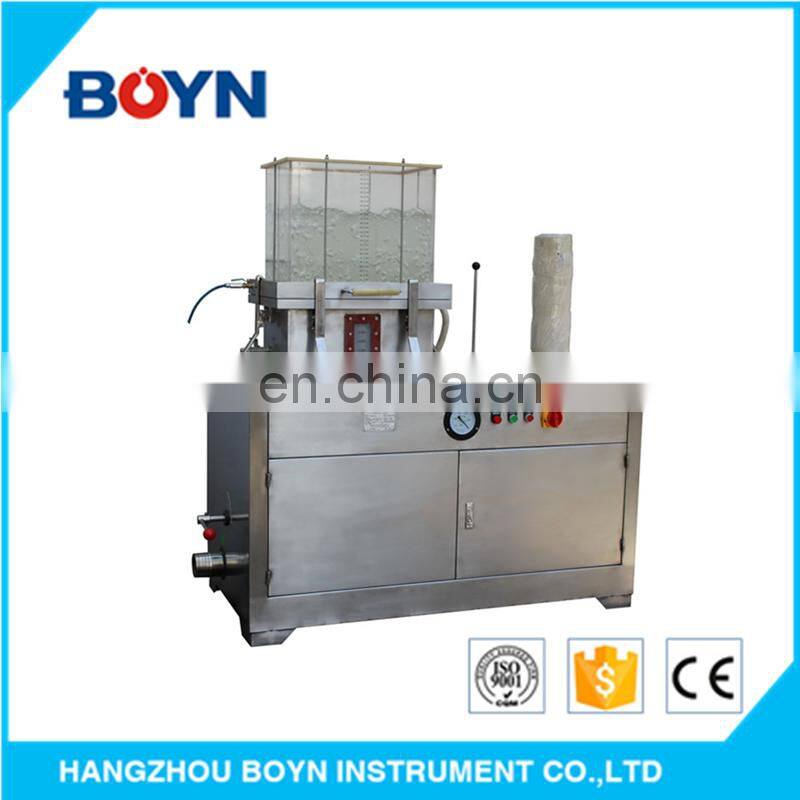

PL6-A3 Stainless Steel Square Handsheet Former for Laboratory Use
- T/T Credit Card
You May Like
-
Y108A Yarn Colour Chart Winder for Sample Card
-
Y108S Yarn Colour Chart Winder for Various Sample Cards
-
Y208A Fabric Color Chart Winder for Sample Cards
-
YG11 Fabric Moisture Permeability Cup
-
YG026C Multifunctional Electronic Fabric Strength Tester
-
LX-1262 Lux&FC Multi-parameter Digital Led Lux Meter With Competitive Price
Product Description
stainless steel square handsheet former for laboratory use
PL6-A3
Characteristics:
PL6-A3 type rectangular handsheet former is the experimental device that fibers are made into rectangular thin slice paper that the size is 480mm x 320mm, vacuum formed by large diameter valves rapid release water and adopts PL0 type that is high vacuum degree of three stage centrifugal pump for auxiliary filtration and molding. Using manual and stirring two ways for pulp uniformity before forming. suit for various Super slice ,ultra thick paper,superfine fiber forming. Subsequent experiments adopt my company production PL8-00 hydraulic press to match for assistant pressing and extrusion moisture. Matching PL7-C flat sheet dryer or PL7-B type quick dryer for drying pattern.
Technical parameters:
|
Sheet size |
480mm x 320mm forming |
|
Beater cylinder volume |
60L |
|
Vacuum pump motor power |
2.2kW voltage 380V |
|
Pump vacuum degree |
-0.092 to 0.098Mpa |
|
The pumping volume |
80 ~ 120L/min |
|
Size |
1700mm x 750mm x 1580mm |
|
Material |
304 stainless steel |
