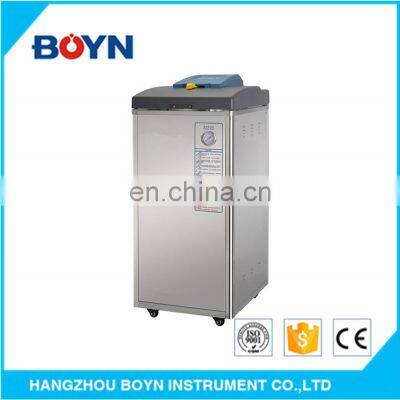

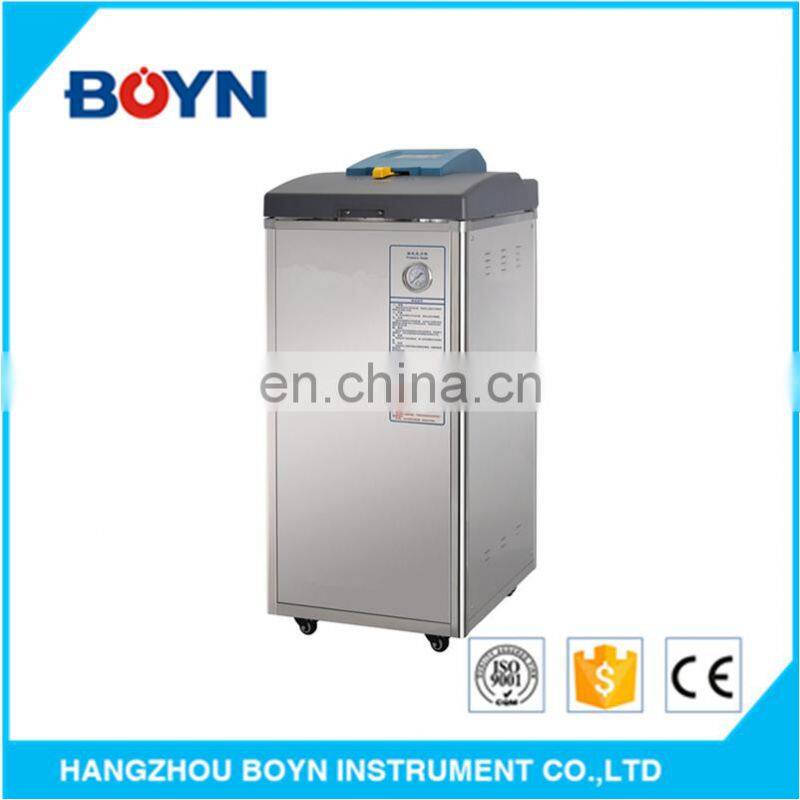

LDZF-50KB-II Hot Sale Large Supply Capacity Vertical Steam Pressure Sterilizer/Autoclave
NameLDZF-50KB-II Hot sale Large Supply Capacity Vertical Steam Pressure Sterilizer/Autoclave
Product Model LDZF-50KB-II
Scope of application
This type of product meets the national provisions of pressure vessel design standard. Our factory has obtained the necessary license of sterilize products and certificate of State Food and Drug Administration. this vertical pressure steam sterilizer is an new type of product from our factory. The product has the sfety of structural design, the sterilizer is equipped with interlocking device. The cover is locked when it has pressure in the chamber. No heating after operating mistake. The main part of the national standard for medical operations. It is an ideal product to sterilizing instrument, dressing, medicine,glassware, culture medium at the medical health care, universities and colleges, biological reserch, food and chemical industry.
Sterilization principle
Pressure Steam Sterilizer is designed for the use of heat to kill microorganisms principle. Sterilization principle is to use the principle of gravity displacement of the steam from the top down in the sterilizer, the cool air is discharged from the vent, replaced by cold air discharge saturated steam, the use of the latent heat released by steam sterilization to achieve the article . The advantage of using steam heat sterilization method that has a strong bactericidal effect, which can increase the water content of bacterial protein, making it easy to solidification due to heat, the acceleration process dead microorganisms.
Features
|
1,Hand wheel lid structure |
8,Auto exhaust |
|
2,Automatic control of the sterilization cycle program |
9,Sterilization temperature setting range(50℃-134℃) |
|
3,Interactive safety interlock device |
10,Double scale numerical indication pressure gauge |
|
4,Water supply cut protecting equipment |
11,Self inflating type seal |
|
5,Digital window display working status |
12,Sterilization end automatic alarm |
|
6,Time setting range(0-99Hours) |
13,Printer(option) |
|
7,The work pressure is 0.217Mpa |
Technical parameters
|
Configuration |
Auto exhaust |
Volume/GW |
50L/90Kg |
|
Power |
220V/3.5Kw |
The main material/ Thickness(mm) |
stainless steel/2.0 |
|
Sterilization chamber Volume(mm) |
Φ370×500 |
Packing size(mm) |
660×610×1120 |
Main parts
|
NO. |
Name |
QTY. |
NO. |
Name |
QTY. |
|
1 |
Pressure controller |
1 |
2 |
Power Switch |
1 |
|
3 |
Solid-state relay/440V 40A |
1 |
4 |
Heater/3.5Kw |
1 |
|
5 |
Spring loaded safety valve/0.217-0.24Mpa |
1 |
6 |
Relief valve/0.25Mpa |
1 |
|
7 |
Pressure gauge/1.6 class |
1 |
8 |
Seal ring |
1 |
|
9 |
3/8"Solenoid valve |
1 |
10 |
Computer board |
1 |
|
11 |
Fan/125FZYZ-S 220V 25W |
1 |
12 |
|
