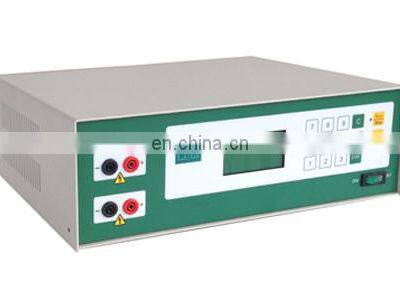

JY High-Voltage Temperature Control Electrophoresis Power Supply

JY lab High-Voltage electrophoresis power supplies

JY

Model:JY1000E

Characteristic features

• Touch keys, dual core microprocessorintelligent control;

• 0-9 digital button, make the operation more simple andconvenient;

• Indicate the preset value and the actual output value at the same time;

• It can store 100 electrophoresis methods;

• With automatic memory function;

• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);

• With a pause control function (including real-time tuning)

• With standard, timing, V-hr, step-by-step operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

Specifications

Technical specifications

Model:JY1600C

Characteristic feature

• Touch keys, dual core microprocessor intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With automatic memory function;

• With standard, timing operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

Specifications

Characteristic feature

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 20--1600V, 1--100mA, 1--160W.

Timer Range: 1min~99hr, 59min

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

JY1600E

Characteristic features

• Touch keys, dual core microprocessorintelligent control;

• 0-9 digital button, make the operation more simple andconvenient;

• Indicate the preset value and the actual output value at the same time;

• It can store 100 electrophoresis methods;

• With automatic memory function;

• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);

• With a pause control function (including real-time tuning)

• With standard, timing, V-hr, step-by-step operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

Specifications

Technical specifications

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 20--1600V, 1--100mA, 1--160W.

Timer Range: 1min~99hr, 59min

V-hr Range: 1~99999V-hr/ Increment 1V-hr

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Model:JY3000E

Characteristic features

• Touch keys, dual core microprocessorintelligent control;

• 0-9 digital button, make the operation more simple andconvenient;

• Indicate the preset value and the actual output value at the same time;

• It can store 100 electrophoresis methods;

• With automatic memory function;

• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);

• With a pause control function (including real-time tuning)

• With standard, timing, V-hr, step-by-step operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

Specifications

Technical specifications

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 20--3000V, 1--400mA, 1--400W.

Timer Range: 1min~99hr, 59min

V-hr Range: 1~99999V-hr/ Increment 1V-hr

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Model:JY5000E

Characteristic features

• Touch keys, dual core microprocessorintelligent control;

• 0-9 digital button, make the operation more simple andconvenient;

• Indicate the preset value and the actual output value at the same time;

• It can store 100 electrophoresis methods;

• With automatic memory function;

• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);

• With a pause control function (including real-time tuning)

• With standard, timing, V-hr, step-by-step operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

Specifications

Technical specifications

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 20--5000V, 1--200mA, 1--100W.

Timer Range: 1min~99hr, 59min

V-hr Range: 1~99999V-hr/ Increment 1V-hr

Display:  LCD display with backlight

Output jacks: Two sets of output jacks

Model:JY10000E

Characteristic features

• Touch keys, dual core microprocessorintelligent control;

• 0-9 digital button, make the operation more simple andconvenient;

• Indicate the preset value and the actual output value at the same time;

• It can store 100 electrophoresis methods;

• With automatic memory function;

• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);

• With a pause control function (including real-time tuning)

• With standard, timing, V-hr, step-by-step operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

Specifications

Technical specifications

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 20--10000V, 1--3500μA, 1--35W.

Timer Range: 1min~99hr, 59min

V-hr Range: 1~99999V-hr/ Increment 1V-hr

Display:  LCD display with backlight

Output jacks: Two sets of output jacks

Model:JY-ECP3000

Characteristic feature

• Touch keys, dual core microprocessor intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With automatic memory function;

• With standard, timing operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

Specifications

Characteristic feature

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 20--3000V, 1--200mA, 1--200W.

Timer Range: 1min~99hr, 59min

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Model:JY-ECPT3000

Characteristic feature

• Touch keys, dual core microprocessor intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With the temperature control operation, range of temperature is RT+10℃~65℃;

• With automatic memory function;

• With Standard, Timing, Temperature control operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

Specifications

Characteristic feature

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 20--3000V, 1--200mA, 1--200W.

Timer Range: 1min~99hr, 59min

Display:  LCD display with backlight

Output jacks: Four sets of output jacks
