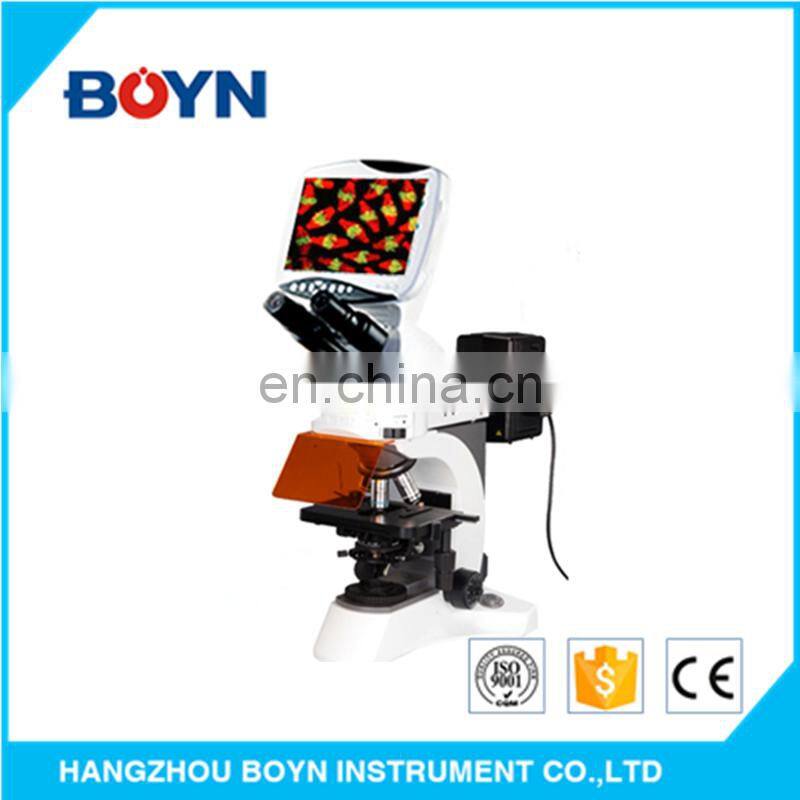

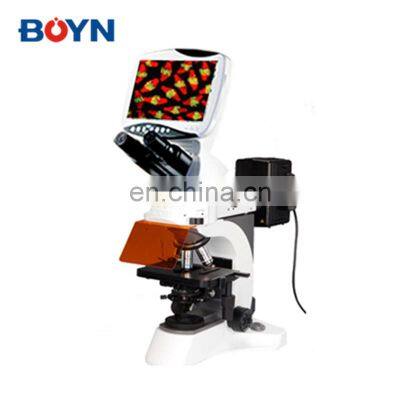

DMS-854 Digital LCD Laboratory microscope biological fluorescence microscope with best price
DMS-854
Features

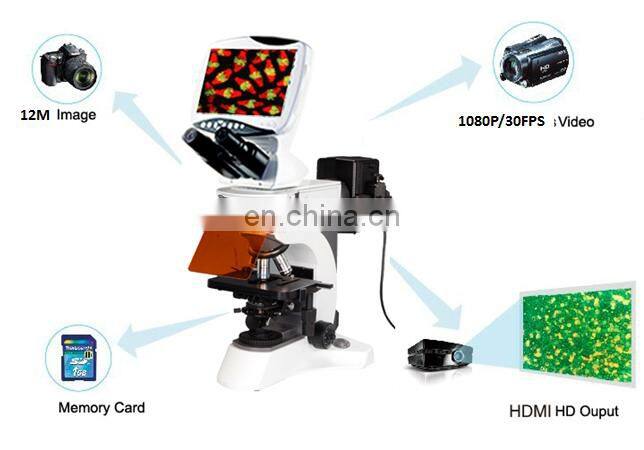

· 9 HD Inches LCD screen and 12 Megapixels professional digital camera.
· 12 megapixels photo and 1080P/30FPS Video of observation results could be stored on SD memory card at anytime.

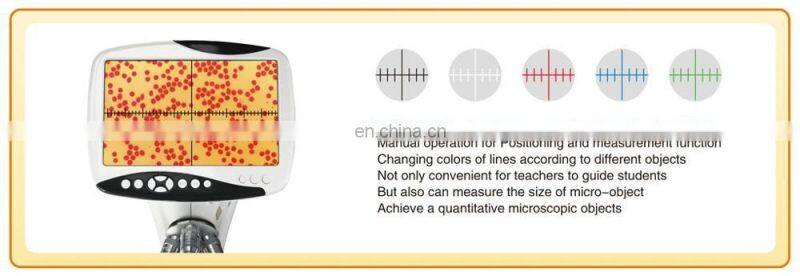

· Our Built –in coordinates allow simple measurement.
· High Definition Multimedia Interface Outputs could be connected to monitor or projector for analysis.
· Excellent quality fluorescent image with high resolution objectives
· Advanced lamp housing to protect the light leaking.
· Innovative standing structure and high quality image display make it convenient for Viewing Incubating Cell Tissue
· It is widely used in venereal disease examination, immune system diagnosis, universities and health care.
Parameters
|
Digital Parts |
Model |
DMS-854 |
|||||
|
Camera |
12 Mega |
||||||
|
Photo Resolution |
2560X1920 |
||||||
|
Video Resolution |
1080P/30FPS |
||||||
|
LCD Screen |
9 HD Inches LCD Screen, Resolution is 1280X 800 |
||||||
|
Data Output |
High Definition Multimedia Interface HD Output/ USB |
||||||
|
Menu Language |
Nine Languages (English,Germany,French,Spanish,Russia,Janpanese,Korean,Latin,Arabic) |
||||||
|
Measurement & Position |
Coordinates and Arrow (Black,White,Red,Green,Blue) |
||||||
|
Storage |
SD Card |
||||||
|
Date Mode |
Year, Month, Day, Hour, Minute |
||||||
|
Optical Parts |
Viewing Head |
Compensation Free Binocular Head,Inclined at 30°,Interpupillary Distance 48-75mm |
|||||
|
Eyepiece |
Extra Wide Field Eyepiece EW10×/22 |
||||||
|
Objective |
Infinite Plan Achromatic Objective 4X/10X/40X/100X |
||||||
|
Nosepiece |
Backward Quintuple Nosepiece |
||||||
|
Condenser |
Swing Condenser NA 0.9/ 0.25 |
||||||
|
Focusing System |
Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm |
||||||
|
Stage |
Double Layers Mechanical Stage 185×142/ 75×55 mm |
||||||
|
Kohler Illumination |
External Illumination, Aspherical Collector, Halogen Lamp6V/ 30W |
||||||
|
Reflected Light Source
|
|
Excitation |
Dichroic Mirror |
Barrier Filter |
|||
|
Blue Excitation |
BP460~490 |
DM500 |
BA520 |
||||
|
Green Excitation |
BP510~550 |
DM570 |
BA590 |
||||
|
Lamp |
100W HBO Ultra Hi-voltage Spherical Mercury Lamp |
||||||
|
Protection Barrier |
Barrier to Resist the Ultraviolet Light |
||||||
|
Power Supplier |
Power Supplier NFP-1,220V/ 110V Interchangeable ,Digital Display |
||||||
|
Immersion Oil |
Fluorescent Free Oil |
||||||
|
Optional Parts |
Objective |
Infinite Plan Achromatic Objective 20× |
|||||
|
Infinite Plan Fluorescent Objective 4×/10×/20×/40×,/100× |
|||||||
|
Reflected Light Source
|
|
Excitation |
Dichroic Mirror |
Barrier Filter |
|||
|
Blue one Excitation |
BP460~495 |
DM505 |
BA510-550 |
||||
|
Ultraviolet Excitation |
BP330~385 |
DM400 |
BA420 |
||||
|
Violet Excitation |
BP400~410 |
DM455 |
BA455 |
||||

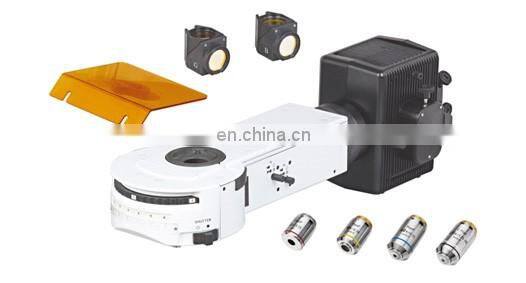

Epi-fluorescent Attachment:
