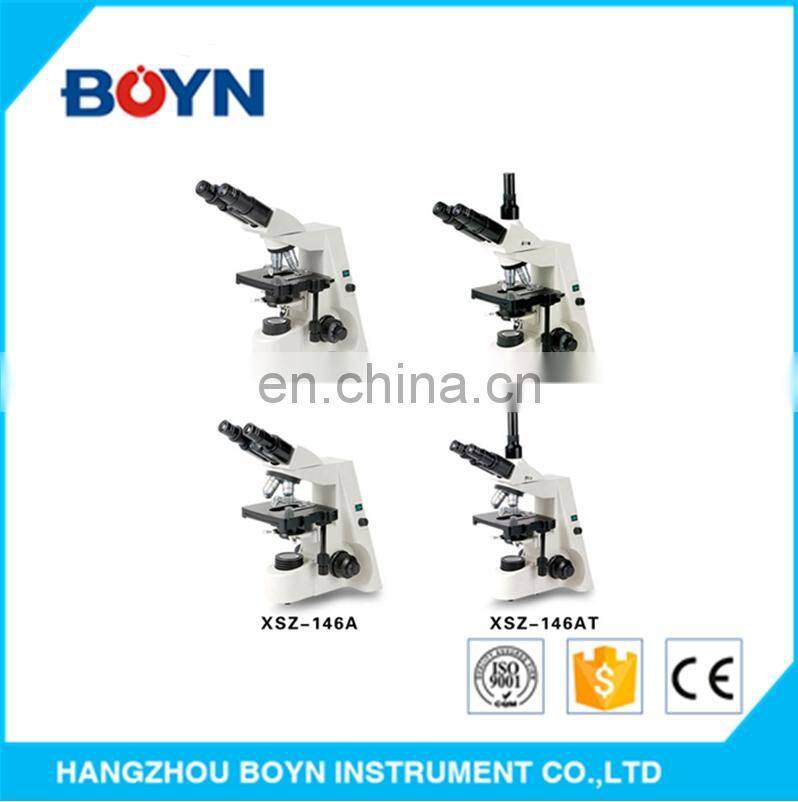

laboratory biological microscope with best price
XSZ-146,146T,146A,146AT
Characteristics:
1. Wide-field Eyepiece, high light illumination and superior optical parts make the image clear, sharp and bright.
2. Backward nosepiece with superior objectives makes the best viewing effect and more space for the operator.
3. Wide mechanical stage with 2-Microslide specimen clamp provides more convenience for the observer.
4. High precision focusing adjustment system and humanized configuration design provide operator more comfortable.
5. Frontal undrawing type Light collector framework, makes the user change the bulb more quickly and easily.
Technical data:
|
Specification |
Model |
||||
|
XSZ-146 |
XSZ-146T |
XSZ-146A |
XSZ-146AT |
||
|
Viewing head |
Compensation Free Binocular Head. Inclined at 30 ° |
· |
· |
||
|
Compensation Free Trinocular Head. Inclined at 30 ° |
· |
· |
|||
|
Interpupillary Distance |
55mm-75mm |
· |
· |
· |
· |
|
Eyepiece |
WF10 X/ 18mm |
· |
· |
||
|
WF10 X/ 22mm |
· |
· |
|||
|
Objective |
Achromatic objective: 4X ,10X ,40X(S),100X(S)Oil |
· |
· | ||
|
Infinity objective: 4X,10X,40X(S), 100X(S)Oil |
· |
· |
|||
|
Stage |
Double layers mechanical stage |
· |
· |
· |
· |
|
Stage size: 180mm × 150mm |
|||||
|
Moving range: 75mm × 50mm |
|||||
|
Condenser |
N.A1.25 Abbe condenser with iris diaphragm & filter |
· |
· |
· |
· |
|
Swing type N.A1.25 Abbe condenser with iris diaphragm & filter |
optional parts |
optional parts |
optional parts |
optional parts |
|
|
Focusing |
Coaxial coarse & fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm |
· |
· |
· |
· |
|
Collector |
High brightness Kohler illumination |
· |
· |
· |
· |
|
Light source |
Halogen tungsten bulb 12V/20W.AC 85V-230V |
· |
· |
· |
· |
|
Adjustable brightness |
|||||
|
Optional Accessory |
Eyepiece:WF16X,WF20X,P16X and 1.3 or 3.0 Mega pixels CMOS electronic eyepieces Plan-Objective:2X,4X,10X,20X,40X(s),60X(s),100X(s) Infinity-plan Objective:2X,4X,10X,20X,40X(s),60X(s),100X(s) Phase Contrast Attachment Simple Polarization Set Photo and CCD attachment |
||||
