Gel Size(W×L): 82×88 mm
Gel thickness: 1.0, 1.5(mm)
Number of Gel: 1~4(pieces)
No. of Samples: 11~60
Sample volume: (1.0mm) 11、15wells
(1.5mm) 11、15wells
Buffer Volume: ~1000(ml)
Dimension(L×W×H): 220×170×120(mm)
Net weight: 2.5(kg)
and multi-casting gel” for option.
The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
With the gel making device of normal position,don’t should to moving the glass plate from the process of making gel to electrophoresis, convenient for observation the gel preparation from the glass on both sides, ensures fast set up times and
leak-free operation.
Safety cover open button design, convenient opening the cover;
With the background color, easy to be observed in the sample adding and electrophoresis process;
Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed

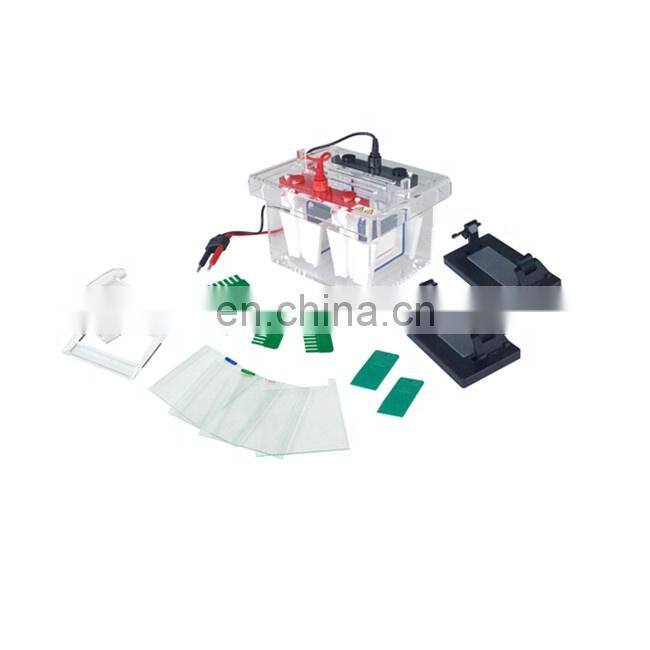

Parts Name | Description | Quantity |
Body tank with electrode | / | 1 |
Gel Casting base | / | 2 |
Notched glass plates | (W×L):100×100(mm) | 6 |
Spacer plates | With 1.0mm spacer | 4 |
With 1.5mm spacer | 4 | |
Comb | 1.0mm thickness,11 wells | 4 |
1.5mm thickness,11 wells | 4 | |
1.0mm thickness,15 wells | 4 | |
1.5mm thickness,15 wells | 4 | |
Gel releaser | / | 4 |
Wedged-shade Plates | / | 4 |
Clamp version | / | 2 |
Dummy plate | / | 3 |
Electrical Cables | / | 1 |
